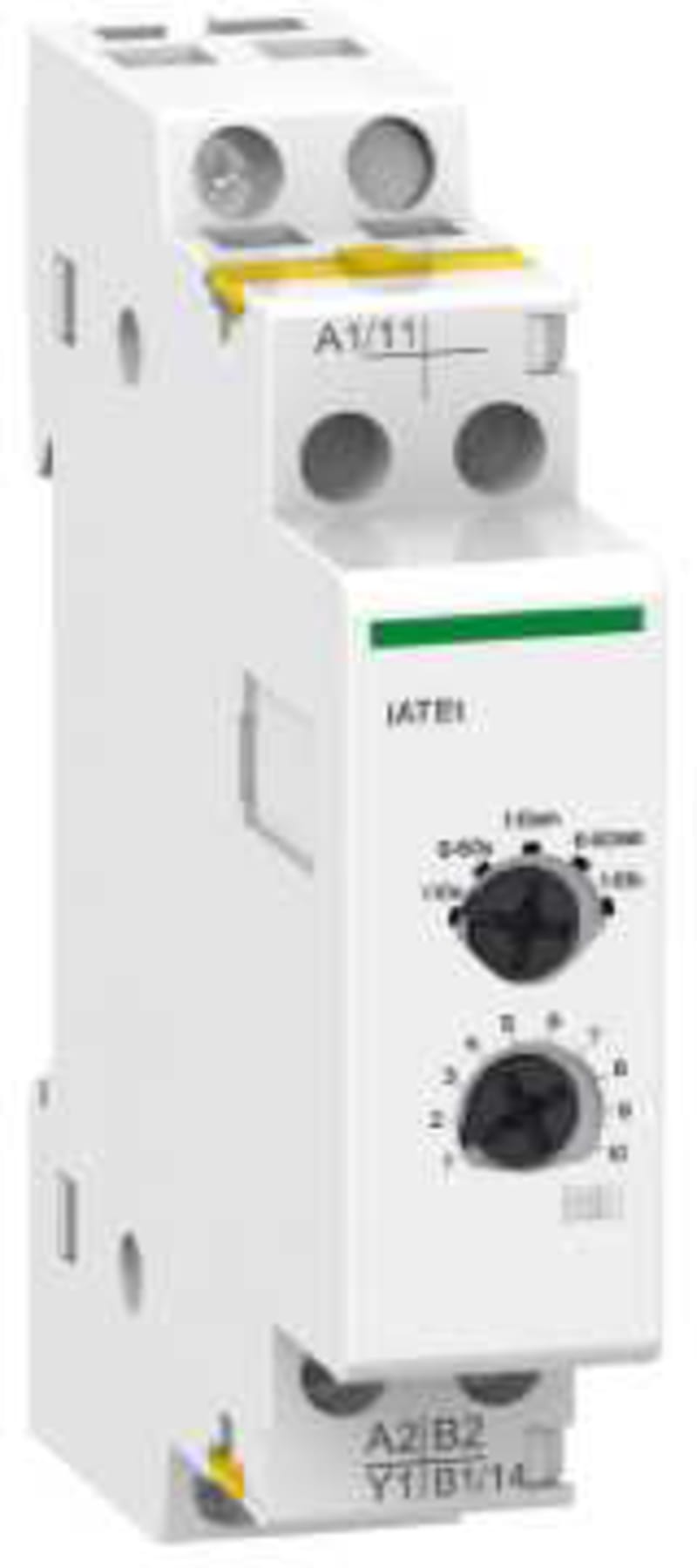

Schneider Electric ACTI9 time delay iATEt A9C15419

Schneider Electric A9C15419 Auxiliary block for iTL impulse relay with additional functions iATet 24-230V AC 1-10t.

Manufacturer part number (MPN)

A9C15419

EAN / GTIN

3606480097911

Sales unit

pcs

Package quantity

108 pcs

Voltage

24-230 V

Range

Acti9

Product or component type

Time delay auxiliary

Device short name

iATEt

[Uc] control circuit voltage

24...110 V DC impulse; 24...240 V AC 50/60 Hz maintained

Type of setting

Time delay configuration

Time delay range

2 s...10 min; 2 s...10 h; 6...60 s; 1...10 s; 6 s...1 h

Maximum output current

0.2 A holding; 3 A inrush

Hold-in power consumption in VA

5 VA

mounting mode

Fixed, on the left of TL or CT

Mounting support

DIN rail

9 mm pitches

2

Height

81 mm

Width

18 mm

Depth

60 mm

Colour

White

Overvoltage category

III

[Uimp] rated impulse withstand voltage

4 kV

[Ui] rated insulation voltage

440 V

Standards

EN/IEC 60669-2-2

Connections - terminals

Output connection: yellow clips ; Input connection: tunnel type terminals 2 cable(s) 2.5 mm² flexible; Input connection: tunnel type terminals 2 cable(s) 1.5 mm² rigid

Wire stripping length

9 mm

Tightening torque

0.8 N.m

Range compatibility

Acti9 iCT; Acti9 iTL

Market segment

Small commercial; Residential

Compatibility code

IATEt

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

40…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

108

Country of origin

FR

Warranty (in months)

18

Type of excitation

Analogue with multi function

Function

Impulse controlled operating delay

2nd interval unit

Seconds/hours

2nd interval

1–36000

Mounting method

DIN rail

Width in number of modular spacings

1

Built-in height

81 mm

Control voltage 1

24–240 V

Type of control voltage 1

AC

Frequency control voltage 1

50–60 Hz

Control voltage 2

24–110 V

Type of control voltage 2

DC

Supply voltage

24–240 V

Voltage type (supply voltage)

AC

HS Code

8536.49
