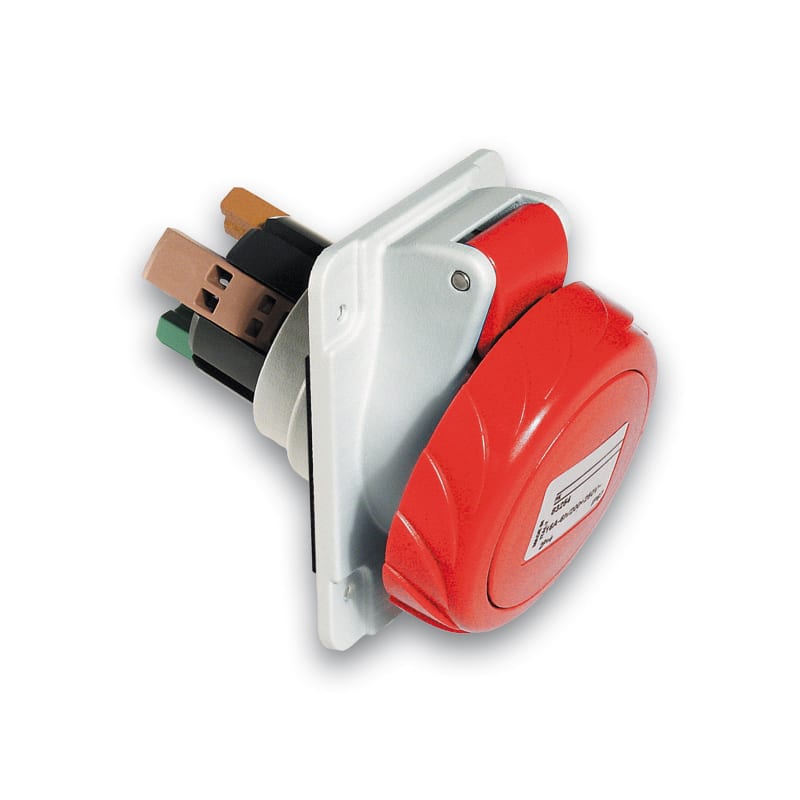

Schneider Electric PratiKa socket - fast - angled - 32A - 3P + N + E - 380...415 V AC - panel PKY32F735
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKY32F735 PratiKa socket outlet - fast - angled - 32A - 3P + N + E - 380.415 V AC - panel.
Technical Specifications
- Manufacturer part number (MPN)
- PKY32F735
- EAN / GTIN
- 3303432011482
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 7 pcs
- IP rating
- IP67
- Rated current
- 32 A
- Range
- Mureva
- Product or component type
- Socket
- Device short name
- Mureva socket
- Plug, socket category
- Low voltage
- Poles description
- 3P + N + E
- Network type
- AC
- Outlet standard
- Industrial
- mounting mode
- Panel-mounted
- Plug, socket, control station shape
- Angled
- [In] rated current
- 32 A
- [Ue] rated operational voltage
- 380...415 V
- Network frequency
- 50/60 Hz
- Ground lug clockwise position
- 6 h
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Sleeves: brass
- Connections - terminals
- Fast connection
- Cable cross section
- 2.5…6 mm²
- Product weight
- 0.295 kg
- Base dimension
- 90 x 100 mm
- Height
- 100 mm
- Width
- 102 mm
- Depth
- 121 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Red
- Standards
- IEC 60309-2; IEC 60309-1
- IP degree of protection
- IP67 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 850 °C conforming to IEC 60695-2-1
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C
- Ambient air temperature for operation
- 35 °C ( 86400 s )
- Country of origin
- IT
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303432011482
- SAP 1200199297
- Code 82174090
Product Documentation
More from Schneider Electric
Schneider Electric
Panelmeter Ø22 green 4..20 mA
XBH1AA0G4
Schneider Electric
Schneider Electric APC Smart-UPS, Line Interactive, 1500VA, Tower, 230V, 8X IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD SMT1500IC
Schneider Electric

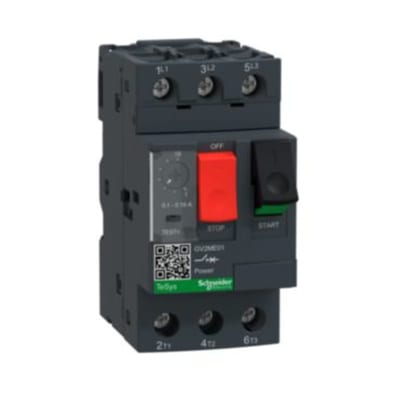

Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 0.1-0.16 A, thermal magnetic, screw clamp terminals GV2ME01
Schneider Electric

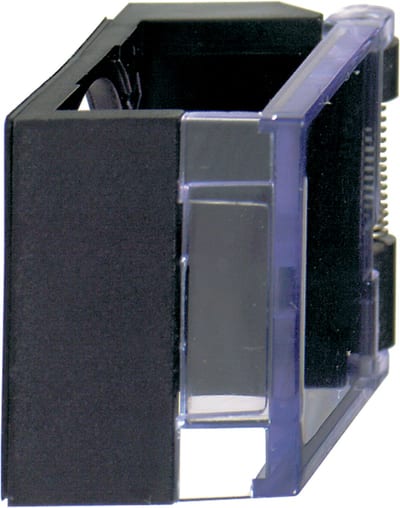

Cover FOR Selector switches AND PUSH-BUTTON.
ZB6YD001
Schneider Electric

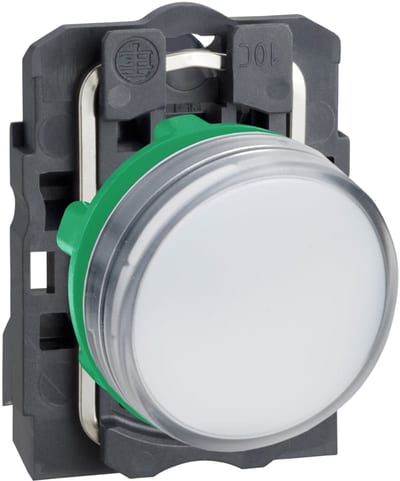

Schneider Electric pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 24V AC DC XB5AVB1
Schneider Electric

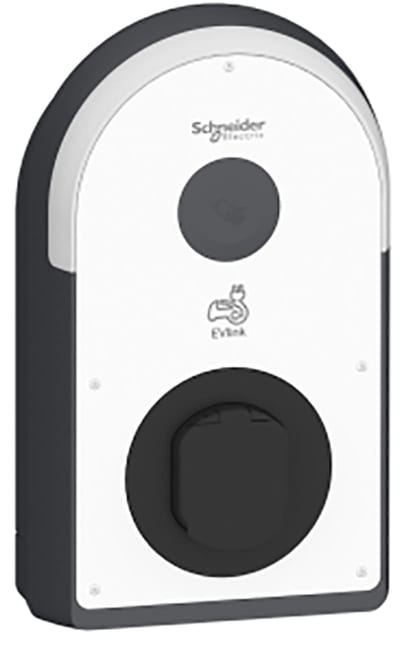

Schneider Electric Charging station, EVlink Pro AC Metal, 22kW, 32A, 3P+N, T2S socket-outlet, RCD B-EV, MNx aux., MID meter EVB3S22N40MR
Schneider Electric

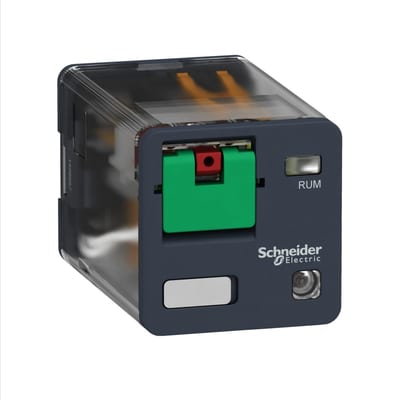

Schneider Electric universal plug-in relay - Harmony RUM - 3 C/O - 230 V AC - 10 A - with LED RUMC32P7
