Panelmeter Ø22 green 4..20 mA

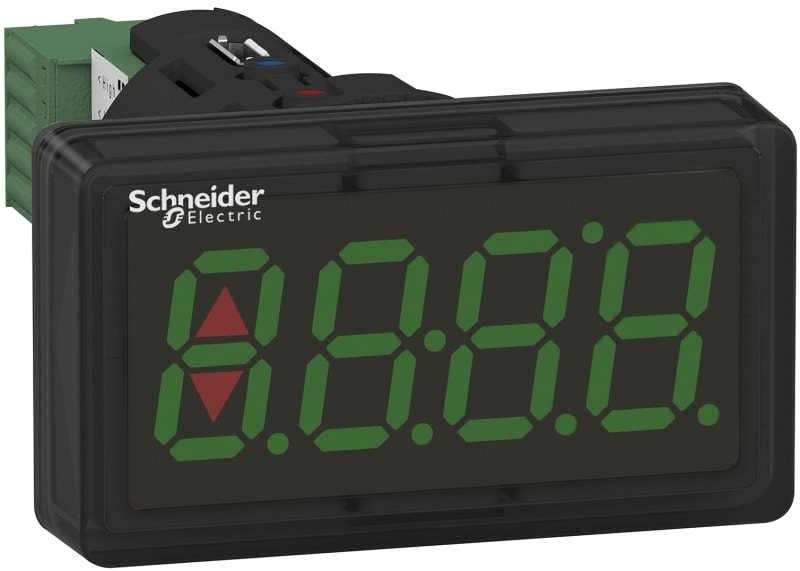

Schneider Electric XBH1AA0G4 Panelmeter for Ø22 mm mounting with display in green colour and 4.20 mA supply.

Manufacturer part number (MPN)

XBH1AA0G4

EAN / GTIN

3606489737214

Sales unit

pcs

Package quantity

62 pcs

Diameter

22 mm

Range of product

Harmony XB5

Product or component type

Display module

Display digits

4 digit(s) - 14 mm in height

Display type

7 segments LED

Display colour

Green

display projection

-999...9999

Accuracy

+/- 0.15 % of the measuring range + 1 digit

Solid state output type

2 x power MOSFET

Discrete output voltage

30 V DC

Discrete output current

0.5 A

Brightness

Fixed

Analogue input range

4...20 mA DC

maximum voltage drop

6 V

Temperature drift

50 ppm/°C

Mounting diameter

22.5 mm

Connections - terminals

Spring terminals,clamping capacity: 1 x 0.2...1 mm² (24 AWG...17 AWG)

Housing material

Plastic

Flame retardance

UL94-V1

Tightening torque

1.3 N.m +/- 0.2 N.m; 11.5 lb.in +/- 1.8 lb.in

Width

51.5 mm

Height

29.5 mm

Depth

78.2 mm

Product weight

0.032 kg

Ambient air temperature for operation

-20…60 °C

Ambient air temperature for storage

-20…85 °C

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

IP degree of protection

IP65 (front panel) conforming to IEC 60529

Standards

IEC 61326-1

Number of Units in Package 1

1

Number of Units in Package 2

62

Country of origin

CZ

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

4–20 V

Voltage type (supply voltage)

DC

Number of HW-interfaces USB

1

With SW interfaces

Yes

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Colour display

Yes

Number of colours of the display

1

Screen diagonal

0.86 inch

With numeric keyboard

No

With alpha numeric keyboard

No

Touch technology

None

With touch screen

No

With message indication

No

With message system (incl. buffer and confirmation)

No

Process value representation (output) possible

Yes

Process default value (input) possible

No

With recipes

No

With printer output

No

Additional software components, loadable

No

Degree of protection (IP), front side

IP65

Suitable for rail mounting

No

Wall mounting/direct mounting

No

Suitable for safety functions

No

Width of the front

51.5 mm

Height of the front

29.5 mm

Built-in depth

78.2 mm

HS Code

8531.80
