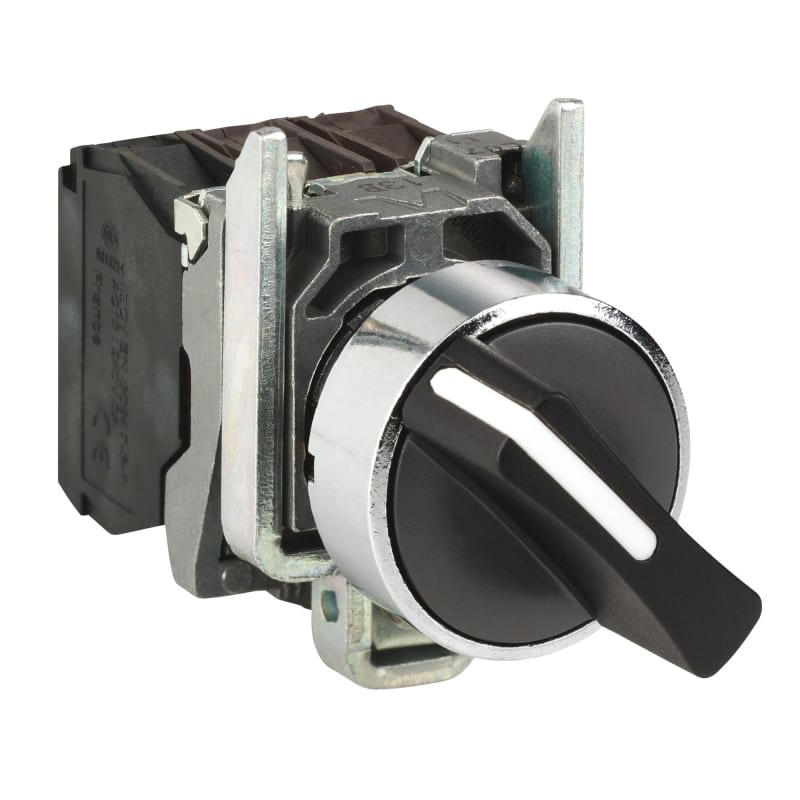

Selector switch 2 pos. Return from h

Schneider Electric XB4BD41 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Selector switch complete with 2 positions with spring return from H for V 1xNO.

Manufacturer part number (MPN)

XB4BD41

EAN / GTIN

3389118124714

Sales unit

pcs

Package quantity

100 pcs

Range of product

Harmony XB4

Product or component type

Selector switch

Device short name

XB4

Bezel material

Chromium plated metal

Fixing collar material

Zamak

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Head type

Standard

Shape of signaling unit head

Round

Type of operator

Right to left spring return

Operator profile

Black standard handle

Operator position information

2 positions 90°

Contacts type and composition

1 NO

Contact operation

Slow-break

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Height

47 mm

Width

30 mm

Depth

68 mm

Terminals description ISO n°1

(13-14)NO

Product weight

0.105 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Contacts usage

Standard contacts

Positive opening

Without

Torque value

0.14 N.m NO changing electrical state

Mechanical durability

1000000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4

Device presentation

Complete product

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP69; IP69K; IP67 conforming to IEC 60529

Enclosure Type

UL type 4X/13

Standards

IEC 60947-1; CSA C22.2 No 14; IEC 60947-5-1; UL 508; IEC 60947-5-4; JIS C8201-5-1; IEC 60947-5-5; JIS C8201-1

Product certifications

DNV; BV; LROS (Lloyds register of shipping); CSA; UL

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.6 cm

Package 1 Width

5.4 cm

Package 1 Length

9 cm

Package 1 Weight

102 g

Unit Type of Package 2

S03

Number of Units in Package 2

100

Package 2 Height

30 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

10.562 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Black

Number of switch positions

2

Suitable for lighting

No

Spring-return

Yes

Colour front ring

Chrome

Type of electric connection

Screw connection

Degree of protection (IP)

IP67

With light source

No

Material front ring

Metal

With front ring

Yes

Type of control element

Short rotary handle

Switching function latching

Yes

Number of contacts as normally open contact

1

HS Code

8536.50
