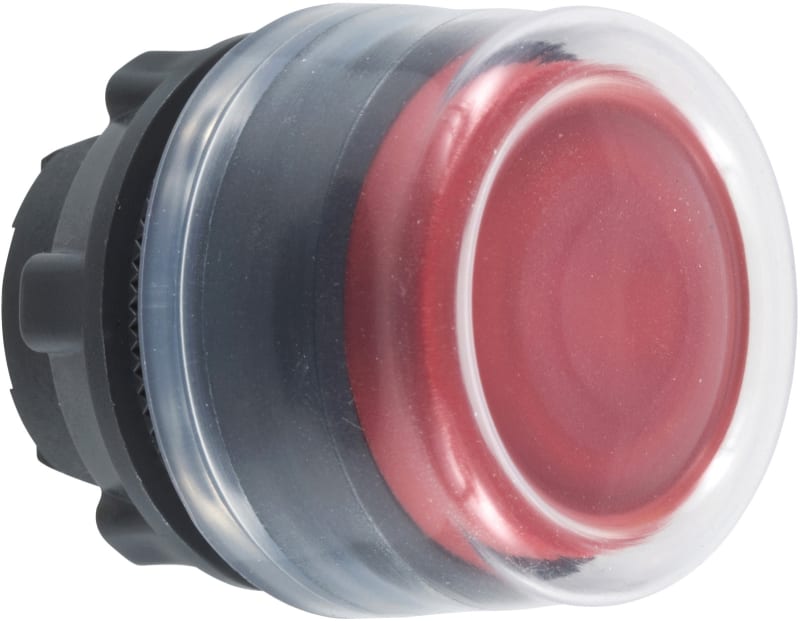

Schneider Electric ZB5AP4 Harmony XB5 Push-Button Head — Ø22 mm, Red, projecting, spring return, non-illuminated, plastic bezel, booted

Schneider Electric ZB5AP4 is a Harmony XB5 Ø22 mm push-button operator head: red, projecting actuator, spring-return (momentary) action, non-illuminated, unmarked, with a chrome-plated plastic fixing collar, fitted with a protective silicone boot. It mounts in a standard Ø22 mm panel cut-out and combines with Harmony ZBE contact blocks and light blocks (ordered separately) to form a complete control unit. Front face rated IP66; ambient −40 to +70 °C. Conforms to IEC/EN 60947-5-1. EAN 3389110906677.

Manufacturer part number (MPN)

ZB5AP4

EAN / GTIN

3389110906677

Product range

Harmony XB5

Type

push-button operator head (contact / light block ordered separately)

Mounting

Ø22 mm panel cut-out

Actuator

Projecting, silicone booted

Operation

spring return (momentary)

Illumination

non-illuminated

Colour

Red

Bezel material

chrome-plated plastic

Marking

unmarked

Degree of protection

IP66 (front face)

Ambient temperature

-40 to +70 °C

Mechanical durability

10 million operating cycles

Conforms to

IEC/EN 60947-5-1

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5

Product or component type

Head for non-illuminated push-button

Device short name

ZB5

Product compatibility

Not compatible with legend holder

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Red projecting, unmarked

Operator additional information

Clear boot

CAD overall width

30 mm

CAD overall height

30 mm

CAD overall depth

35 mm

Product weight

0.014 kg

Station name

XALD 1...5 cut-outs; XALK 2...5 cut-outs

Electrical composition code

C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK03 conforming to IEC 50102

Standards

IEC 60947-5-1; UL 508; IEC 60947-1; IEC 60947-5-4; CSA C22.2 No 14; JIS C8201-5-1; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Country of origin

FR

Warranty (in months)

18

Standard

IEC 60947-5-1

HS Code

8538.90

• EAN 3389110906677
• SAP 1000052497
• Code 8818145
