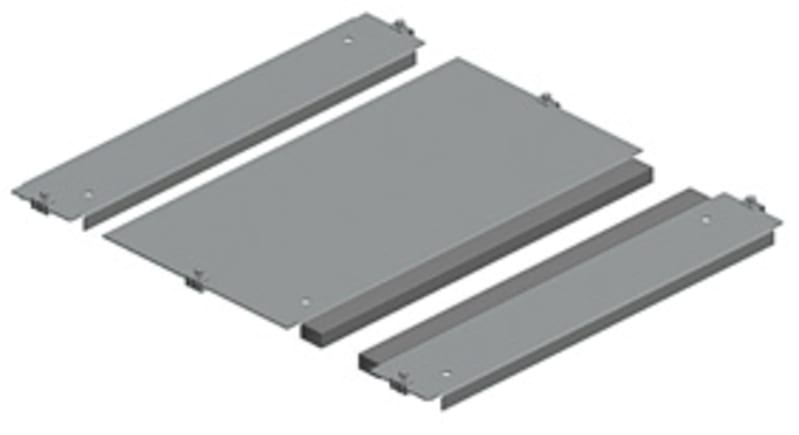

Schneider Electric NSYEC841 One entry cable gland plate, PanelSeT SFN, PanelSet SF, for electrical enclosure W800 D400MM, fixed by clips
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYEC841 One entry cable gland plate, PanelSeT SFN, PanelSet SF, for electrical enclosure W800 D400MM, fixed by clips is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Range: PanelSeT; Product or component type: Cable gland plate; Application: Multi-purpose; Range compatibility: PanelSeT SF; Mounting location: Enclosure bottom.
Technical Specifications
- Manufacturer part number (MPN)
- NSYEC841
- EAN / GTIN
- 3606485126289
- Sales unit
- pcs
- Range
- PanelSeT
- Product or component type
- Cable gland plate
- Accessory / separate part category
- Cable management accessory
- Application
- Multi-purpose
- Range compatibility
- PanelSeT SF
- Mounting location
- Enclosure bottom
- Cable gland type
- Standard
- Cable entry
- 1 entry
- Device composition
- fixing elements; 1 plate; self extinguishing polyurethane adhesive gasket with cross-section of 15 x 25 mm
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Height
- 30 mm
- Width
- Nominal: 800 mm; Useful: 616 mm; Real: 650 mm
- Depth
- Nominal : 400 mm
- thickness
- 1.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 15.000 cm
- Package 1 Length
- 65.500 cm
- Package 1 Weight
- 2.900 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 75
- Package 2 Height
- 68.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 232.500 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Surface protection
- Galvanised
- Pre-stamping
- Yes
- Type
- Straight
- Thread type
- None
Standards & Compliance
- HS Code
- 7326.19
Cross References
- EAN 3606485126289
- SAP 1000089128
- Code 8913613
Product Documentation
