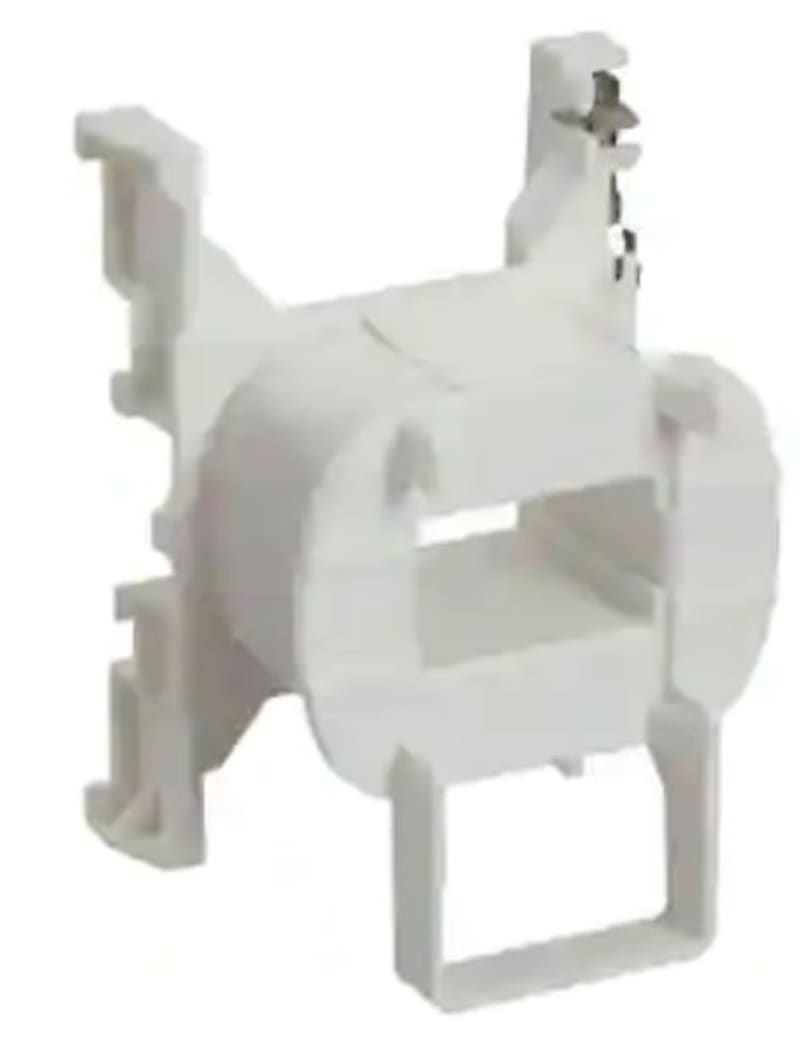

Coil D-Contactor 110V 50/60Hz

Schneider Electric LXD1F7 coil D-Contactor 110V 50/60HZ.

Manufacturer part number (MPN)

LXD1F7

EAN / GTIN

3389110467734

HS code

8536.90

Sales unit

pcs

Package quantity

100 pcs

Voltage

110 V

Frequency

50/60 Hz

Range

TeSys

Product or component type

Contactor coil

Device short name

LXD1

Control circuit type

AC at 50/60 Hz

[Uc] control circuit voltage

110 V AC 50/60 Hz

Average resistance

124.1 Ohm at 20 °C

Inductance of closed circuit

4.6 H

Product compatibility

LC1DT20...DT40; LC1D09...D38; CAD

Mechanical durability

15 Mcycles

Maximum operating rate

3600 cyc/h 60 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C); Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C); Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)

Inrush power in VA

70 VA 60 Hz cos phi 0.75 (at 20 °C); 70 VA 50 Hz cos phi 0.75 (at 20 °C)

Hold-in power consumption in VA

7.5 VA 60 Hz cos phi 0.3 (at 20 °C); 7 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

2…3 W at 50/60 Hz

Ambient air temperature for operation

-5…60 °C

Product weight

0.07 kg

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90

• EAN 3389110467734
• SAP 1000012527
• Code 8482078
