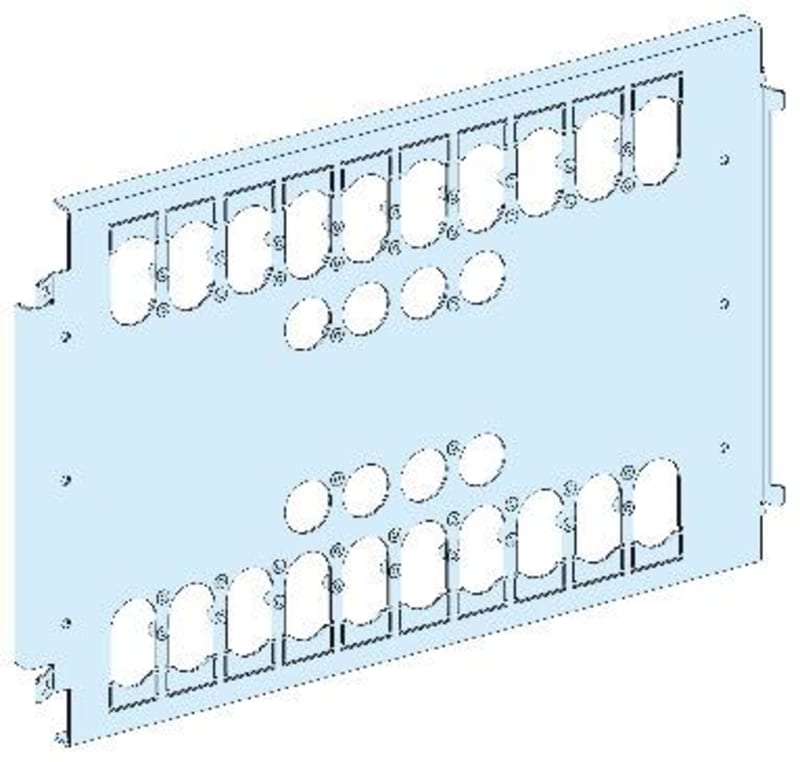

Schneider Electric LVS03422 M.PL.3-4V.FIXED NS250 DEVICES
Part numberLVS03422EAN / GTIN3606481874337HS code7326.90
Enclosures
Mounting Plates
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric LVS03422 M.PL.3-4V.FIXED NS250 DEVICES is listed under Enclosures / Mounting Plates. Sales unit: pcs; Range: PrismaSeT; Range of product: PrismaSeT P; Product or component type: Mounting plate; Range compatibility: PrismaSeT PrismaSeT P cubicle; installation description: Cubicle - width 650 mm depth 400 mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03422
- EAN / GTIN
- 3606481874337
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 mm depth 400 mm
- Installed device
- EasyPact: fixed CVS100...160 without earth leakage protection - control: direct front rotary handle - vertical installation; EasyPact: fixed CVS250 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation; EasyPact: fixed CVS100...160 with earth leakage protection - control: direct front rotary handle - vertical installation; EasyPact: fixed CVS250 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX250 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX100...160 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX250 with earth leakage protection - control: motor mechanism - vertical installation
- Poles description
- 4 x 3P: fixed CVS100...160 vertical installation; 3 x 4P: fixed CVS100...160 vertical installation; 4 x 3P: fixed CVS250 vertical installation; 3 x 4P: fixed CVS250 vertical installation; 4 x 3P: fixed NSX100...160 vertical installation; 3 x 4P: fixed NSX100...160 vertical installation; 4 x 3P: fixed NSX250 vertical installation; 3 x 4P: fixed NSX250 vertical installation
- Number of vertical modules [50 mm]
- 9 module(s): CVS100...160 without earth leakage protection , direct in 650 mm Widecubicle; 9 module(s): CVS250 without earth leakage protection , direct in 650 mm Widecubicle; 6 module(s): NSX100...160 without earth leakage protection , Linergy FC in 650 mm Widecubicle; 8 module(s): NSX100...160 without earth leakage protection , direct in 650 mm Widecubicle; 7 module(s): NSX250 without earth leakage protection , Linergy FC in 650 mm Widecubicle; 9 module(s): NSX250 without earth leakage protection , direct in 650 mm Widecubicle; 11 module(s): CVS100...160 with earth leakage protection , direct in 650 mm Widecubicle; 11 module(s): CVS250 with earth leakage protection , direct in 650 mm Widecubicle; 8 module(s): NSX100...160 with earth leakage protection , Linergy FC in 650 mm Widecubicle; 10 module(s): NSX100...160 with earth leakage protection , direct in 650 mm Widecubicle; 9 module(s): NSX250 with earth leakage protection , Linergy FC in 650 mm Widecubicle; 11 module(s): NSX250 with earth leakage protection , direct in 650 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 606 mm
- Height
- 147 mm
- Depth
- 372 mm
- Product weight
- 2.28 kg
- Functional unit
- 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 without fixed direct front rotary handle vertical 3P 4 direct 9 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 without fixed direct front rotary handle vertical 4P 3 direct 9 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 without fixed direct front rotary handle vertical 3P 4 direct 9 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 without fixed direct front rotary handle vertical 4P 3 direct 9 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed direct front rotary handle vertical 3P 4 Linergy FC 6 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed motor mechanism vertical 3P 4 Linergy FC 6 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed direct front rotary handle vertical 4P 3 Linergy FC 6 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed motor mechanism vertical 4P 3 Linergy FC 6 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed direct front rotary handle vertical 3P 4 direct 8 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed direct front rotary handle vertical 4P 3 direct 8 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed motor mechanism vertical 3P 4 direct 8 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed motor mechanism vertical 4P 3 direct 8 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed direct front rotary handle vertical 3P 4 Linergy FC 7 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed motor mechanism vertical 3P 4 Linergy FC 7 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed direct front rotary handle vertical 4P 3 Linergy FC 7 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed motor mechanism vertical 4P 3 Linergy FC 7 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed direct front rotary handle vertical 3P 4 direct 9 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed direct front rotary handle vertical 4P 3 direct 9 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed motor mechanism vertical 3P 4 direct 9 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed motor mechanism vertical 4P 3 direct 9 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed motor mechanism vertical 4P 3 Linergy FC 8 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed direct front rotary handle vertical 3P 4 direct 10 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed direct front rotary handle vertical 4P 3 direct 10 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed motor mechanism vertical 3P 4 direct 10 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed motor mechanism vertical 4P 3 direct 10 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed direct front rotary handle vertical 3P 4 Linergy FC 9 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed motor mechanism vertical 3P 4 Linergy FC 9 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed direct front rotary handle vertical 4P 3 Linergy FC 9 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed motor mechanism vertical 4P 3 Linergy FC 9 62.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed direct front rotary handle vertical 3P 4 direct 11 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed direct front rotary handle vertical 4P 3 direct 11 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed motor mechanism vertical 3P 4 direct 11 162.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed motor mechanism vertical 4P 3 direct 11 162.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.500 cm
- Package 1 Width
- 14.600 cm
- Package 1 Length
- 58.000 cm
- Package 1 Weight
- 2.405 kg
- Unit Type of Package 2
- X12
- Number of Units in Package 2
- 40
- Package 2 Height
- 45.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 112.880 kg
- Country of origin
- IT
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481874337
- SAP 1200546675
- Code 82880583
