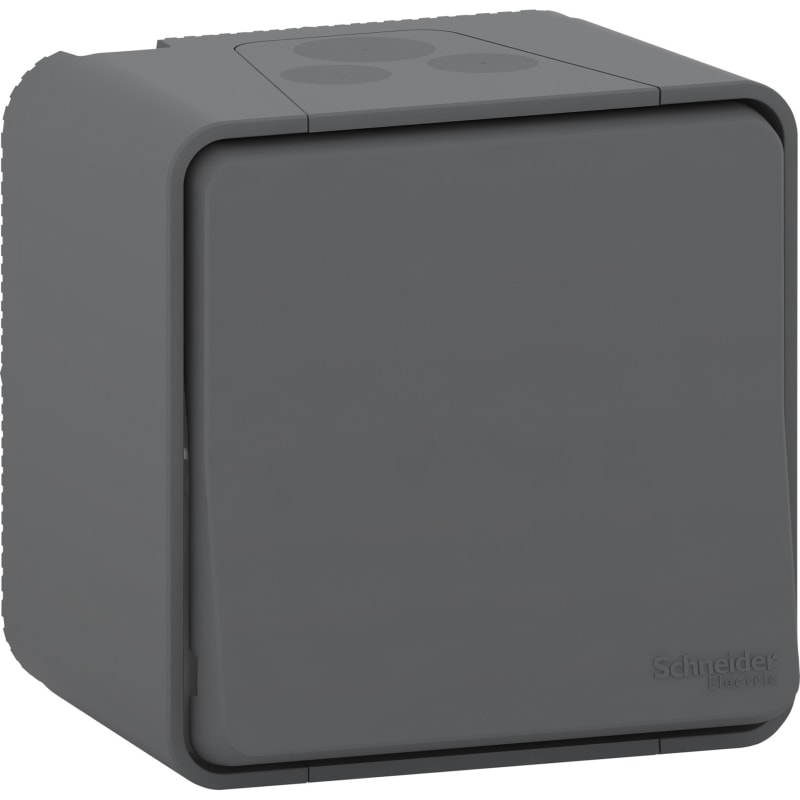

Schneider Electric Mureva Styl Surface Switch, 1-Pole 2-Way, 10 AX, IP55, Anthracite
Pricing
Request a quote
We reply within 24 hours
Product Description
Complete surface-mounted electromechanical switch in the Mureva Styl range, wired as 1-pole 2-way at 10 AX, 250 V. Rated IP55 and IK08 for damp indoor and sheltered outdoor use, with cable-gland entries accepting 6–20 mm cable and screwless terminals for 1.5–2.5 mm² conductors. Anthracite RAL 7016 rocker actuator on a matt housing of brass, ABS and SEBS.
Technical Specifications
- Manufacturer part number (MPN)
- MUR35021
- EAN / GTIN
- 3606480789076
- HS code
- 8536.90
- Sales unit
- pcs
- Range
- Mureva Styl
- Range of product
- Mureva Styl
- Product or component type
- Switch
- Colour tint
- Anthracite (RAL 7016)
- Device presentation
- Complete product
- Device mounting
- Surface
- surface treatment
- Untreated
- Surface finish
- Matt
- Switch function
- 1-pole 2-way
- [Ue] rated operational voltage
- 250 V
- Rated current
- 10 AX
- Technology type
- Electromechanical
- fixing mode
- By screws
- Load type
- Load for energy saving lamps with ballast: 100 W
- Number of rocker
- 1
- Actuator
- Rocker
- Cable entry
- Easy valve access diameter: 6…20 mm
- Clamping connection capacity
- 1.5...2.5 mm² for rigid cable(s); 1.5...2.5 mm² for stranded cable(s); 1.5...2.5 mm² for flexible cable(s)
- Connections - terminals
- Screwless terminals
- Width
- 76 mm
- Height
- 76 mm
- Depth
- 64 mm
- Projecting depth
- 64 mm
- Material
- Brass; ABS (acrylonitrile butadiene-styrene); SEBS
- Condition of use
- Indoor/outdoor
- Wire stripping length
- 13 mm
- Chemical and detergent products resistance
- Resistant to alcohol (70 %); Resistant to alcohol (96 %); Resistant to A-Lactic Acid; Resistant to diluted quaternary ammonium; Resistant to diluted bleach; Resistant to diluted ammonia; Resistant to soapy water; Resistant to crystal cleaner; Resistant to hydrogen peroxide 10 volumes; Resistant to hexane
- Quality labels
- NF; CE; AENOR; EAC
- IP degree of protection
- IP55
- IK degree of protection
- IK08
- Flame retardance
- Self-extinguishing 650 °C conforming to IEC 60695-2-1
- Standards
- EN 60669-1
- Ambient air temperature for operation
- -5…40 °C
- Ambient air temperature for storage
- -25…55 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 60
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480789076
- SAP 1200200566
- Code 82136450
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric NSYEC841 One entry cable gland plate, PanelSeT SFN, PanelSet SF, for electrical enclosure W800 D400MM, fixed by clips
Schneider Electric
Schneider Electric NSYSMPSE8 Side entry rails for the mounting plate, PanelSeT SFN, PanelSet SF, W800MM, set of 2
Schneider Electric

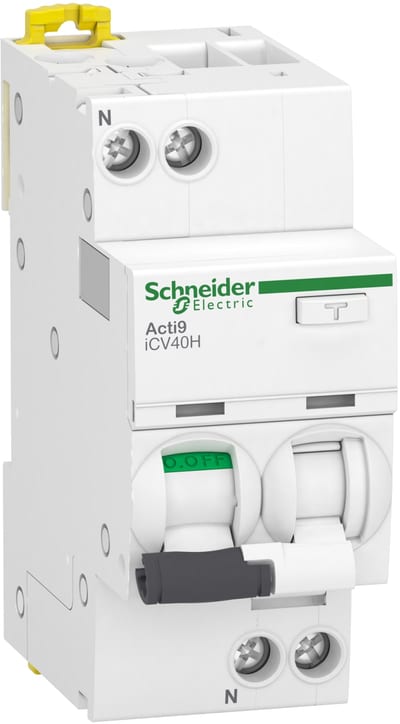

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40H, 1P+N, 16A, C curve, 10000A, A type, 30MA A9DC4616
Schneider Electric

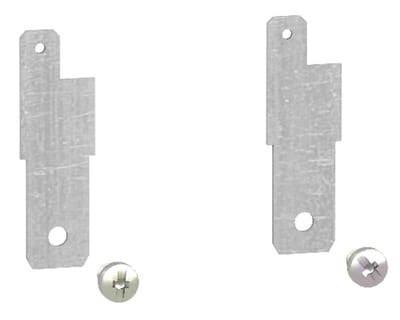

Schneider Electric LV429348 — Voltage Tap for Aluminium Connectors, 6.35 mm, 1 or 2 cables (set of 10)
Schneider Electric

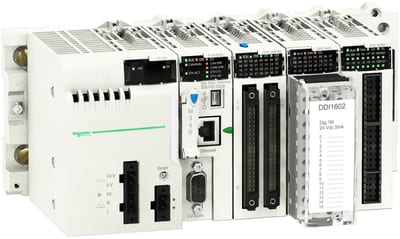

Schneider Electric power supply module X80 - 100..240 V AC - 20 W BMXCPS2000
Schneider Electric

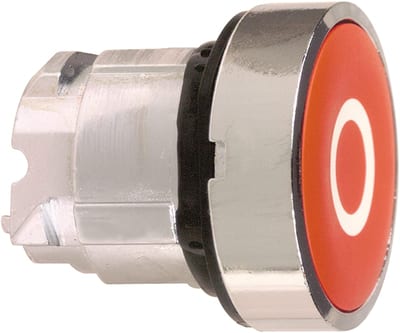

Schneider Electric ZB4BA432 red flush pushbutton head Ø22 spring return "O
Schneider Electric

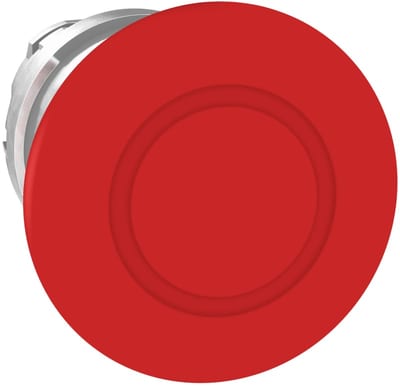

Emergency Stop Head PUSH/PULL RED Ø40
ZB4BT84
Schneider Electric

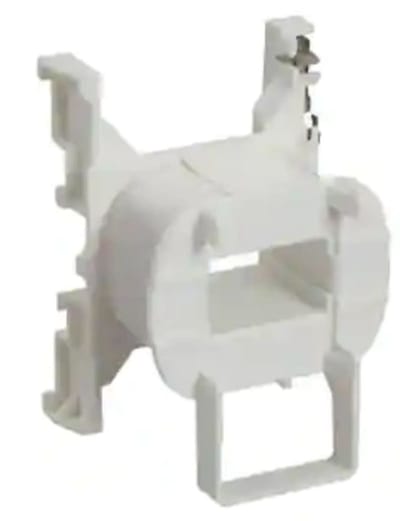

Coil D-Contactor 110V 50/60Hz
