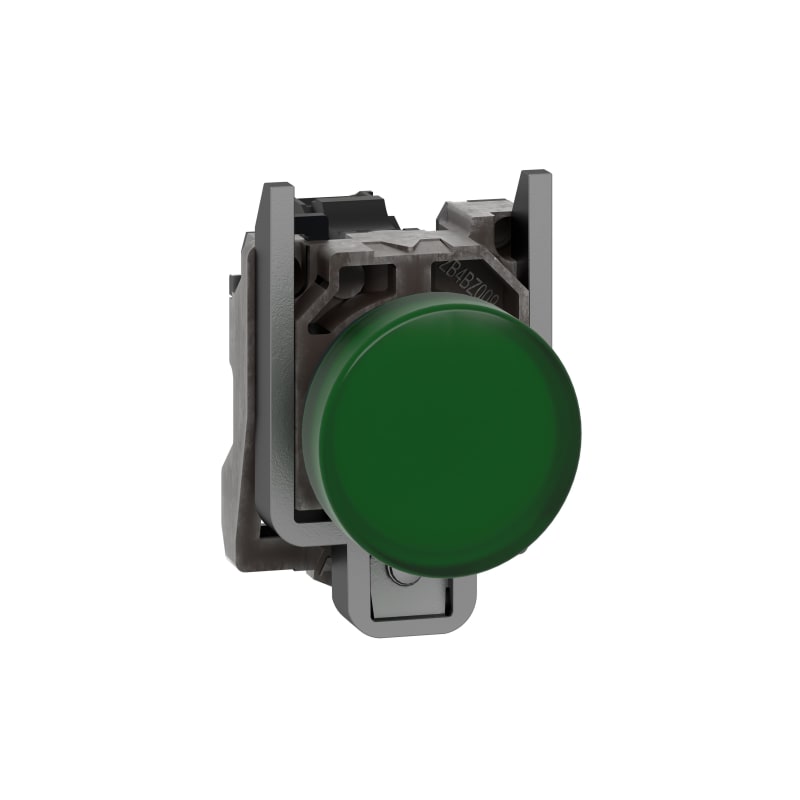

Schneider Electric Pilot light, Harmony XB4,metal, green, 22mm, universal LED, plain lens, 230...240V AC XB4BVM3
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XB4BVM3 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Indicator lamp Green 230VAC LED.
Technical Specifications
- Manufacturer part number (MPN)
- XB4BVM3
- EAN / GTIN
- 3389110892000
- HS code
- 8539.52
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Voltage
- 230/240 V
- Range of product
- Harmony XB4
- Product or component type
- Pilot light
- Device short name
- XB4
- Bezel material
- Chromium plated metal
- Fixing collar material
- Zamak
- Mounting diameter
- 22.5 mm
- Head type
- Standard
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Cap/operator or lens colour
- Green
- Operator additional information
- With plain lens
- Light source
- Universal LED
- Bulb base
- Integral LED
- Light source colour
- Green
- [Us] rated supply voltage
- 230...240 V AC 50/60 Hz
- Height
- 47 mm
- Width
- 30 mm
- Depth
- 54 mm
- Terminals description ISO n°1
- (X1-X2)PL
- Product weight
- 0.08 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Connections - terminals
- Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1
- [Ui] rated insulation voltage
- 250 V (pollution degree 3) conforming to IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 4 kV conforming to IEC 60947-1
- Signalling type
- Steady
- Current consumption
- 14 mA
- Service life
- 100000 h at rated voltage and 25 °C
- Surge withstand
- 1 kV conforming to IEC 61000-4-5
- Device presentation
- Complete product
- Supply voltage limits
- 195…264 V AC
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Electrical shock protection class
- Class I conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529; IP67; IP69; IP69K
- Enclosure Type
- UL type 4X/13
- IK degree of protection
- IK06 conforming to IEC 50102
- Standards
- JIS C8201-5-1; CSA C22.2 No 14; IEC 60947-5-5; IEC 60947-5-1; UL 508; IEC 60947-5-4; IEC 60947-1; JIS C8201-1
- Product certifications
- CSA; UL listed
- Vibration resistance
- 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Resistance to fast transients
- 2 kV conforming to IEC 61000-4-4
- Resistance to electromagnetic fields
- 10 V/m conforming to IEC 61000-4-3
- Resistance to electrostatic discharge
- 6 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
- Electromagnetic emission
- Class B conforming to IEC 55011
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8539.52
Cross References
- EAN 3389110892000
- SAP 1000027588
- Code 8217376
Product Documentation
