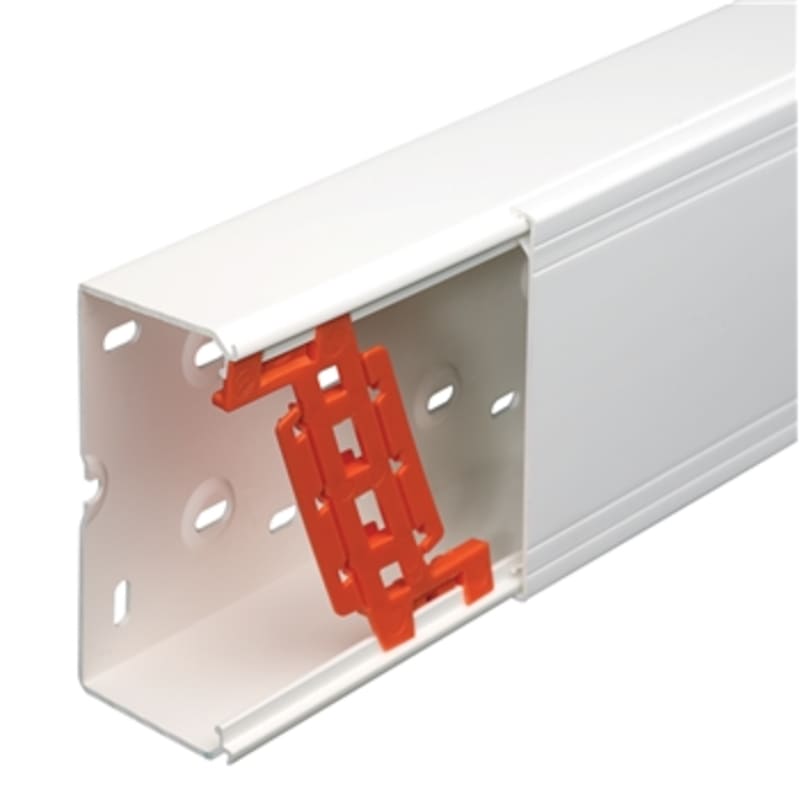

TIR+ Wall Trunking 60x40 mm, 2.5 m, PVC, Polar White
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 5428000 TIR+ wall trunking T6040KL 60x40 mm, L=2.5 m, PVC, polar white RAL 9010.
Technical Specifications
- Manufacturer part number (MPN)
- 5428000
- EAN / GTIN
- 7315885428003
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Width
- 60 mm
- Depth
- 40 mm
- Length
- 2500 mm
- Number of covers
- 1
- Covers included
- Yes
- Cover width 1
- 60 mm
- Symmetric
- Yes
- Construction type rectangular
- Yes
- Material
- Plastic
- Material quality
- Polyvinyl chloride (PVC)
- Halogen free
- No
- Anti-bacterial treatment
- No
- Surface protection
- Untreated
- Colour
- White
- RAL-number
- 9010
- Construction rear wall (inner side)
- Perforated
- With protective foil
- No
- Number of plug-in partitions
- 1
- With duct connector
- No
- Bottom perforation
- Yes
- Mounting method cover
- Spanned
- With cable fixing clip
- Yes
- Usable cross section
- 2400 mm²
- Degree of protection (IP)
- IP40
- Impact strength
- IK07
- Operating temperature
- -5–60 °C
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 7315885428003
- SAP 1000002652
- Code 821721
