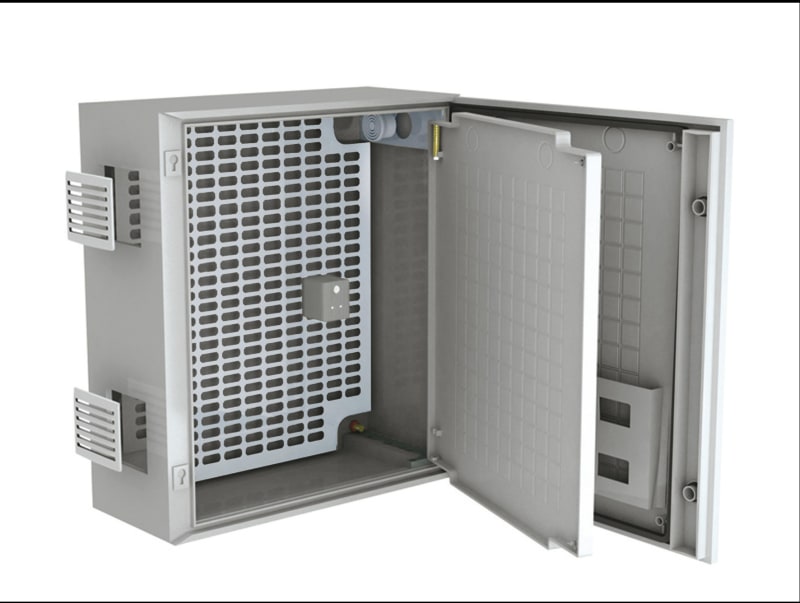

Schneider Electric wall-mounting enclosure polyester monobloc IP66 H747XW536XD300MM NSYPLM75G
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLM75G THALASSA 745X535X300.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLM75G
- EAN / GTIN
- 3606480776694
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Dimensions
- 745×535×300
- Range
- PanelSeT
- Device short name
- PLM
- Enclosure type
- Multi-purpose
- Category
- Compact enclosure
- Nominal height
- 747 mm
- Nominal width
- 536 mm
- Nominal depth
- 300 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 door; 2 lock
- Door type
- Plain
- Lock type
- 3 mm double-bar lock
- Number of locks
- 2
- Mounting plate description
- Without mounting plate
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; NEMA classification 13; NEMA classification 4X
- Product certifications
- UL
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for operation
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 536 mm
- Height
- 747 mm
- Depth
- 300 mm
- RAL-number
- 7035
- Number of doors
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 706 N
- Max. permitted load of the door(s) according to IEC 62208
- 143 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480776694
- SAP 1000752640
- Code 8487643
Product Documentation
More from Schneider Electric
Schneider Electric

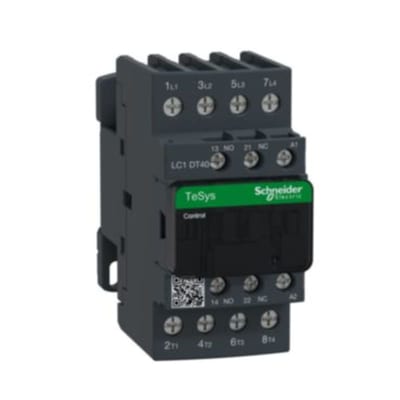

Schneider Electric Contactor, TeSys Deca, 4P(4 NO), AC-1, <=440V, 40A, 230V AC 50/60Hz coil, screw clamp terminal LC1DT40P7
Schneider Electric

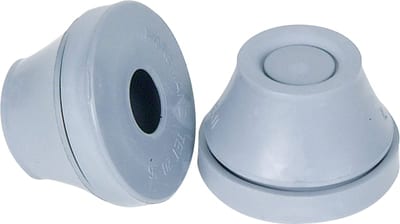

Schneider Electric Grommet, Thorsman TET, diameter 26 to 35, grey IMT37317
Schneider Electric

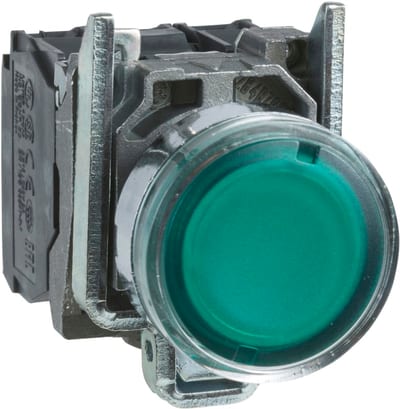

Schneider Electric Illuminated push button, Harmony XB4, metal, green flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC XB4BW33B5
Schneider Electric

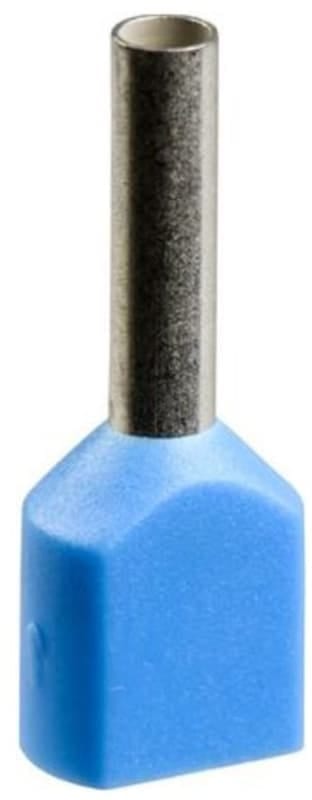

Schneider Electric insulated double cable end medium size 0.75 mm² blue AZ5DE007
Schneider Electric

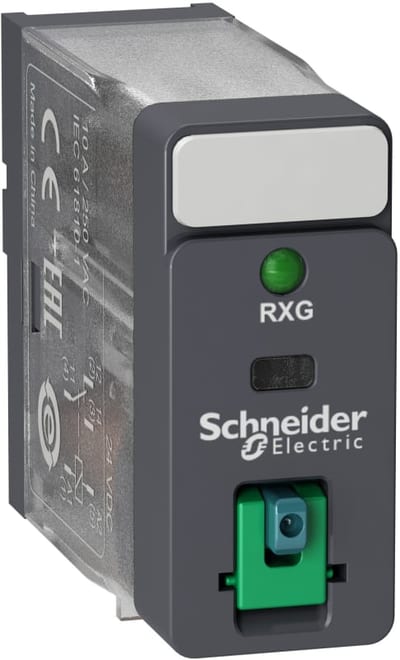

Schneider Electric Interface plug-in relay, 10 A, 1 CO, lockable test button, LED, 24 V DC RXG12BD
Schneider Electric

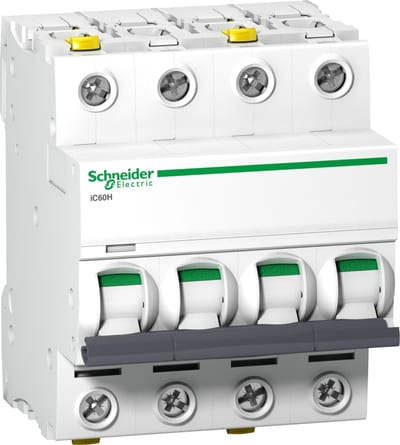

Schneider Electric A9F07425 ACTI9 IC60H Miniature Circuit Breaker 4P 25 A, Curve C
Schneider Electric
Schneider Electric Actassi KDB - Wall-Mounted KD Box 15U D600 F 19" Glazed NSYKDB15U6F
Schneider Electric

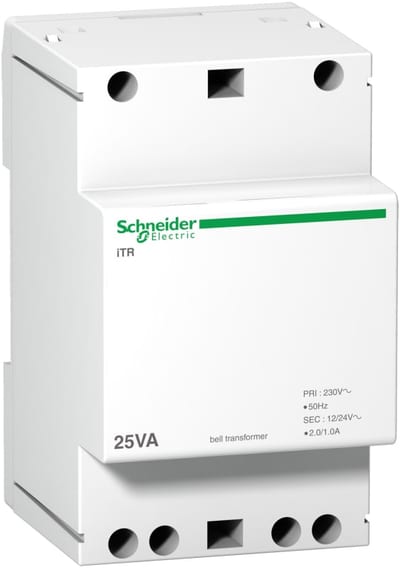

Schneider Electric ACTI9 modular bell transfomer iTR - 230 V 50 Hz - output 12..24 V - 25 VA A9A15215
