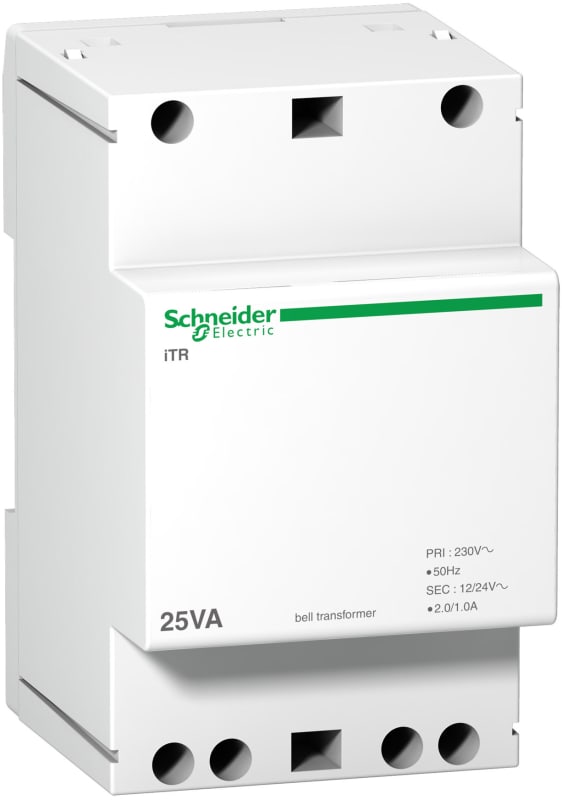

Schneider Electric ACTI9 modular bell transfomer iTR - 230 V 50 Hz - output 12..24 V - 25 VA A9A15215

Schneider Electric A9A15215 Bell Transformer iTR 25Va 12-24V.

Manufacturer part number (MPN)

A9A15215

EAN / GTIN

3606480097874

Sales unit

pcs

Package quantity

14 pcs

Voltage

12-24 V

range of product

Acti9

Product name

Acti9 iTR

Product or component type

Transformer

Device short name

iTR

Transformer type

Bell transformer

[Ue] rated operational voltage

230 V AC 50 Hz

Output voltage

12/24 V: +/- 15 % on load; 16/32 V: off load

Output short-circuit protection

Built-in

rated power in VA

25 VA

mounting mode

Fixed

Mounting support

35 mm symmetrical DIN rail

9 mm pitches

6

Height

89 mm

Width

54 mm

Depth

60 mm

Colour

White

Auxiliary connection terminal

Tunnel type terminalsrigid 2.5 mm²; Tunnel type terminalsflexible 2.5 mm²; Tunnel type terminalsflexible with ferrule 2.5 mm²

Wire stripping length

5 mm

Tightening torque

0.5 N.m

Standards

EN 60742; EN 61558-2-6; IEC 61558-2-6

Product certifications

NF

IP degree of protection

IP20 conforming to IEC 60529

Overvoltage category

Class II with terminal shields in option

Ambient air temperature for operation

-20…55 °C

Ambient air temperature for storage

-25…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

14

Warranty (in months)

18

Type of transformer

Standard bell ringing transformer

With on/off switch

No

Length

60 mm

Width in number of modular spacings

3

Surface mounting

No

Short-circuit protected

Yes

Primary voltage

230 V

Secondary voltage 1

12 V

Secondary voltage 2

24 V

Secondary amperage 1

2 A

Secondary amperage 2

1 A

Temperature protection

Yes

Max. power loss

2 W

Flush-mounted installation

No

Country of origin

Germany

HS Code

8504.31

• EAN 3606480097874
• SAP 1000327044
• Code 81164909
