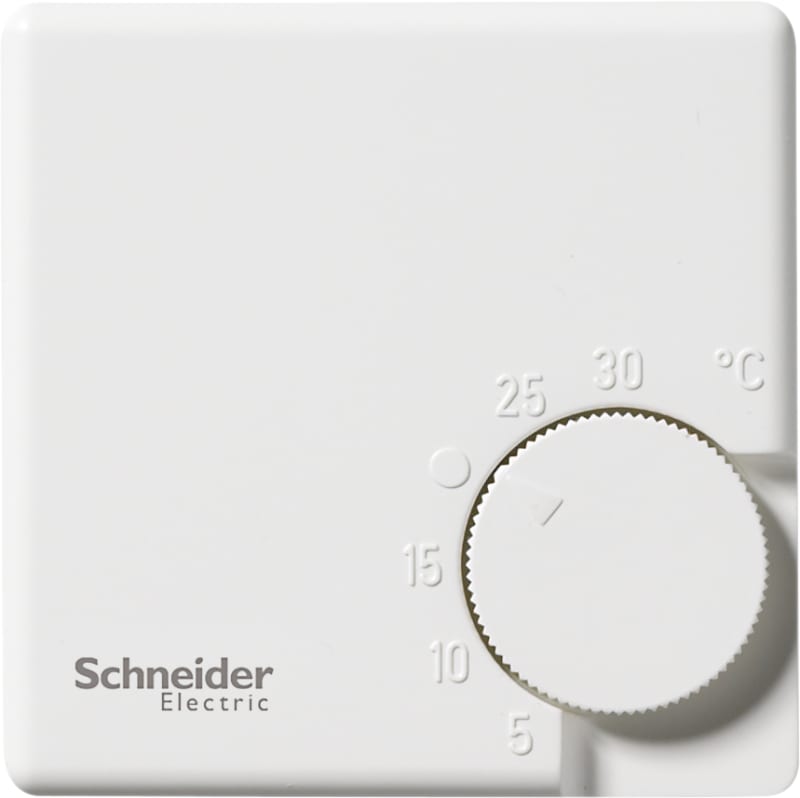

Thermostat OMV.FUNK. +5/+30C
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 101100151102 Romterm.Rtr-E 3551 5-30 Omv.
Technical Specifications
- Manufacturer part number (MPN)
- 101100151102
- EAN / GTIN
- 4017254108969
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Suitable for heating
- No
- Model
- On/Off
- Type of power supply
- 230 V AC
- Connection
- 3-/4-wire
- With receiver
- No
- External sensor
- No
- Thermal feedback
- Parallel
- Number of cooler outputs
- 1
- Differential value
- 0.5 K
- Adjustable differential
- No
- Temperature readable
- Yes
- With sound indicator
- No
- Sensor/feeler type
- Bimetal
- Mounting method
- Surface mounted
- Number of modules (module system)
- 2
- With display
- No
- Operation
- Turn
- With tap water circuit
- No
- Max. contact voltage
- 230 V
- Max. contact load
- 5 A
- Degree of protection (IP)
- IP30
- Explosion-proof
- No
- RAL-number
- 9010
- Height
- 75 mm
- Width
- 75 mm
- Depth
- 27.5 mm
- Diameter
- 75 mm
- Class of the temperature control
- I
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017254108969
- SAP 1000018652
- Code 8146643
Product Documentation
More from Schneider Electric
Schneider Electric

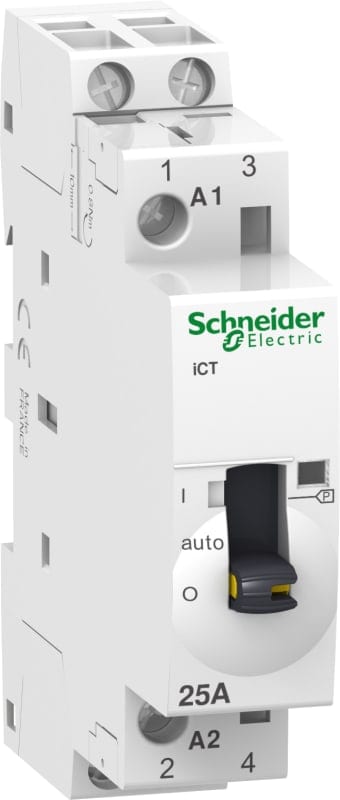

Schneider Electric iCT 25A 2NO 230...240V 50Hz MO contact A9C21732
Schneider Electric

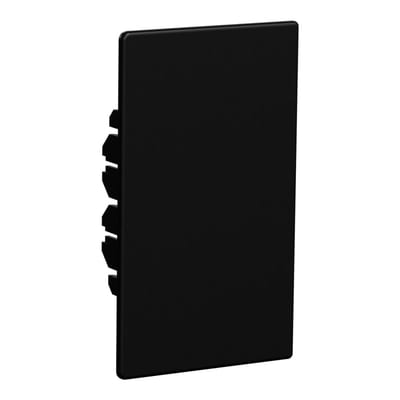

Schneider Electric Thorsman ES 123PV TEK End Piece 72mm Black
INS60606
Schneider Electric
Schneider Electric ACTI9 - comb busbar - 1L+N - 18 mm pitch - 12 modules - 100 A A9XPH212
Schneider Electric

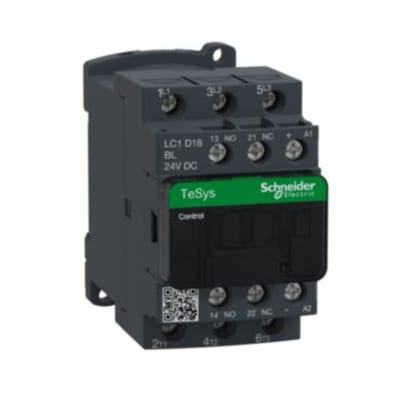

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 18A, 24V DC low consumption coil, screw clamp terminals LC1D18BL
Schneider Electric

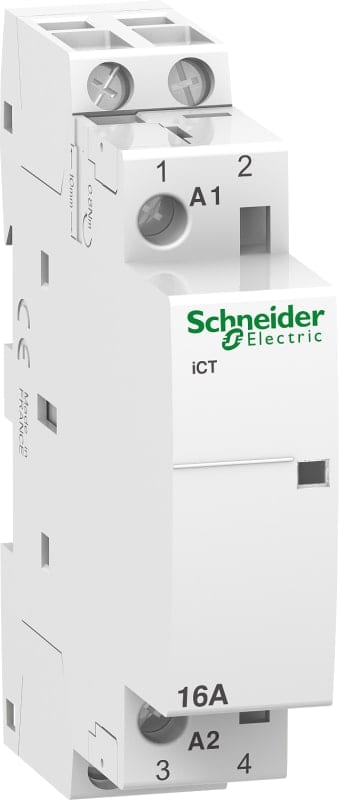

Schneider Electric iCT 16A 2NO 230...240V 50Hz contactor A9C22712
Schneider Electric

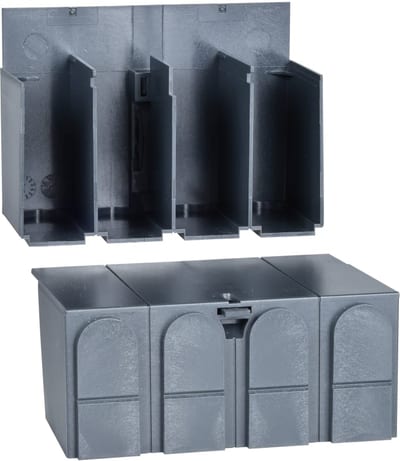

1 SET Terminaldeksler 3P/4P (28957)
Schneider Electric

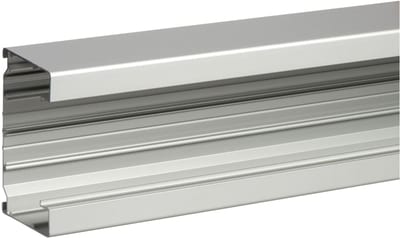

INKA Wall Trunking 123x72 mm, 2.5 m, Anodised Aluminium, Halogen-Free (5507000)
Schneider Electric

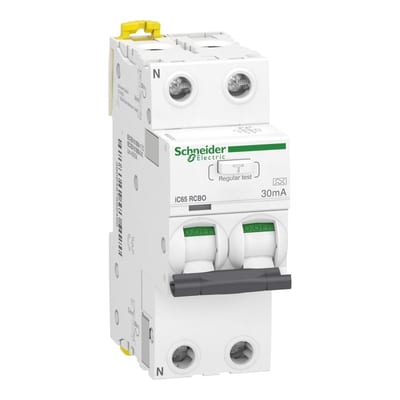

ACTI9 IC65 RCBO 2P C 10A 30MA RCBO
