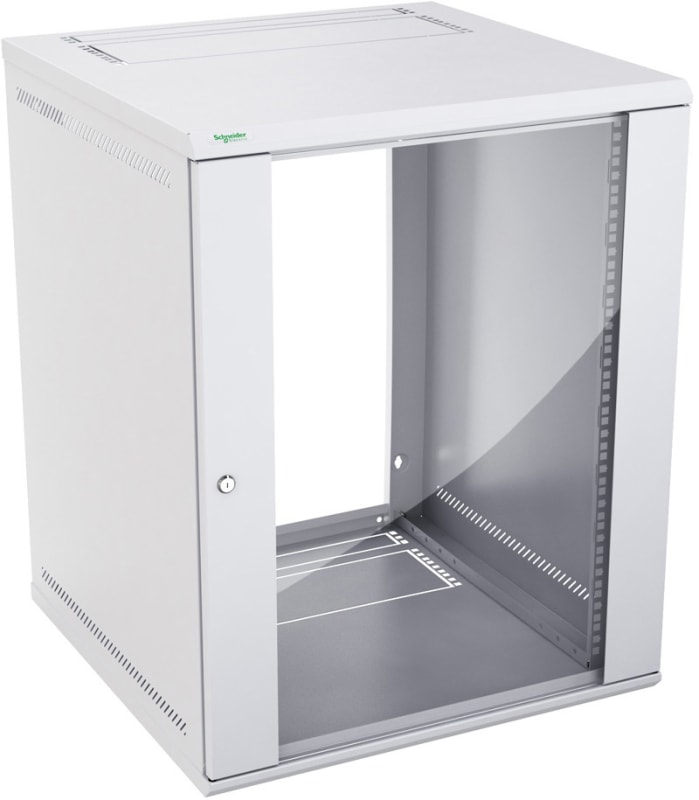

Schneider Electric Actassi KDB - Wall-Mounted KD Box 15U D600 F 19" Glazed NSYKDB15U6F
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYKDB15U6F Wall-mount cabinet KDB flatpk 15U D600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYKDB15U6F
- EAN / GTIN
- 3606480529641
- Sales unit
- pcs
- Rack units
- 15U
- Range
- Actassi
- Product name
- Actassi KDB
- Product or component type
- 19" enclosure
- Device application
- Cabling
- applications
- To mount 19" equipment; To protect network connectivity equipment
- enclosure type
- Knock down box
- support equipment
- 2 x 19" uprights recessed of 120 mm from the front (pitch 25 mm)
- front face
- Glazed door
- Door type
- Front glazed door - with key lock (key: 333) - reversible opening at 180 °
- Accessibility for operation
- Rear; Front
- Removable parts
- Front door removable toolless
- colour
- Light grey (RAL 7035)
- Device composition
- 3 x cable entries; 1 x glazed door front; 2 x panels side; 2 x 19" uprights front; 1 x dismountable structure
- load rating
- 50 kg static; 3 kg by unit
- back face
- Cut-out
- side face
- Panel
- Number of cut-out
- 1 cut-outside; 19" knock down entry cable: top and bottom; 19" knock down entry fan plate: top and bottom
- installation mode
- Wall mounted
- Material
- Sheet steel: structure; Sheet steel: door; Sekurit glass: door; Sheet steel: 19" upright
- Surface finish
- Epoxy-polyester powder
- Width
- 600 mm
- Height
- 751.8 mm
- Depth
- 600 mm
- Product weight
- 25.96 kg
- Number of rack unit
- 15U
- Targeted region
- Europe
- IK degree of protection
- IK08 conforming to IEC 62262
- IP degree of protection
- IP20 conforming to IEC 60529
- Standards
- IEC 60297-3-100; EIA-310E
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 15
- Warranty (in months)
- 18
- Mounting level
- Front side
- Model
- With permanent frame
- Type of profile rail
- None
- Number of doors
- 1
- Type of ventilation
- None
- Number of height units
- 15
- Max. load capacity
- 50 kg
- With roof plate
- Yes
- With earthing
- No
- With front door
- Yes
- With sidewall
- Yes
- Demountable
- Yes
- Surface finishing
- Powder coating
- RAL-number
- 7035
- Degree of protection (IP)
- IP20
- Country of origin
- India
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480529641
- SAP 1000396628
- Code 8857538
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric ACTI9 modular bell transfomer iTR - 230 V 50 Hz - output 12..24 V - 25 VA A9A15215
Schneider Electric
Thermostat OMV.FUNK. +5/+30C
101100151102
Schneider Electric
Schneider Electric iCT 25A 2NO 230...240V 50Hz MO contact A9C21732
Schneider Electric
Schneider Electric Thorsman ES 123PV TEK End Piece 72mm Black
INS60606
Schneider Electric
Schneider Electric ACTI9 - comb busbar - 1L+N - 18 mm pitch - 12 modules - 100 A A9XPH212
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 18A, 24V DC low consumption coil, screw clamp terminals LC1D18BL
Schneider Electric
Schneider Electric iCT 16A 2NO 230...240V 50Hz contactor A9C22712
Schneider Electric
1 SET Terminaldeksler 3P/4P (28957)
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYKDB15U6F?
- NSYKDB15U6F can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYKDB15U6F.
- What is the HS code for NSYKDB15U6F?
- The customs tariff (HS) code for NSYKDB15U6F is 8538.10.
- Who manufactures NSYKDB15U6F?
- NSYKDB15U6F is a Schneider Electric product in the Office & Onboard Equipment range.
- Is a datasheet available for NSYKDB15U6F?
- Yes — the NSYKDB15U6F datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYKDB15U6F?
- The minimum order quantity is 1.
- Is NSYKDB15U6F available?
- Yes — NSYKDB15U6F is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
