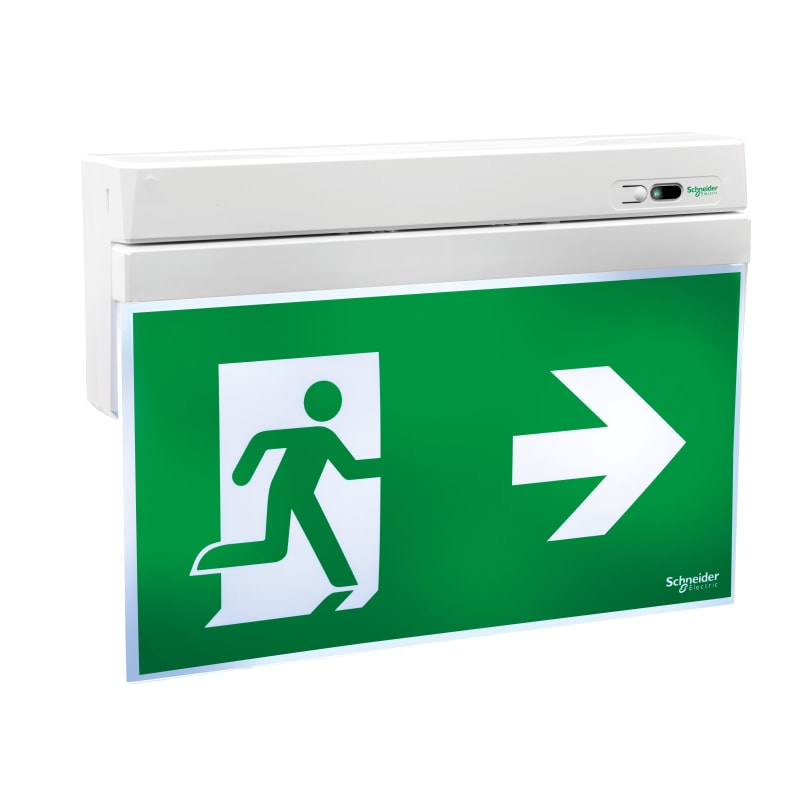

Schneider Electric Emergency exit sign, Exiway Smartexit, Activa, maintained and non maintained, 26M, 1.5H, white OVA48404
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric OVA48404 Exiway Smartexit exit sign luminaire Activa, autotest, 26m, 1.5 t, IP40, LiFePO4, with piktogrammer.
Technical Specifications
- Manufacturer part number (MPN)
- OVA48404
- EAN / GTIN
- 3606481179463
- Sales unit
- pcs
- Package quantity
- 7 pcs
- IP rating
- IP40
- Range
- Exiway
- Product name
- Exiway Smartexit Activa
- Product or component type
- Emergency exit sign
- Device application
- Escape route lighting
- Function
- Self-test
- Colour
- White
- Supply
- Maintained; Non-maintained
- Provided equipment
- With 4 standard stickers (left/right/down/down)
- Main colour tint
- White
- Colour tint
- White
- Supply voltage
- 230 V
- Light source
- LED
- Light source colour
- White
- Power consumption in VA
- 5.61 VA
- Power consumption in W
- 2.77 W
- Battery capacity
- 1.5 Ah at 3.2 V, LiFePO4
- Device mounting
- Surface direct fixing; Ceiling direct fixing; Flag direct fixing; Hanging wall; Hanging ceiling
- Visibility distance
- 26 m
- Charging time
- 12 h
- Autonomy
- 1 h 30
- Bulb type
- LED 100000 h
- Material
- Polycarbonate self-extinguishing; PMMA (polymethyl methacrylate)
- Height
- 260 mm
- Width
- 190 mm
- Depth
- 45 mm
- Product weight
- 0.6 kg
- IP degree of protection
- IP40
- Ambient air temperature for operation
- 0…40 °C
- fire resistance
- 850 °C
- Standards
- EN/IEC 60598-2-22; EN/IEC 62471; EN 62034
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 7
- Number of Units in Package 3
- 56
- Warranty (in months)
- 18
- Mounting method
- Wall surface mounting/ceiling surface mounting
- Suitable for labelling type
- Acrylic plate
- Type of indicator
- Single/double-sided
- Monitoring equipment
- Automatic self test
- Wiring system
- Standby switching
- Power supply system
- Peripheral (individual battery)
- Battery technology
- Lithium-ion
- Lamp type
- LED not exchangeable
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Number of lighting heads
- 1
- Housing material
- Plastic
- Housing colour
- White
- Material cover
- Plastic, opal
- Nominal current
- 120 mA
- Voltage type
- AC
- LED nominal current at constant current
- 120 mA
- Type of control gear
- LED operating device current-controlled
- Light distributor
- Diffuser lens/optic/panel
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Luminous flux in emergency mode
- 40 lm
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Rated life time L80/B10 at 25 °C
- 100000 h
- Rated life time L90/B10 at 25 °C
- 100000 h
- Degree of protection (IP)
- IP40
- Impact strength
- IK04
- Protection class according to IEC 61140
- II
- Max. system power
- 2.77 W
- Rated luminous flux according to IEC 62722-2-1
- 40 lm
- Luminous flux in standby mode
- 40 lm
- Power factor
- 0.05
- Recognition distance
- 26 m
- Height/depth
- 45 mm
- Length
- 260 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Power consumption in emergency mode
- 2.77 W
- Emergency function monitoring system
- Automatic self test
- Type of lithium-ion battery
- Lithium iron phosphate (LiFePO4)
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 3606481179463
- SAP 1200449835
- Code 82502628
Product Documentation
More from Schneider Electric
Schneider Electric
TIR+ Wall Trunking 60x40 mm, 2.5 m, PVC, Polar White
5428000
Schneider Electric

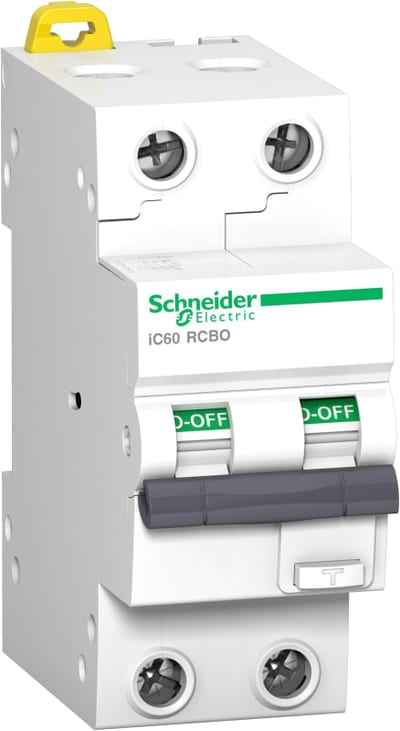

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 2P, 13A, C curve, 10000A/15KA, A type, 30MA A9D17213
Schneider Electric
Schneider Electric Thermal overload relay, TeSys Deca, 690VAC, 3P, 2.5 to 4A, 1NO+1NC, class 10A, screw clamp LRD08
Schneider Electric

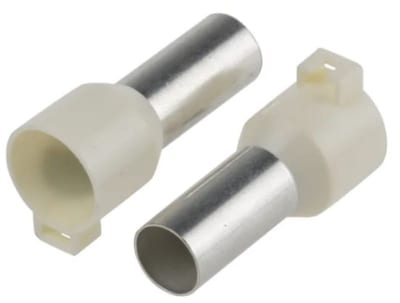

END FERRULE 16 mm², long, with collar
DZ5CA163
Schneider Electric

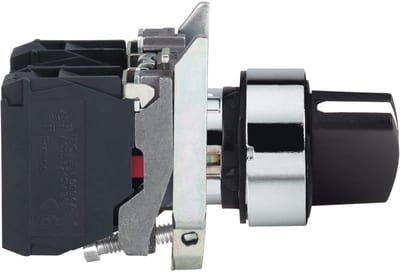

Schneider Electric XB4BD25 Harmony XB4 Selector Switch, 2 Fixed Positions, 1 NO + 1 NC
Schneider Electric

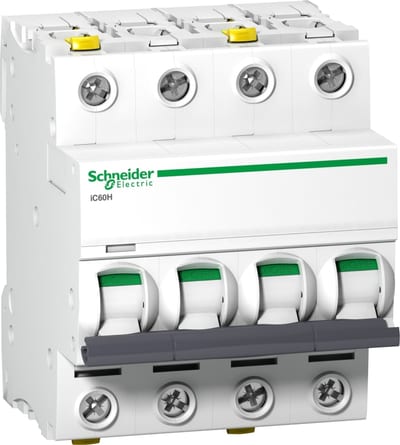

Schneider Electric A9F07440 ACTI9 IC60H Miniature Circuit Breaker 4P 40 A, Curve C
