Schneider Electric

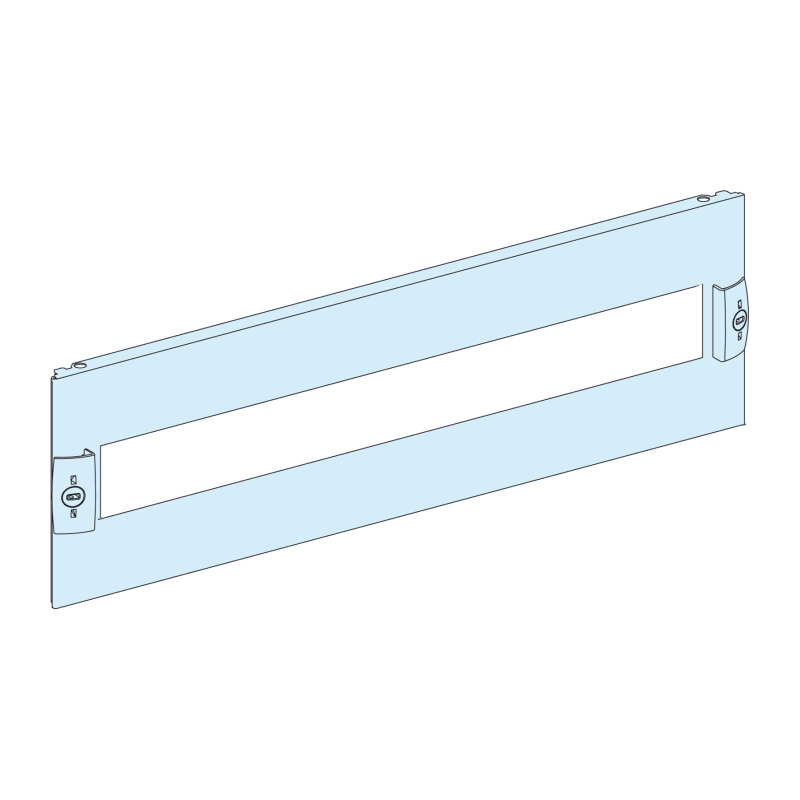

Front plate, 3M, modular product, PrismaSeT G/P
Part numberLVS03203EAN / GTIN3606481866325HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Frontplate-3 Modules for Modular products-PrismaSeT G/P-for 600/650mm felt.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03203
- EAN / GTIN
- 3606481866325
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle; PrismaSeT PrismaSeT Pack 250 enclosure
- Type of front plate
- Cut-out; Modular
- Installed device
- TeSys: fixed GV2L; TeSys: fixed GV2LE; TeSys: fixed GV2ME; TeSys: fixed GV2P; TeSys: fixed GV2RTn; Vigilohm: IM20; Vigilohm: IM20H; Vigilohm: fixed IM9; Vigilohm: IM9; Vigilohm: fixed IM9-OL; Vigilohm: IM9-OL; Acti 9: measurement device; Multi9: measurement device; Acti 9: fixed modular device <= 40 A; Multi9: fixed modular device <= 40 A; Vigirex: RH10; Vigirex: RH197M; Vigirex: RH21; Vigirex: RH99
- Poles description
- 9 x 3P: modular rail support: GV2L; 9 x 3P: modular rail support: GV2LE; 9 x 3P: modular rail support: GV2ME; 9 x 3P: modular rail support: GV2P; 9 x 3P: modular rail support: GV2RTn
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm; Pack enclosure - width 555 mm; Pack enclosure - width 600 mm
- 9 mm pitches
- 48
- Number of 18 mm modules per row
- 24
- Number of vertical modules [50 mm]
- 3
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 150 mm
- Product weight
- 0.54 kg
- Quantity per set
- Set of 1
- functional unit
- 600 mm PrismaSeT G floor-standing enclosure TeSys GV2L fixed 3P 9 direct 3; 600 mm PrismaSeT G wall-mounted enclosure TeSys GV2L fixed 3P 9 direct 3; 650 mm 400 mm PrismaSeT P cubicle TeSys GV2L fixed 3P 9 direct 3; 600 mm PrismaSeT G floor-standing enclosure TeSys GV2LE fixed 3P 9 direct 3; 600 mm PrismaSeT G wall-mounted enclosure TeSys GV2LE fixed 3P 9 direct 3; 650 mm 400 mm PrismaSeT P cubicle TeSys GV2LE fixed 3P 9 direct 3; 600 mm PrismaSeT G floor-standing enclosure TeSys GV2ME fixed 3P 9 direct 3; 600 mm PrismaSeT G wall-mounted enclosure TeSys GV2ME fixed 3P 9 direct 3; 650 mm 400 mm PrismaSeT P cubicle TeSys GV2ME fixed 3P 9 direct 3; 600 mm PrismaSeT G floor-standing enclosure TeSys GV2P fixed 3P 9 direct 3; 600 mm PrismaSeT G wall-mounted enclosure TeSys GV2P fixed 3P 9 direct 3; 650 mm 400 mm PrismaSeT P cubicle TeSys GV2P fixed 3P 9 direct 3; 600 mm PrismaSeT G floor-standing enclosure TeSys GV2RTn fixed 3P 9 direct 3; 600 mm PrismaSeT G wall-mounted enclosure TeSys GV2RTn fixed 3P 9 direct 3; 650 mm 400 mm PrismaSeT P cubicle TeSys GV2RTn fixed 3P 9 direct 3; 600 mm PrismaSeT G floor-standing enclosure Vigilohm 4 3; 600 mm PrismaSeT G wall-mounted enclosure Vigilohm 4 3; 600 mm PrismaSeT G floor-standing enclosure Vigilohm fixed 6 3; 600 mm PrismaSeT G wall-mounted enclosure Vigilohm fixed 6 3; 650 mm 400 mm PrismaSeT P cubicle Vigilohm 6 3; 650 mm 400 mm PrismaSeT P cubicle Acti 9 measurement device 3; 650 mm 400 mm PrismaSeT P cubicle Multi9 measurement device 3; 600 mm PrismaSeT G floor-standing enclosure Acti 9 modular device <= 40 A fixed 48 direct 3; 600 mm PrismaSeT G wall-mounted enclosure Acti 9 modular device <= 40 A fixed 48 direct 3; 650 mm 400 mm PrismaSeT P cubicle Acti 9 modular device <= 40 A fixed 48 direct 3; 600 mm PrismaSeT G floor-standing enclosure Multi9 modular device <= 40 A fixed 48 direct 3; 600 mm PrismaSeT G wall-mounted enclosure Multi9 modular device <= 40 A fixed 48 direct 3; 650 mm 400 mm PrismaSeT P cubicle Multi9 modular device <= 40 A fixed 48 direct 3; 600 mm PrismaSeT G floor-standing enclosure Vigirex 8 direct 3; 600 mm PrismaSeT G wall-mounted enclosure Vigirex 8 direct 3; 650 mm 400 mm PrismaSeT P cubicle Vigirex 8 3; 650 mm 400 mm PrismaSeT P cubicle Vigirex 6 3; 600 mm Prisma Pack 250 Pack enclosure Acti 9 modular device <= 40 A fixed 48 direct 6; 600 mm Prisma Pack 250 Pack enclosure Multi9 modular device <= 40 A fixed 48 direct 6
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 15.600 cm
- Package 1 Length
- 51.100 cm
- Package 1 Weight
- 578.000 g
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 16
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 9.804 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 192
- Package 3 Height
- 102.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 129.650 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Number of height units
- 3
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481866325
- SAP 1200546614
- Code 82880693
