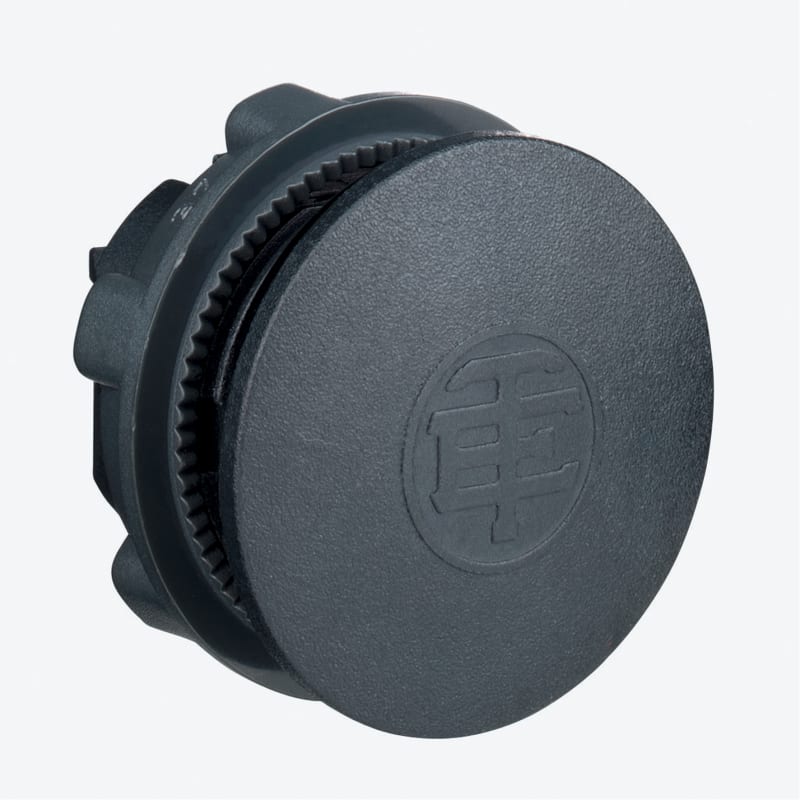

Blanking plug Ø22 black plastic round
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZB5SZ3 round black plastic blanking plug for Ø22 mm cut-outs, part of the Harmony XB5 and XB4 ranges.
Technical Specifications
- Manufacturer part number (MPN)
- ZB5SZ3
- EAN / GTIN
- 3389110099522
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Diameter
- 22 mm
- Range of product
- Harmony XB5; Harmony XB4
- Accessory / separate part type
- Blanking plug
- Accessory / separate part category
- Installation accessories
- Product or component type
- Blanking plug
- Accessory / separate part destination
- Ø 22 mm cut-outs for circular heads
- Cap/operator or lens colour
- Dark grey
- Material
- Plastic
- Bezel material
- Dark grey plastic
- Head type
- Standard
- Colour
- Dark grey
- Device composition
- Nut; Blanking plug
- Sale per indivisible quantity
- 10
- Product weight
- 0.009 kg
- Shape of signaling unit head
- Round
- Operator profile
- Flush
- Station name
- XALD 2...5 cut-outs; XALK 2...5 cut-outs
- Enclosure Type
- UL type 4X/13
- IP degree of protection
- IP66 conforming to IEC 60529; IP67; IP69; IP69K
- IK degree of protection
- IK03 conforming to IEC 50102
- Standards
- JIS C8201-5-1; EN/IEC 60947-1; EN/IEC 60947-5-1; CSA C22.2 No 14; EN/IEC 60947-5-4; UL 508; JIS C8201-1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 400
- Country of origin
- FR
- Warranty (in months)
- 18
- Construction type lens
- Round
- Hole diameter
- 22.5 mm
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3389110099522
- SAP 1000059268
- Code 8545285
Product Documentation
