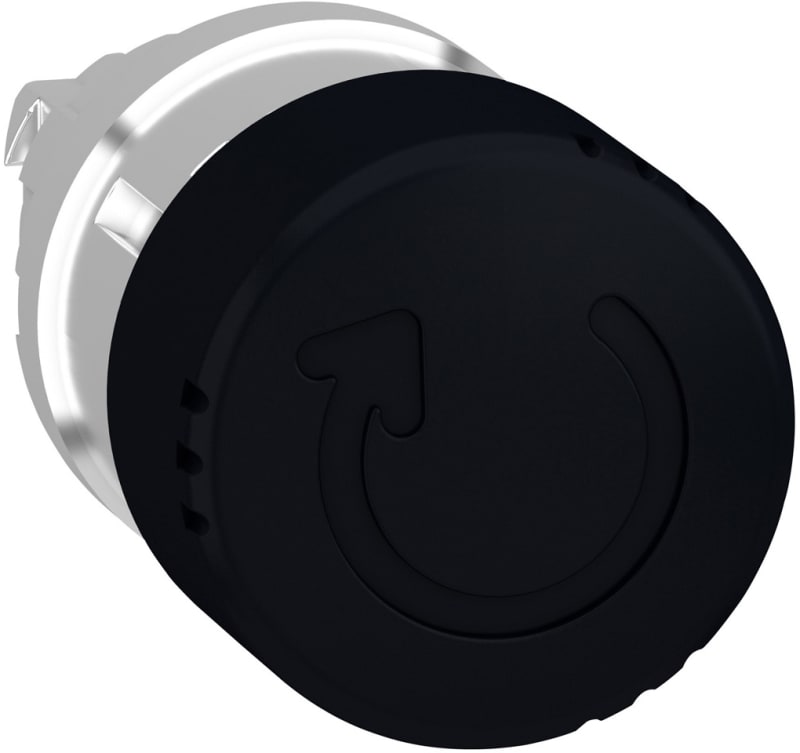

Mushroom Head Push/turn Black Ø30mm

Schneider Electric ZB4BS42 Mushroom Head Push/turn Black Ø30mm.

Manufacturer part number (MPN)

ZB4BS42

EAN / GTIN

3389110888690

Sales unit

pcs

Package quantity

120 pcs

Diameter

30 mm

Range of product

Harmony XB4

Product or component type

Head for non-illuminated push-button

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22 mm

Sale per indivisible quantity

1

Head type

Standard

Shape of signaling unit head

Round

Type of operator

latching

Reset

Turn to release

Operator profile

Black mushroom Ø 30 mm, unmarked

CAD overall width

30 mm

CAD overall height

30 mm

CAD overall depth

57 mm

Product weight

0.066 kg

Mechanical durability

500000 cycles

Electrical composition code

C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C10 for <4 contacts using single and double blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

EN/IEC 60947-1; EN/IEC 60947-5-4; JIS C8201-5-1; CSA C22.2 No 14; EN/IEC 60947-5-1; EN/IEC 60947-5-5; UL 508; JIS C8201-1

Product certifications

BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Black

Suitable for lighting

No

Unlocking method

Turn-release

Spring-return

No

Diameter cap

30 mm

Suitable for emergency stop

No

Type of button

High

Colour front ring

Chrome

With lighting

No

Degree of protection (IP)

IP66

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Switching function latching

Yes

HS Code

8538.90
