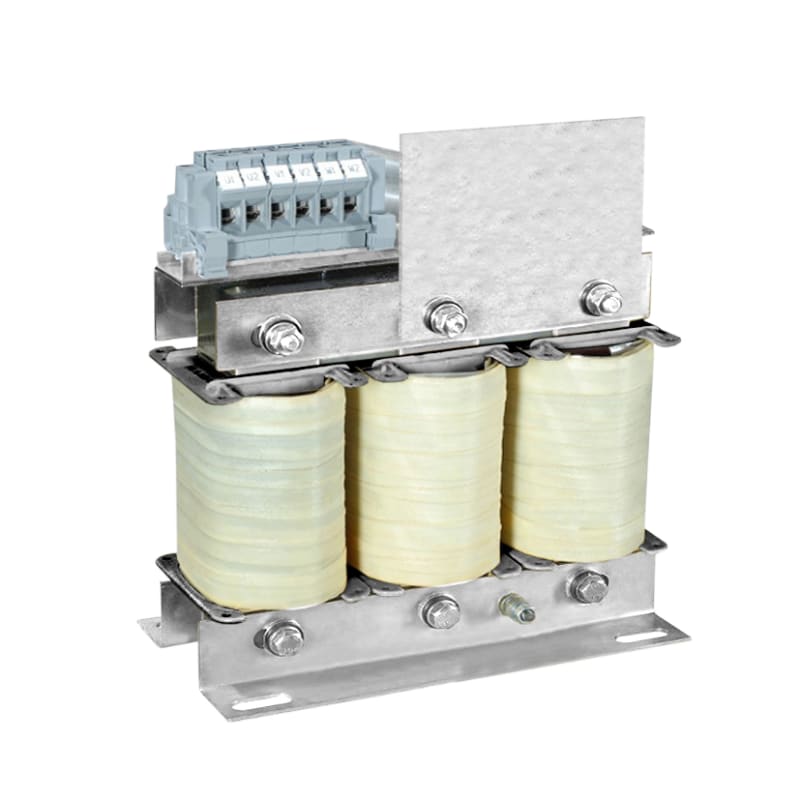

Sinusfilter 400A IP00
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A5209 sinus filter - 400 A - for Altivar variable speed drive.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A5209
- EAN / GTIN
- 3389119201605
- HS code
- 8504.40
- Sales unit
- pcs
- IP rating
- IP00
- Rated current
- 400 A
- Product or component type
- Sinus filter
- Range compatibility
- Altivar 61Q; Altivar 71Q; Altivar 61; Altivar Process ATV900; Altivar 71; Altivar Process ATV600
- Product specific application
- Output filter
- [In] rated current
- 400 A
- Thermal losses
- 1900 W at 100 Hz
- Product compatibility
- ATV61HC22N4; ATV61QC20N4; ATV61QC25N4; ATV71HC20N4; ATV71HC25N4; ATV71QC20N4; ATV71QC25N4; ATV630 variable speed drive wall mount - 220 kW, 380...480 V; ATV930 variable speed drive wall mount - 220 kW, 380...480 V
- Switching frequency
- 4...8 kHz
- Maximum output frequency
- 100 Hz
- maximum permissible voltage
- 500 V AC
- Electrical connection
- Bare wires diameter: 11 mm
- Maximum voltage drop at rated load
- 10 %
- Max current
- 1.5 x nominal current (duration = 60 s)
- Product weight
- 190 kg
- IP degree of protection
- IP00
- Environmental characteristic
- 3B1 conforming to IEC 721-3-3; 3C2 conforming to IEC 721-3-3; 3S1 conforming to IEC 721-3-3
- Pollution degree
- 2 conforming to EN 50178
- Vibration resistance
- 1 gn (f= 13…200 Hz) conforming to IEC 60068-2; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2
- Shock resistance
- 15 gn for 11 ms conforming to IEC 60068-2-27
- Relative humidity
- 0…95 %
- Ambient air temperature for operation
- 40…50 °C (with current derating 1.5 % per °C); -10…40 °C (without current derating)
- Ambient air temperature for storage
- -40…65 °C
- Operating altitude
- <= 1000 m without current derating; 1000...3000 m with current derating 1 % per 100 m
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3389119201605
- SAP 1000528314
- Code 8643400
