Schneider Electric braking resistor - IP 20 - 60 Ohm - 100 W VW3A7702
Pricing
Request a quote
We reply within 24 hours
Product Description

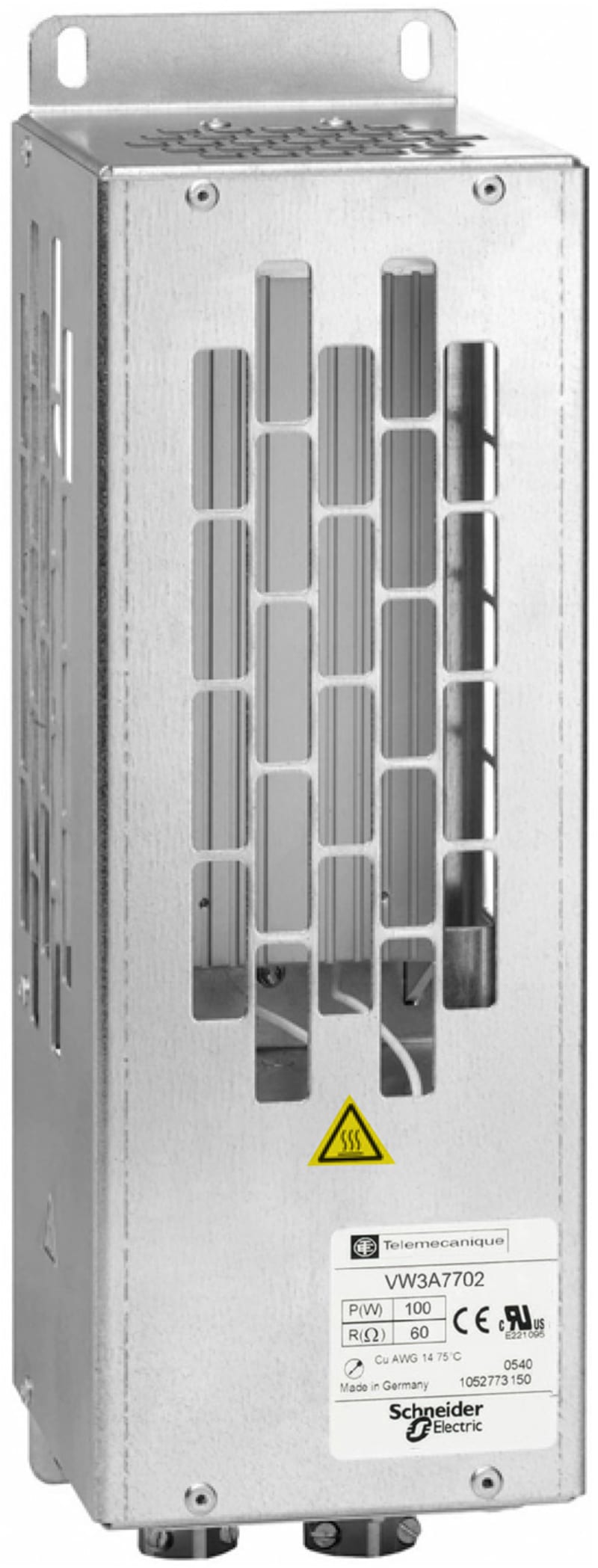

Schneider Electric VW3A7702 Braking resistor 60 ohm 100W.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7702
- EAN / GTIN
- 3389118065741
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 100 W
- Range of product
- Altivar
- Range compatibility
- Altivar 31C; Altivar 312 Solar; Altivar 32; Altivar 61; Altivar 312
- Product compatibility
- ATV31CU22M2; ATV12HU22M2; ATV12HU22M3; ATV12PU22M3; ATV312HU22M2; ATV312HU22M3; ATV312HU30M3; ATV312HU55N4; ATV312HU55S6; ATV312HU75N4; ATV312HU75S6; ATV31CU55N4; ATV31CU75N4; ATV32HU22M2; ATV32HU55N4; ATV32HU75N4; ATV61HD11Y; ATV61HD15Y; ATV61HU15M3; ATV61HU22M3; ATV61HU22S6X; ATV61HU30S6X; ATV61HU40S6X; ATV61HU55N4; ATV61HU55S6X; ATV61HU75N4; ATV61HU75S6X; ATV61WD11N4; ATV61WD11N4C; ATV61WU75N4; ATV61WU75N4C; ATV71HD11Y; ATV71HU15M3; ATV71HU15S6X; ATV71HU22M3; ATV71HU22S6X; ATV71HU30S6X; ATV71HU40S6X; ATV71HU55N4; ATV71HU55S6X; ATV71HU75N4; ATV71HU75S6X; ATV71HU75Y; ATV71PU55N4Z; ATV71PU75N4Z; ATV71WU55N4; ATV71WU75N4; Variable speed drive ATV310 at 5.5 kW; Variable speed drive ATV310 at 7.5 kW
- Ohmic value
- 60 Ohm
- [Ue] rated operational voltage
- 24 V DC at 0.1 A; 250 V AC at 1 A
- Average power available
- 100 W at 50 °C; 115 W at 40 °C
- Electrical connection
- terminal, connection capacity: <= 1.5 mm² / 16 AWG for temperature control switch; terminal, connection capacity: <= 4 mm² / 28 AWG for drive
- temperature controlled switch contact resistance
- 60 µOhm
- Protection type
- Thermal protection via drive or temperature control switch at 120 °C
- Width
- 95 mm
- Height
- 293 mm
- Depth
- 95 mm
- Product weight
- 2.4 kg
- IP degree of protection
- IP20
- Ambient air temperature for storage
- -25…70 °C
- Ambient air temperature for operation
- 0…50 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of accessory/spare part
- Breaking resistance
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8533.29
Cross References
- EAN 3389118065741
- SAP 1000254553
- Code 8222665
