Push-button spring-return NO+NC - Red

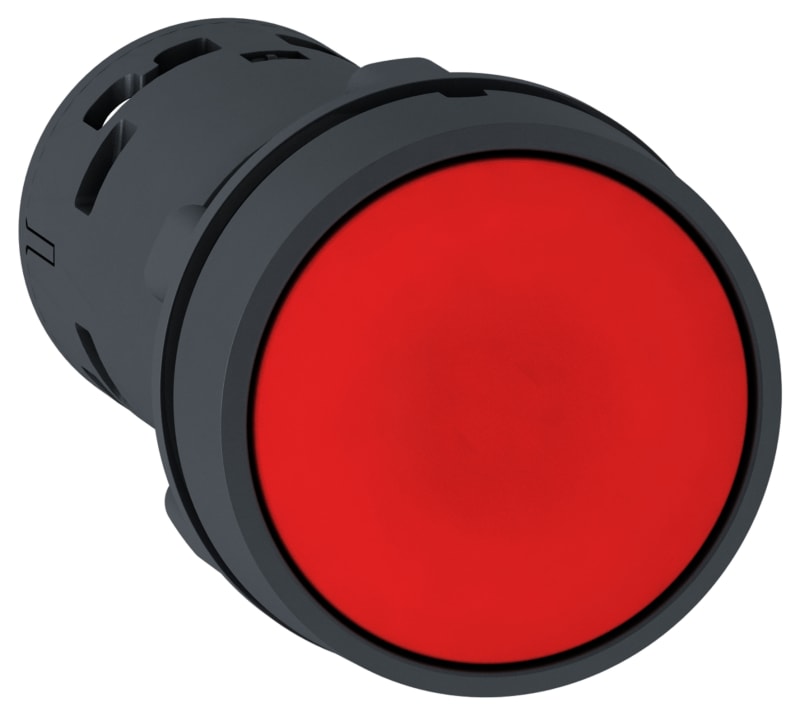

Schneider Electric XB7NA45 Push-button spring return NO+NC - Red.

Manufacturer part number (MPN)

XB7NA45

EAN / GTIN

3606480470172

Sales unit

pcs

Package quantity

10 pcs

Contact configuration

NO + NC

Range of product

Harmony XB7

Product or component type

Push-button

Device short name

XB7

Mounting diameter

22 mm

Sale per indivisible quantity

10

IP degree of protection

IP20 (rear face) conforming to IEC 60529; IP65 (front face) conforming to IEC 60529

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Red flush, unmarked

Contacts type and composition

1 NO + 1 NC

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to IEC 60947-1

Device presentation

Monolithic product

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

51.5 mm

Terminals description ISO n°1

(13-14)NO; (21-22)NC

Product weight

0.021 kg

Device mounting

Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-1

Fixing center

>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm; >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm

Fixing mode

Fixing nut beneath head: 2…2.4 N.m

Contact operation

Slow-break

Positive opening

With NC contact conforming to IEC 60947-5-1 appendix K

Mechanical durability

1000000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with JIS No 1 screwdriver; Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Short-circuit protection

4 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1; 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1; 0.3 A at 240 V, AC-14, D300 conforming to IEC 60947-5-1; 0.6 A at 120 V, AC-14, D300 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ <= 10exp(-6) at 17 V, 5 mA conforming to IEC 60947-5-4

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Overvoltage category

Class II conforming to IEC 61140

Enclosure Type

UL type 3/12

Standards

CSA C22.2 No 14; UL 508; IEC 60947-5-1; JIS C8201-5-1; IEC 60947-1; JIS C8201-1

Product certifications

CCC; GOST

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

100

Number of Units in Package 3

1600

Country of origin

ID

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Red/green

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Type of button

Flat

Colour front ring

Black

Type of electric connection

Screw connection

Degree of protection (IP)

IP54

Material front ring

Plastic

With front ring

Yes

Transparent

No

Construction type lens

Round

Switching function latching

No

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

HS Code

8536.50

• EAN 3606480470172
• SAP 1000529652
• Code 8644744
