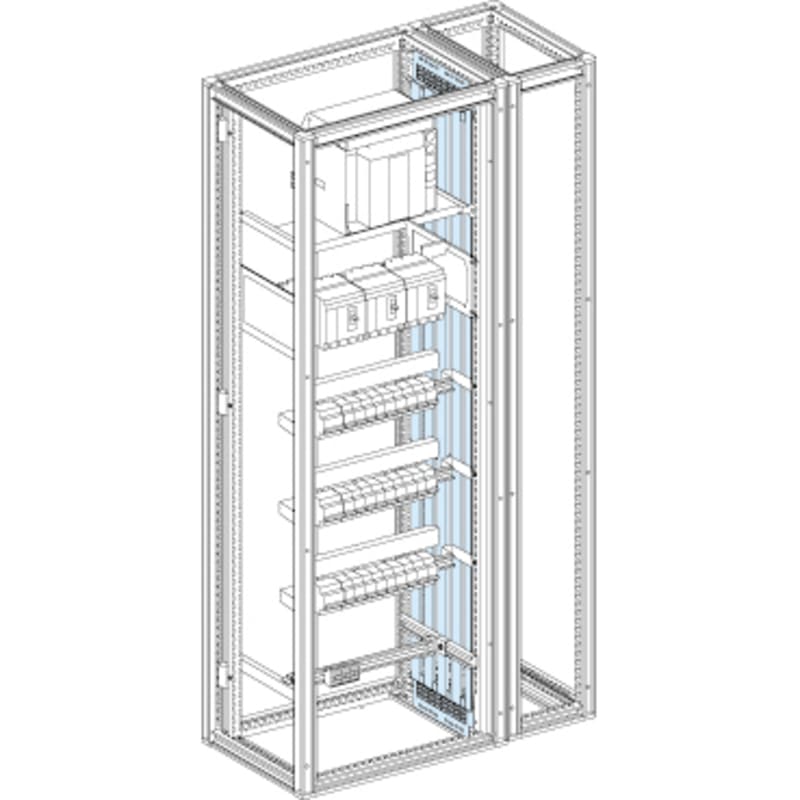

Schneider Electric Form 2 Vertical Side Partition Depth 500mm LVS06545
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS06545 Form 2 side partition, vertical, PrismaSeT 6300 for depth 500mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS06545
- EAN / GTIN
- 3606481879882
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT 6300
- Product or component type
- Side barrier
- Range compatibility
- PrismaSeT PrismaSeT 6300 enclosure; Linergy Linergy BS busbar; Linergy Linergy LGYE busbar
- Product specific application
- To partition vertical lateral busbars
- Cubicle partitioning form
- Form 2
- Barrier position
- Lateral
- Enclosure/cubicle description
- Cubicle
- installation description
- Cubicle - width 700 mm, depth 500 mm
- Enclosure/cubicle width
- 700 mm
- Installation direction
- Vertical
- Product destination
- For busbar compartment
- Cubicle depth
- 500 mm
- Busbar position
- Lateral
- Material
- Metal
- Width
- 500 mm
- Colour
- White (RAL 9003)
- Special colour options
- Yes
- IP degree of protection
- IP55
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.700 cm
- Package 1 Width
- 13.600 cm
- Package 1 Length
- 181.000 cm
- Package 1 Weight
- 6.310 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 50
- Package 2 Height
- 42.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 348.800 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 700 mm
- Suitable for enclosure building depth
- 500 mm
- RAL-number
- 9003
- With cable entry
- No
- Number of height units
- 2
- With lock
- No
- Construction type
- Individual part
- For internal separation form 2a
- Yes
- For internal separation form 2b
- Yes
- For internal separation form 3a
- No
- For internal separation form 3b
- No
- For internal separation form 4a
- No
- For internal separation form 4b
- No
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606481879882
- SAP 1200722189
- Code 83838434
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 80 A 220 V AC 50/60 Hz coil LC1D65008M7
Schneider Electric
Schneider Electric Complete push button, Harmony XB4, Explosive atmosphere, red mushroom pushbutton XB4BC42GEX
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 225A, advanced version, 24…48V wide band AC/DC coil LC1G225BEEA
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 25A, 100V AC 50/60Hz coil, snap-in terminals LC1D25AK7
Schneider Electric
Door cable compartment PrismaSeTG CABINET-IP30 21MOD
LVS08187
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 18A, 24V DC coil, spring terminals LC1D183BD
Schneider Electric
Schneider Electric NG125 - earth leakage add-on block - Vigi NG125 - 4P - 63A - 300MA
19016
Schneider Electric

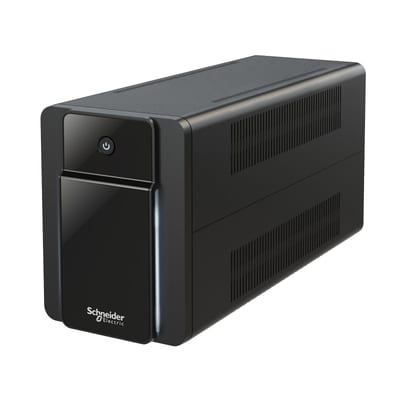

Schneider Electric SE Back-UPS, 950VA, Tower, 230V, 6 x IEC C13 outlets, AVR BXS950MI
