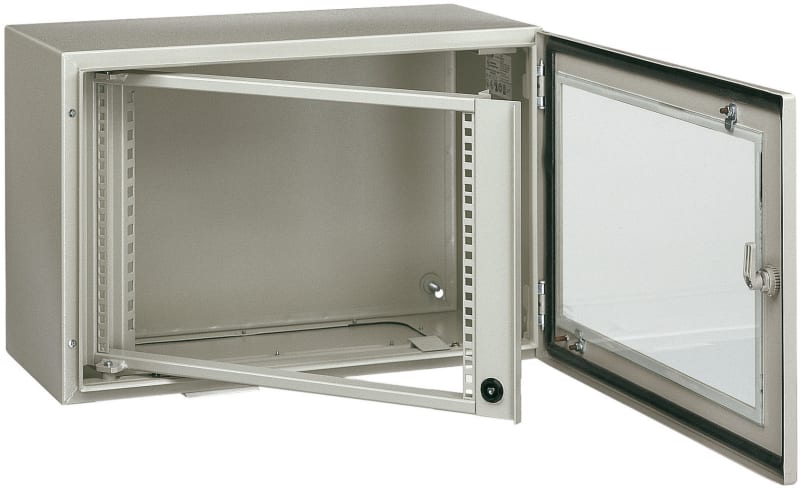

Schneider Electric 19" swing chassis 16U PanelSeT NSYVDM16UP
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYVDM16UP Swing frame 16U for wall-mount cabinet.
Technical Specifications
- Manufacturer part number (MPN)
- NSYVDM16UP
- EAN / GTIN
- 3606480174728
- Sales unit
- pcs
- Rack units
- 16U
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- 19" rack
- Application
- Multi-purpose; Electronic application
- For enclosure nominal dimensions
- - H: 800 mm W: 600 mm D: 200 mm; - H: 800 mm W: 600 mm D: 250 mm; - H: 800 mm W: 600 mm D: 300 mm; - H: 800 mm W: 600 mm D: 400 mm
- Rack type
- Swing
- Mounting location
- Front of enclosure
- Range compatibility
- PanelSeT PanelSeT S3D; PanelSeT PanelSeT S3X; PanelSeT PanelSeT VDM; PanelSeT PanelSeT CRN; PanelSeT PanelSeT CRNG
- Device composition
- fixing elements; 1 19" swing chassis; 2 lock
- Number of units 19"
- 16
- Material
- Chassis: steel
- Enclosure/cubicle description
- Wall-mounted enclosure
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock with 3 mm double bar insert
- fixing mode
- By fixing element
- Colour
- Grey (RAL 7035)
- Permanent permissible load
- 3 kg per unit
- Opening of the 19" racks
- Reversible 120 °
- Height
- Nominal: 800 mm
- Width
- Nominal: 600 mm
- Depth
- 130 mm
- Product weight
- 6.44 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 13.000 cm
- Package 1 Width
- 62.000 cm
- Package 1 Length
- 76.000 cm
- Package 1 Weight
- 6.440 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 16
- Package 2 Height
- 117.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 116.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Swing frame
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building height
- 800 mm
- Suitable for enclosure building depth
- 200 mm
- Max. load capacity
- 3 kg
- RAL-number
- 7035
