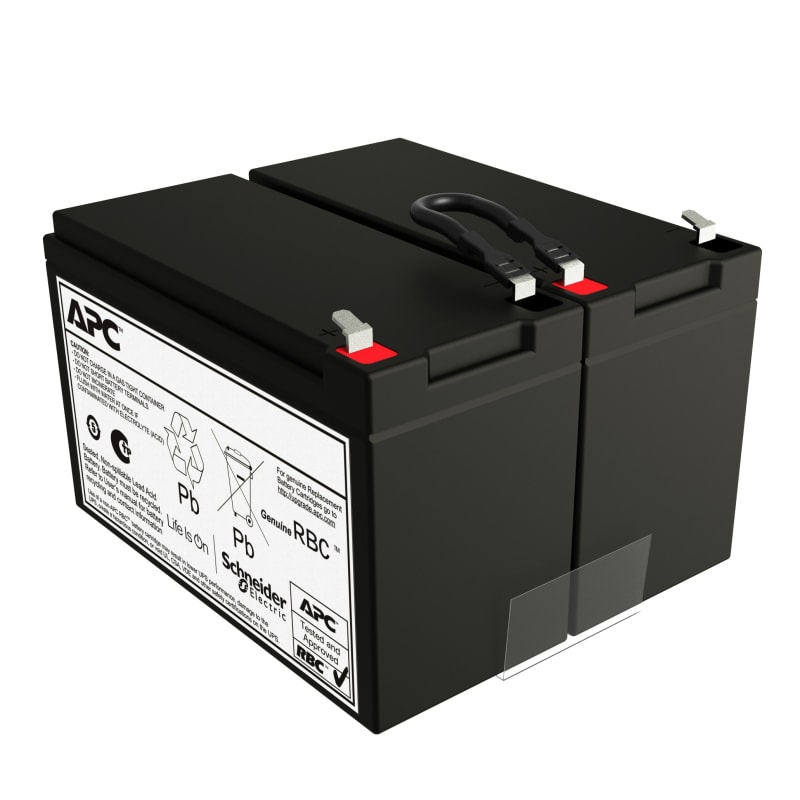

Schneider Electric APC Replacement Battery Cartridge, VRLA, 7AH, 24V DC, 2-Year warranty APCRBCV206
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric APCRBCV206 Easy Replacements Batt VRLA, 7Ah, 24V DC.
Technical Specifications
- Manufacturer part number (MPN)
- APCRBCV206
- EAN / GTIN
- 0731304451082
- Sales unit
- pcs
- Product or component type
- Replacement battery cartridge
- Main Output Voltage
- 24 V DC
- Number of rack unit
- 0U
- battery type
- VRLA
- Range of product
- Replacement Battery Cartridges
- Battery location
- Internal battery
- Number of battery blocks per string
- 2
- Number of battery free slots
- 0
- Number of battery filled slots
- 0
- Battery voltage
- 24 V
- Number of battery replacement quantity
- 1
- Height
- 122 mm
- Width
- 130 mm
- Depth
- 151 mm
- Product weight
- 4.09 kg
- mounting mode
- Not rack-mountable
- USB compatible
- No
- Battery capacity
- 7 Ah
- Product certifications
- CB
- Ambient air temperature for operation
- 0…40 °C
- Operating altitude
- 0...3000 m
- Relative humidity
- 0…95 % non-condensing
- Ambient air temperature for storage
- -15…40 °C
- Storage altitude
- 0…3000 m
- Storage Relative Humidity
- 10…95 % non-condensing
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 18.3 cm
- Package 1 Width
- 18.7 cm
- Package 1 Length
- 20.8 cm
- Package 1 Weight
- 4.65 kg
- Unit Type of Package 2
- P06
- Number of Units in Package 2
- 18
- Package 2 Height
- 49.7 cm
- Package 2 Width
- 60 cm
- Package 2 Length
- 80 cm
- Package 2 Weight
- 92.2 kg
- Country of origin
- CN
- Warranty (in months)
- 24
- Nominal voltage
- 24 V
- Weight
- 4410 g
- Size indication
- Block
- Capacity
- 7000 mAh
- Plastic housing
- Yes
- Length
- 201 mm
- Suitable for EX-applications
- No
- Ambient temperature
- 0–40 °C
- Suitable for rapid charger
- No
- Height including pole
- 170 mm
- Battery pack
- Yes
- Number of cells
- 2
Standards & Compliance
- HS Code
- 8507.20
Cross References
- EAN 0731304451082
- SAP 1200723279
- Code 83845728
Product Documentation
More from Schneider Electric
Schneider Electric

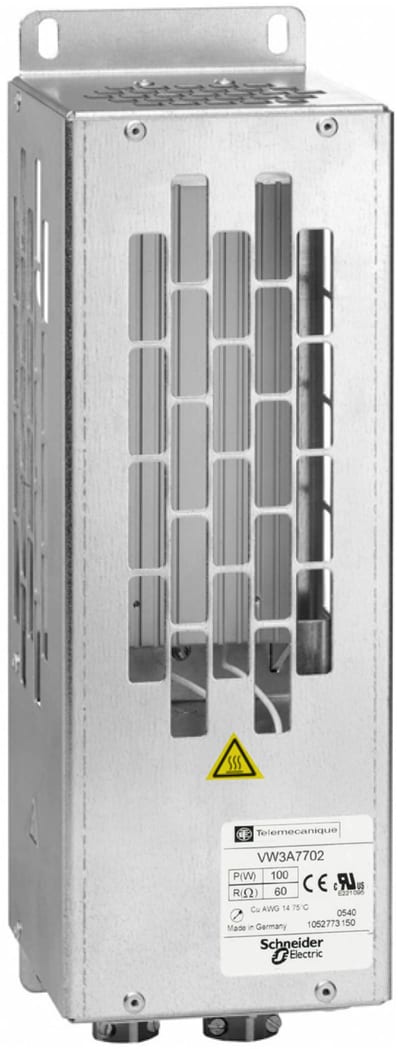

Schneider Electric braking resistor - IP 20 - 60 Ohm - 100 W VW3A7702
Schneider Electric

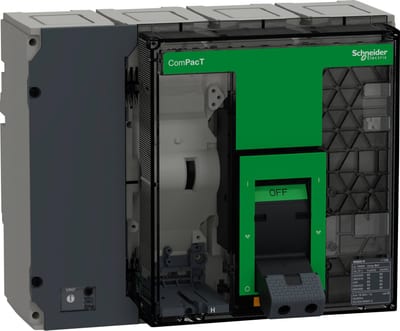

Schneider Electric Circuit breaker frame, ComPacT NS800H, 70KA at 415VAC, 800A, 4P, fixed, manually operated, without control unit C080H4FM
Schneider Electric

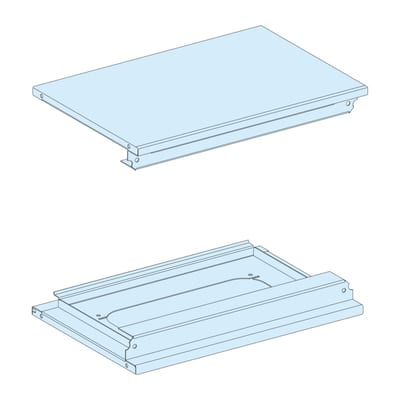

Top/Base Plates PrismaSeT G IP55 B300
LVS08372
Schneider Electric

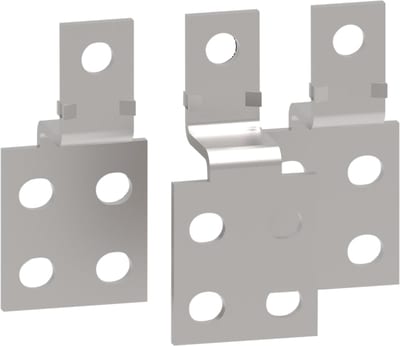

Angleconnection large 3P G115-225
LA9G3671
Schneider Electric

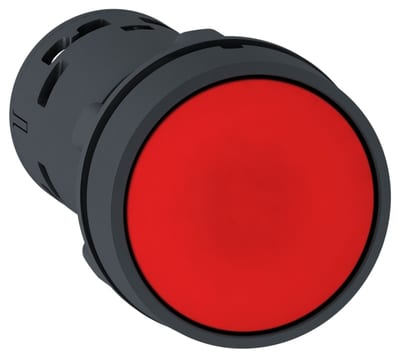

Push-button spring-return NO+NC - Red
XB7NA45
Schneider Electric

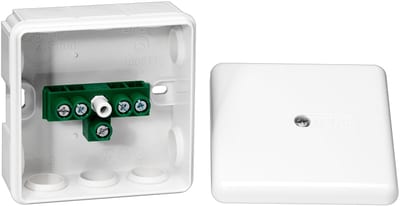

U56 box white 5P fire-resistant
IMT34127
Schneider Electric

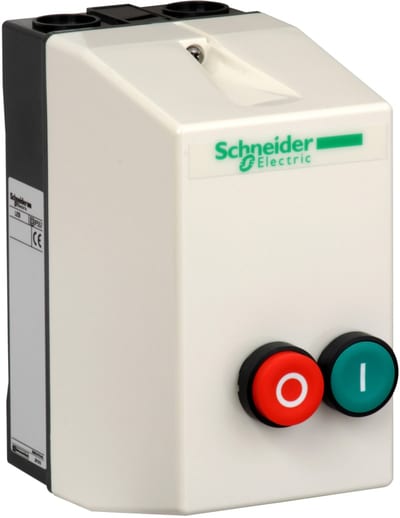

Schneider Electric TeSys LE - enclosed DOL starter - 12 A - 400 V AC coil LE1D12V7
