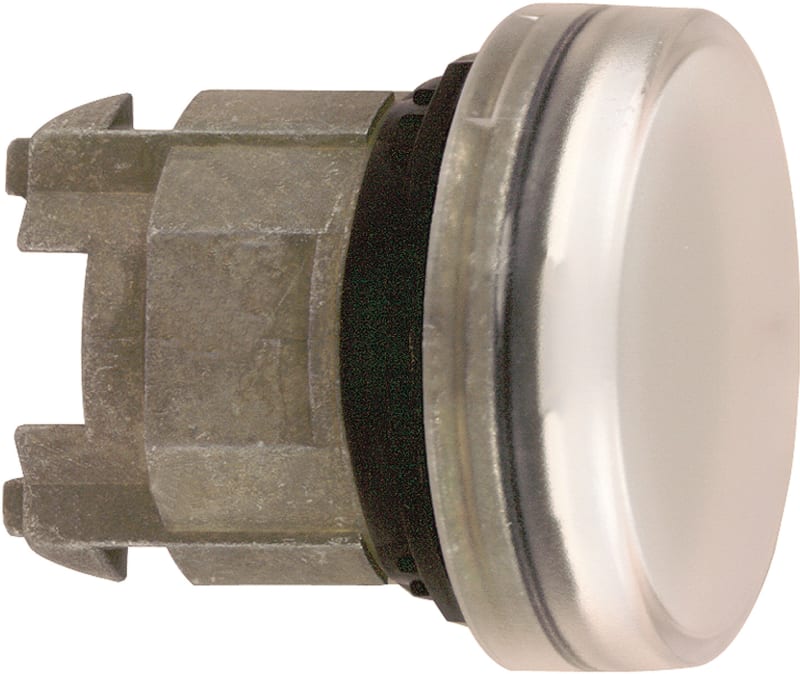

Pilot Light Head White FOR BA9S (ZB4BV01)

Schneider Electric ZB4BV01 Indicator lamp White For BA9S.

Manufacturer part number (MPN)

ZB4BV01

EAN / GTIN

3389110889499

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for pilot light

Product compatibility

BA 9s

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22 mm

Sale per indivisible quantity

1

Head type

Standard

Shape of signaling unit head

Round

Cap/operator or lens colour

White

Operator additional information

With plain lens

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

31 mm

Product weight

0.027 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Electrical composition code

P3 in front mounting with BA 9s; P4 in front mounting with BA 9s and transformer

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…55 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

IEC 60947-5-1; IEC 60947-1; JIS C8201-5-1; UL 508; IEC 60947-5-4; IEC 60947-5-5; CSA C22.2 No 14; JIS C8201-1

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.400 cm

Package 1 Width

3.400 cm

Package 1 Length

5.400 cm

Package 1 Weight

24.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

5

Package 2 Height

4.400 cm

Package 2 Width

3.400 cm

Package 2 Length

26.500 cm

Package 2 Weight

120.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

300

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

7.562 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour lens

White

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

Width opening

29 mm

Height opening

29 mm

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Suitable for number of built-in signal lights

1

Type of lens

High

Degree of protection (NEMA)

4X, 13

HS Code

8531.90
