Door SFN/SM 2000X800
Pricing
Request a quote
We reply within 24 hours
Product Description

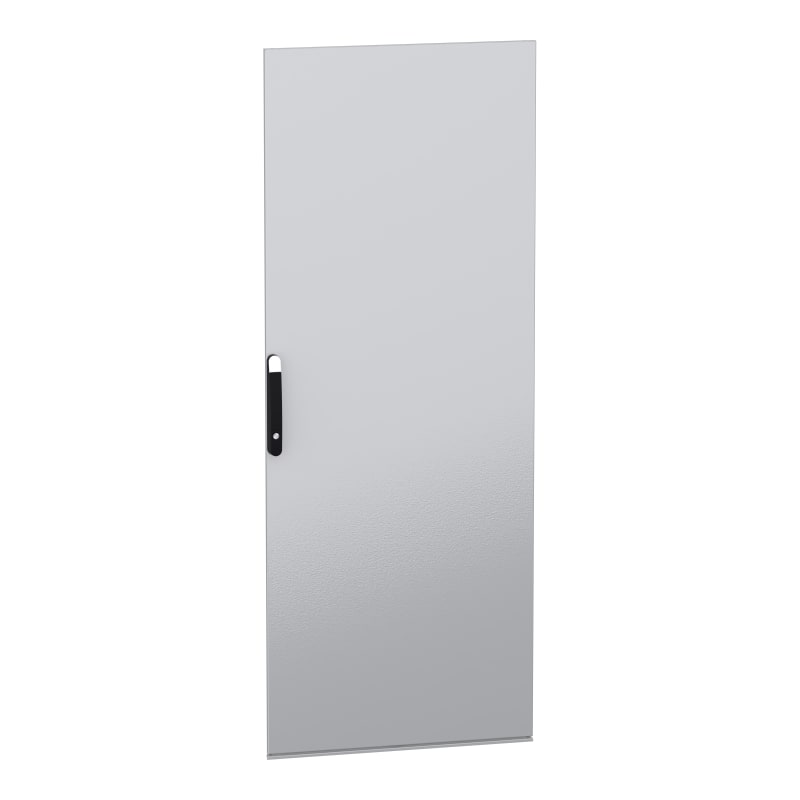

Schneider Electric NSYSFND208 Door, PanelSeT SFN/SM, complete with locking system, 2000x800.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFND208
- EAN / GTIN
- 3606486378120
- Sales unit
- pcs
- Dimensions
- 2000×800 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - H: 2000 mm W: 800 mm
- Mounting location
- Side; Front
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 door; 1 lock with handle and 5 mm double bar insert; 1 locking bar system 4 points; 1 reinforcement frame; 4 hinges; 4 locking bar catches
- Quantity per set
- Set of 1
- Material
- Sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 5 mm double bar
- Number of locks
- 1
- Door type
- Plain
- Door opening side
- Reversible (120 °)
- Height
- Nominal: 2000 mm
- Width
- Nominal: 769 mm
- Product weight
- 18.4 kg
- IK degree of protection
- IK10
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 78.000 cm
- Package 1 Length
- 200.000 cm
- Package 1 Weight
- 31.000 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 12
- Package 2 Height
- 82.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 400.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 26 mm
- EMC-version
- No
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486378120
- SAP 1200697914
- Code 83799704
Product Documentation
