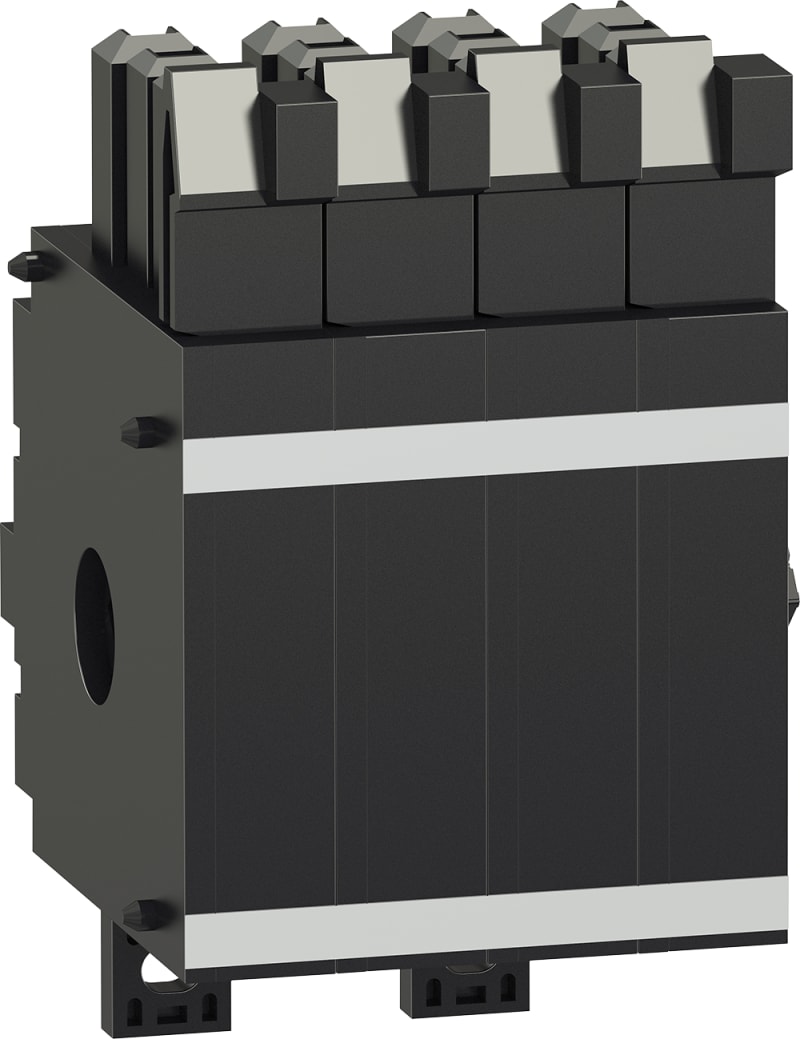

Just. Tidsf. MNR 100/130VAC/DC
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV833681SP Adjustable Time delay undervoltage coil MNR 100/130VAC/DC Masterpact MTZ.
Technical Specifications
- Manufacturer part number (MPN)
- LV833681SP
- EAN / GTIN
- 3606481173362
- Sales unit
- pcs
- Range
- MasterPact
- Device short name
- MN delay unit
- Product or component type
- Time delay auxiliary
- Device application
- Control
- Range compatibility
- Masterpact MasterPact MTZ1 circuit breaker; Masterpact MasterPact MTZ2 circuit breaker; Masterpact MasterPact MTZ3 circuit breaker
- Voltage release type
- Instantaneous
- Impulse duration
- 200 ms
- Time delay range
- 0.5...3 s
- [Uc] control circuit voltage
- 100...130 V AC 50/60 Hz; 100...130 V DC
- Threshold tripping voltage
- 0.35...0.7 Un open; 0.85 Un close
- Supply holding power
- 4.5 VA
- Supply inrush power
- 200 VA
- Response time
- 0.5 s; 0.9 s; 1.5 s; 3 s
- Offer type
- Spare part
- Provided equipment
- 1 instruction sheet
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.5 cm
- Package 1 Width
- 7.6 cm
- Package 1 Length
- 9.1 cm
- Package 1 Weight
- 203.0 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 10
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 9.3 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Delayed
- Yes
- Suitable for off-load switch
- Yes
- Suitable for overload relay
- No
- Type of electric connection
- Flat plug-in connection
- Rated control supply voltage AC 50 Hz
- 100–130 V
- Rated control supply voltage AC 60 Hz
- 100–130 V
- Rated control supply voltage DC
- 100–130 V
- Suitable for motor safety switch
- Yes
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- AC/DC
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481173362
- SAP 1200050678
- Code 81878703
Product Documentation
