Schneider Electric SpaceLogic KNX Line/Area Coupler DIN Rail 5 mA
Pricing
Request a quote
We reply within 24 hours
Product Description

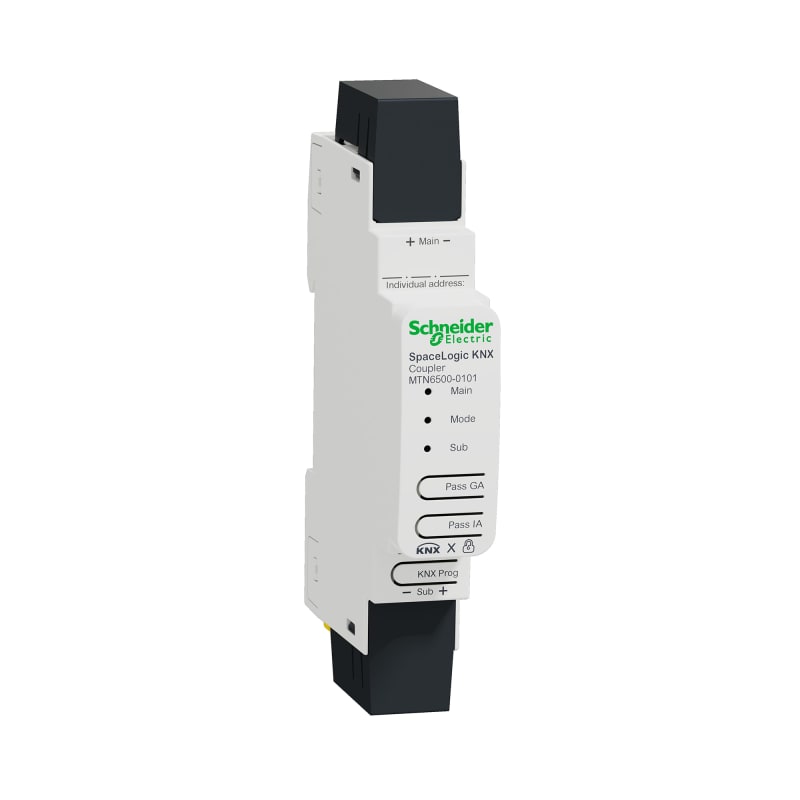

Schneider Electric MTN6500-0101 is a SpaceLogic KNX line and area coupler for DIN-rail mounting. It supports KNX, KNX long-frame and KNX Secure protocols, drawing 5 mA from the bus, and provides local signalling through three LEDs and two push-buttons. The 1-module wide unit is used to segment KNX installations into lines and areas for larger commercial and residential projects.
Technical Specifications
- Manufacturer part number (MPN)
- MTN6500-0101
- EAN / GTIN
- 3606489917876
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Range of product
- SpaceLogic KNX
- Range
- SpaceLogic KNX
- Product or component type
- Coupler
- Product destination
- KNX bus system
- Bus type
- KNX
- total number of 18 mm modules
- 1
- Wiring device mounting
- DIN rail
- Power supply input current
- 5 mA
- Material
- PC
- Communication port protocol
- KNX; KNX long frame; KNX data security
- Control type
- 2 push-buttons
- Local signalling
- 3 LEDs
- Function available
- Supports KNX Secure
- Market segment
- Commercial; Residential
- IP degree of protection
- IP20
- Relative humidity
- 5…93 %
- Ambient air temperature for storage
- -25…70 °C
- Ambient air temperature for operation
- -5…45 °C
- Standards
- EMC directive; EN 50491-3; EN 50491-5-2; EN 50491-5-3; EN 61000-6-2; EN 61000-6-3; EN 50581 : 2012
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.000 cm
- Package 1 Width
- 7.000 cm
- Package 1 Length
- 9.500 cm
- Package 1 Weight
- 94.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 60
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 6.311 kg
- Country of origin
- DE
- Warranty (in months)
- 18
- Mounting method
- DRA (DIN-rail adaptor)
- Width in number of modular spacings
- 1
- Other bus systems
- None
- Degree of protection (IP)
- IP20
Standards & Compliance
- HS Code
- 9025.80
Cross References
- EAN 3606489917876
- SAP 1200422283
- Code 82450870
