Schneider Electric CYB-RF Surface-Mounted Frame White 1 Module
Pricing
Request a quote
We reply within 24 hours
Product Description

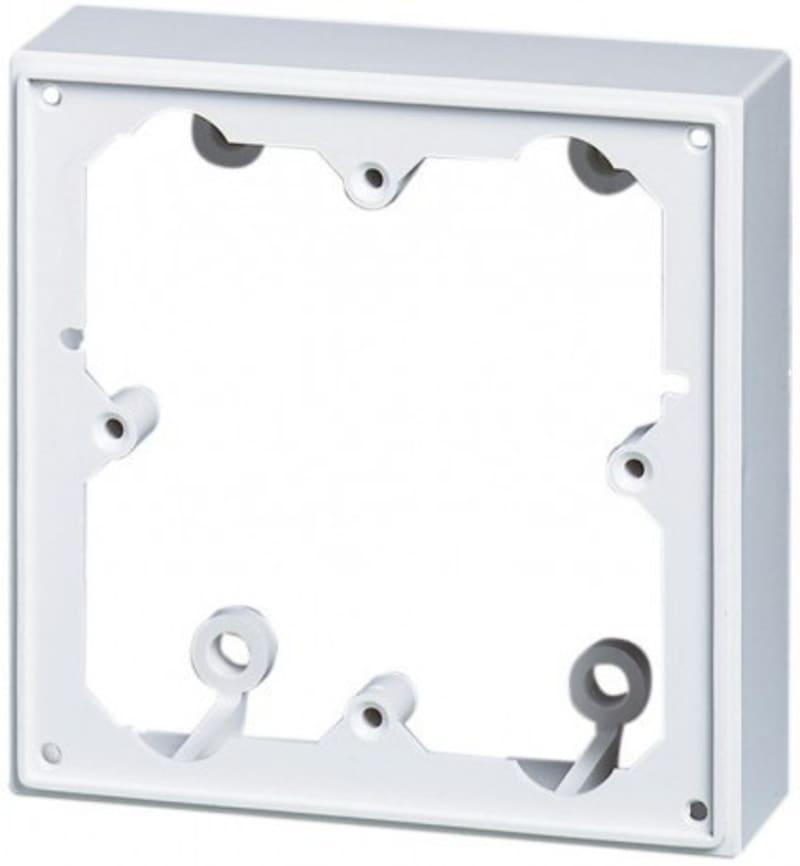

Schneider Electric 5971150 is a CYB-RF surface-mounted elevation frame in white, 84 x 84 mm and 26.5 mm deep. Moulded from impact-resistant thermoplastic in RAL 9016, it houses a single 1-module wiring device and provides a horizontal cable entry from the rear. It is used in domestic and commercial wiring accessories where a flush box cannot be recessed into the wall.
Technical Specifications
- Manufacturer part number (MPN)
- 5971150
- EAN / GTIN
- 7315885971158
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Assembly arrangement
- Surface mounted frame
- Colour
- White
- Width
- 84 mm
- Halogen free
- Yes
- Height
- 84 mm
- Depth
- 26.5 mm
- Shape
- Square
- Number of units
- 1
- Shock resistant
- Yes
- Surface protection
- Untreated
- With cable entry
- Yes
- Material quality
- Thermoplastic
- Material
- Plastic
- With cover frame
- No
- Mounting direction
- Horizontal
- RAL-number (similar)
- 9016
- Degree of protection (IP)
- IP20
- Inlet from the rear
- No
- Transparent
- No
- Surface finishing
- Matt
- With screw gland entry
- No
- With duct entry
- No
- Device width
- 84 mm
- Device height
- 84 mm
- Device depth
- 26.5 mm
- Number of modules (module system)
- 1
- Suitable for modular domestic switching devices
- No
- Desktop device
- No
- Cross-trunking mounting
- No
- With installation tube entry
- No
- Suitable for mounting over existing flush-mounted box
- No
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 7315885971158
- SAP 1000034049
- Code 8252533
Product Documentation
More from Schneider Electric
Schneider Electric
Telescopic rotary handle (500mm) (LV429343T)
Schneider Electric
Schneider Electric SpaceLogic KNX Line/Area Coupler DIN Rail 5 mA
MTN6500-0101
Schneider Electric
Just. Tidsf. MNR 100/130VAC/DC
LV833681SP
Schneider Electric
Floor-Standing Cabinet 20X12X4 M.PL.
NSYSM2012402DP
Schneider Electric

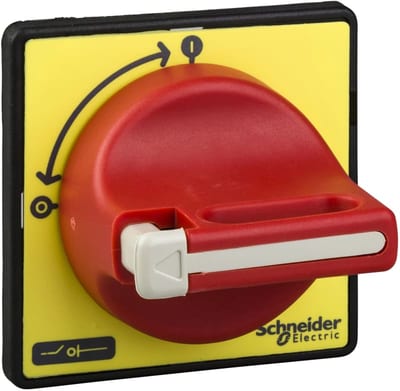

Schneider Electric TeSys VARIO - front and red rotary handle - 1 to 3 padlocking KCF2PZ
Schneider Electric

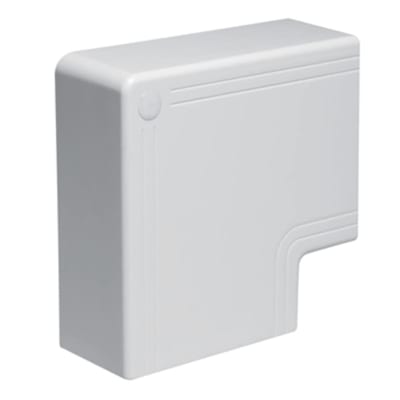

L-Piece Tir+ LS80/40 White
5427160
Schneider Electric

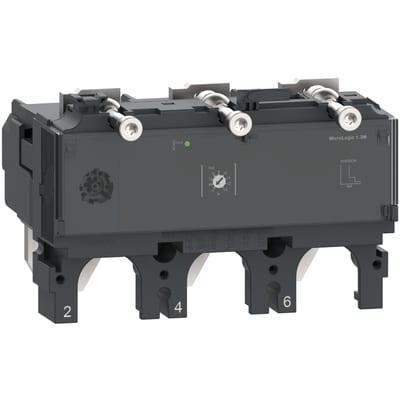

Schneider Electric Trip unit MicroLogic 1.3M, ComPacT NSX630, 3 poles, electronic magnetic protection, motor protection, 500A C6331M500
