Schneider Electric shunt trip (spring) MX-208...240 V AC 60HZ-220…240 50HZ-277 V AC 60HZ-250 V DC LV426844
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV426844 Shunttrippspole MX 208-277V 50/60Hz for ComPact NSXm circuit breaker.
Technical Specifications
- Manufacturer part number (MPN)
- LV426844
- EAN / GTIN
- 3606485413075
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 80 pcs
- Voltage
- 208-277 V
- Frequency
- 50/60 Hz
- Range
- ComPact
- Range of product
- ComPacT NSXm
- Device short name
- MX
- Product or component type
- Voltage release
- Device application
- Control
- Voltage release type
- Opening coil; Shunt trip release
- Control type
- Standard
- [Uc] control circuit voltage
- 220...240 V AC 50 Hz; 208...240 V AC 60 Hz; 277 V AC 60 Hz; 250 V DC
- Range compatibility
- ComPact ComPacT NSXm; ComPact ComPact NSXm; PowerPact PowerPact B
- Operating threshold
- 0.7 Un opening
- Response time
- < 50 ms
- Control signal type
- Impulse; Maintained
- Impulse duration
- >= 20 ms
- Auxiliary connection terminal
- Spring
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606485413075
- SAP 1200323253
- Code 82306323
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Interface plug-in relay, 5 A, 2 CO, LED, 24 V DC RXG23BD
Schneider Electric
Wall Brackets for PrismaSeT G-4 pcs
LVS08804
Schneider Electric
Schneider Electric RSZR215 Retaining Clip for RSB Relay Sockets, 10-pack
Schneider Electric
Screw Clip TCS-C5M 10-14 White
2191511
Schneider Electric

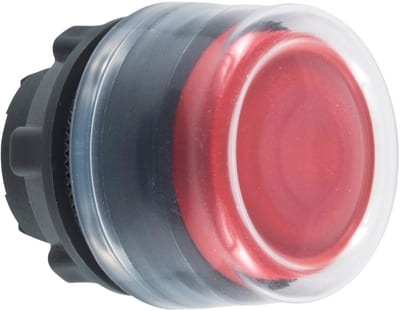

Schneider Electric ZB5AP4 Harmony XB5 Push-Button Head — Ø22 mm, Red, projecting, spring return, non-illuminated, plastic bezel, booted
Schneider Electric

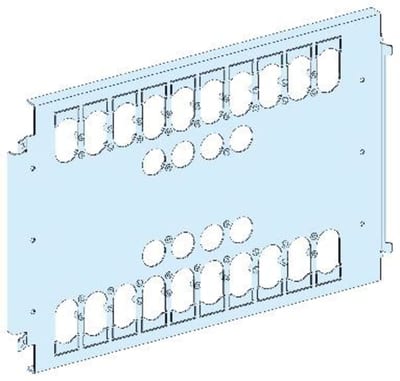

Schneider Electric LVS03422 M.PL.3-4V.FIXED NS250 DEVICES
Schneider Electric

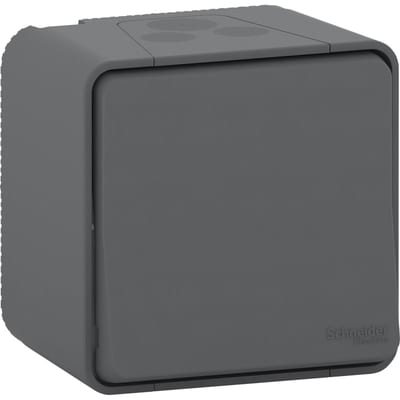

Schneider Electric Mureva Styl Surface Switch, 1-Pole 2-Way, 10 AX, IP55, Anthracite
MUR35021
Schneider Electric

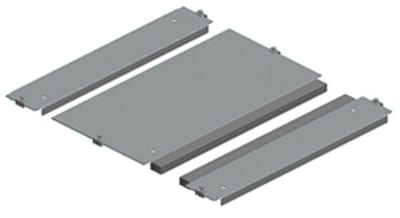

Schneider Electric NSYEC841 One entry cable gland plate, PanelSeT SFN, PanelSet SF, for electrical enclosure W800 D400MM, fixed by clips
