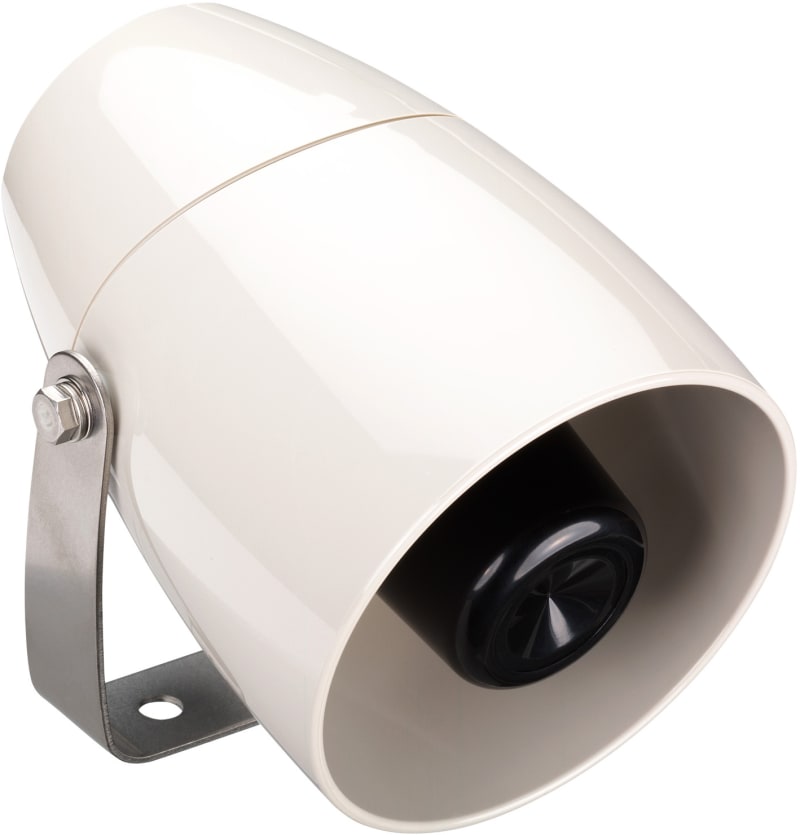

Schneider Electric Multi-sound Siren 230VAC 2 Tones XVS10MMW

Schneider Electric XVS10MMW Siren 106dB 2 toner 230VAC.

Manufacturer part number (MPN)

XVS10MMW

EAN / GTIN

3389119045360

Sales unit

pcs

Package quantity

8 pcs

Voltage

230 V AC

Range of product

Harmony XVS

Product or component type

Siren

Device short name

XVS

Colour

White

Signalling type

2 tones siren

[Us] rated supply voltage

230 V AC

Noise level

106 dB (continuous or intermittent tone) at 1 m

Material

PC: body

Product weight

1 kg

Marking

CE

[Uimp] rated impulse withstand voltage

4 kV

Current consumption

40 mA at 230 V

Clamping connection capacity

<= 1 x 1.5 mm²

Electrical connection

Cable: 6.5…8.5 mm

Width

114 mm

Height

114 mm

Depth

153.2 mm

Standards

IEC 60947-1; IEC 60947-5-1

Protective treatment

TC

Ambient air temperature for storage

-35…70 °C

Ambient air temperature for operation

-30…50 °C

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP53

Number of Units in Package 1

1

Number of Units in Package 2

8

Number of Units in Package 3

32

Country of origin

ID

Warranty (in months)

18

Nominal voltage

230 V

Mounting method

Surface mounting

Power

9.2 W

Housing colour

White

Type of current

AC/DC

Loudness

106 dB

Electricity consumption

0.04 A

Type of acoustic signal

Pulse tone/continuous tone

Degree of protection (IP)

IP53

For Ex-zone gas

None

Suitable for wall mounting

Yes

For Ex-zone dust

None

Type of acoustic signal device

Horn

HS Code

8531.80

• EAN 3389119045360
• SAP 1000263801
• Code 8217599
