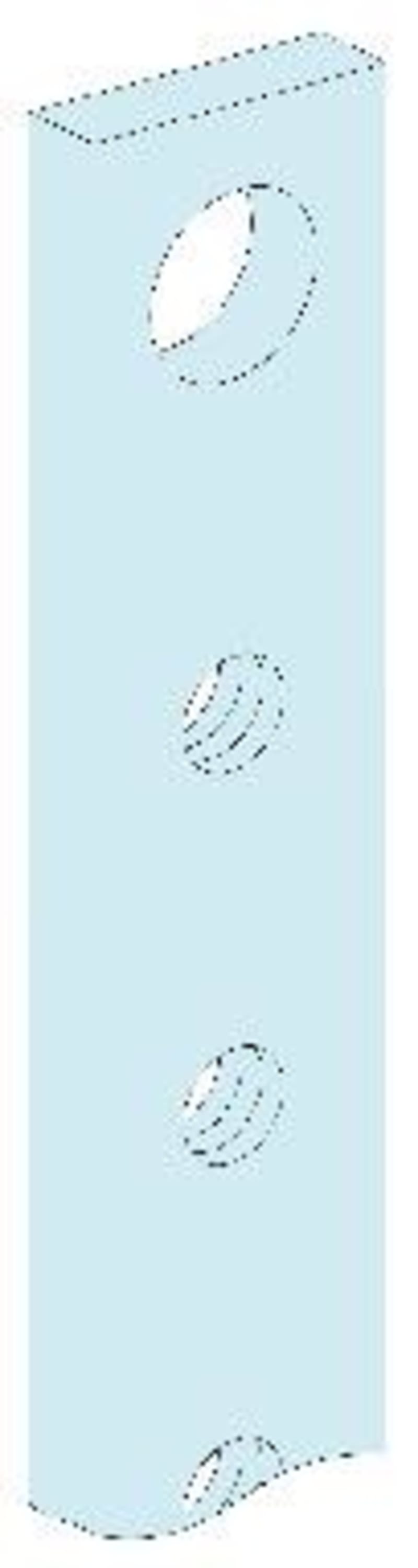

Busbar 160A L1400 G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04171 Busbar-Linergy BS BB-trailing edge 160A -4 pcs-length 1400mm- PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04171
- EAN / GTIN
- 3606481870278
- Sales unit
- pcs
- Rated current
- 160 A
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Busbar
- Product name
- Linergy BS
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure
- Busbar description
- Flat bar
- Quantity per set
- Set of 4
- Installation direction
- Vertical, operating position: rear
- installation description
- Cubicle - width 650 mm; Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm
- [Ie] rated operational current
- 160 A at 35 °C
- [Icw] rated short-time withstand current
- 10 kA (1 s) for 3 supports
- [Ipk] rated peak withstand current
- 30 kA
- Busbar cross section
- 15 x 5 mm
- Length
- 1400 mm
- Width
- 15 mm
- Depth
- 5 mm
- Product weight
- 3.74 kg
- Colour
- Natural
- Type of busbar connection
- M6 threaded hole
- Connection pitch
- Connection each 25 mm
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 56
- Warranty (in months)
- 18
- Model
- Flat
- Height
- 5 mm
- Flexible
- No
- Surface protection
- Untreated
- Rated current In
- 160 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481870278
- SAP 1200547055
- Code 82880321
Product Documentation
More from Schneider Electric
Schneider Electric
RAIL 100A 3M 6 Outlet + BUS
KNT100ED4303
Schneider Electric
Schneider Electric Easy UPS 3S 30KVA 400V 3:3 UPS, 4 internal 7AH modular battery strings E3SUPS30KHB2
Schneider Electric

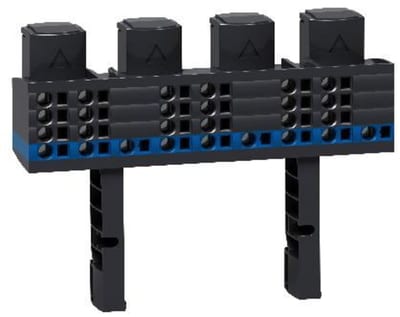

Schneider Electric Distribution block, LINERGY FM, 4P, 160A, 12M, 27HOLES LVS04018
Schneider Electric

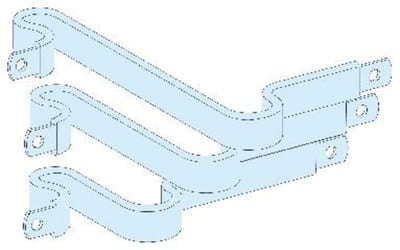

Prefab.Connection Hor/plin/mch NSX250/LGY 3P (LVS04427)
Schneider Electric

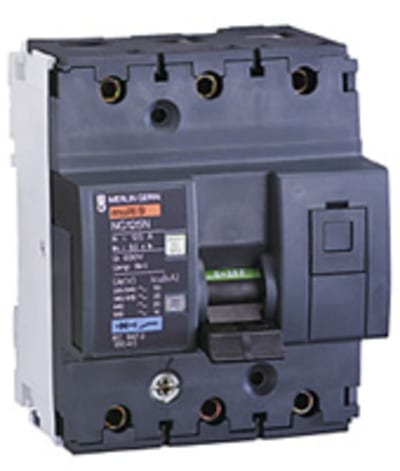

NG125N/D 100-3 Modular Power Switch
18670
Schneider Electric

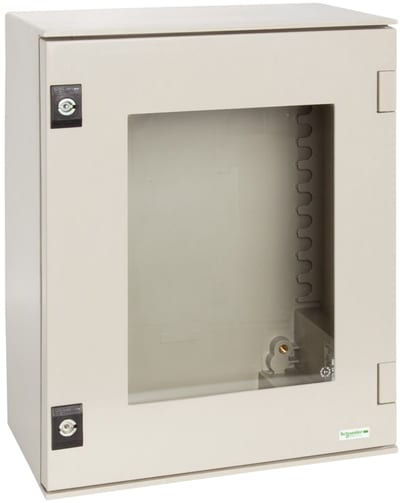

Schneider Electric wall-mounting enclosure polyester monobloc IP66 H847XW636XD300MM glazed door NSYPLM86TG
Schneider Electric

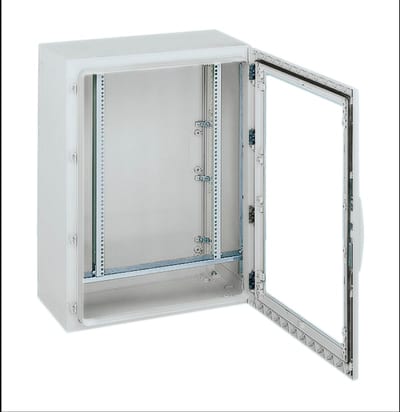

Schneider Electric 19" fixed chassis 21U forPLA enclosure H1250XW750MM NSYBRF21PLAG
Schneider Electric

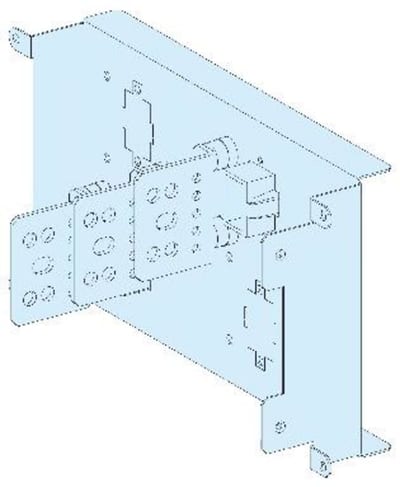

Connection.Cablef. Horis.universal NSX630 3P
