Schneider Electric

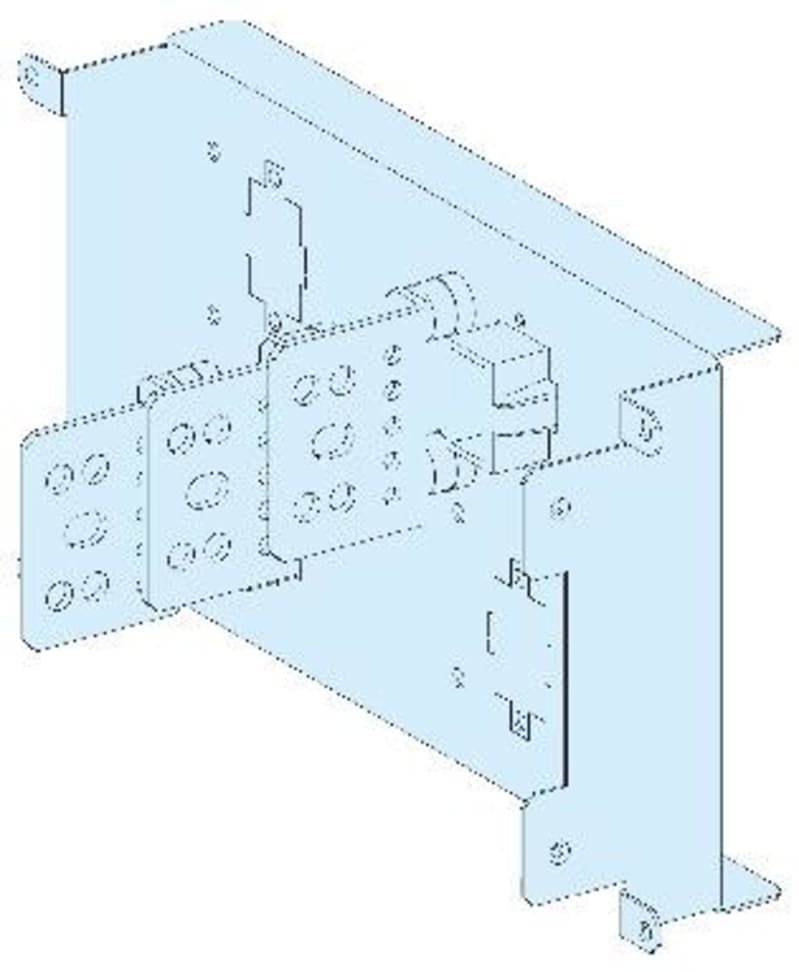

Connection.Cablef. Horis.universal NSX630 3P
Part numberLVS04459EAN / GTIN3606481867674HS code8544.42
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04459 Universal connection for cable compartment for horsontalt mounted NSX400-630 3P-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04459
- EAN / GTIN
- 3606481867674
- Sales unit
- pcs
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection transfer assembly
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- connection transfer assembly
- Poles description
- 3P
- installation description
- Cubicle - width 650 mm
- Installed device
- EasyPact: fixed CVS400 without earth leakage protection - control: toggle horizontal installation; EasyPact: fixed CVS630 without earth leakage protection - control: toggle horizontal installation; ComPact: fixed NSX400 with earth leakage protection - control: toggle horizontal installation; ComPact: fixed NSX630 with earth leakage protection - control: toggle horizontal installation; ComPact: plug-in NSX400 without earth leakage protection - control: toggle horizontal installation; ComPact: plug-in NSX630 without earth leakage protection - control: toggle horizontal installation; ComPact: drawout NSX400 without earth leakage protection - control: toggle horizontal installation; ComPact: drawout NSX630 without earth leakage protection - control: toggle horizontal installation; ComPact: plug-in NSX400 with earth leakage protection - control: toggle horizontal installation; ComPact: plug-in NSX630 with earth leakage protection - control: toggle horizontal installation; ComPact: drawout NSX400 with earth leakage protection - control: toggle horizontal installation; ComPact: drawout NSX630 with earth leakage protection - control: toggle horizontal installation; EasyPact: fixed CVS400 without earth leakage protection - control: direct front rotary handle horizontal installation; EasyPact: fixed CVS630 without earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: fixed NSX400 without earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: fixed NSX400 without earth leakage protection - control: motor mechanism horizontal installation; ComPact: plug-in NSX400 without earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: plug-in NSX400 without earth leakage protection - control: motor mechanism horizontal installation; ComPact: drawout NSX400 without earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: drawout NSX400 without earth leakage protection - control: motor mechanism horizontal installation; ComPact: fixed NSX630 without earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: fixed NSX630 without earth leakage protection - control: motor mechanism horizontal installation; ComPact: plug-in NSX630 without earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: plug-in NSX630 without earth leakage protection - control: motor mechanism horizontal installation; ComPact: drawout NSX630 without earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: drawout NSX630 without earth leakage protection - control: motor mechanism horizontal installation; EasyPact: fixed CVS400 with earth leakage protection - control: toggle horizontal installation; EasyPact: fixed CVS400 with earth leakage protection - control: direct front rotary handle horizontal installation; EasyPact: fixed CVS630 with earth leakage protection - control: toggle horizontal installation; EasyPact: fixed CVS630 with earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: fixed NSX400 with earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: fixed NSX400 with earth leakage protection - control: motor mechanism horizontal installation; ComPact: plug-in NSX400 with earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: plug-in NSX400 with earth leakage protection - control: motor mechanism horizontal installation; ComPact: drawout NSX400 with earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: drawout NSX400 with earth leakage protection - control: motor mechanism horizontal installation; ComPact: fixed NSX630 with earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: fixed NSX630 with earth leakage protection - control: motor mechanism horizontal installation; ComPact: plug-in NSX630 with earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: plug-in NSX630 with earth leakage protection - control: motor mechanism horizontal installation; ComPact: drawout NSX630 with earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: drawout NSX630 with earth leakage protection - control: motor mechanism horizontal installation
- [Ie] rated operational current
- 630 A
- Busbar cross section
- 32 x 6 mm
- Height
- 200 mm
- Width
- 350 mm
- Product weight
- 3.04 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 without fixed toggle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 without fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 without fixed toggle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 without fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed motor mechanism horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without plug-in motor mechanism horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout toggle horizontal 3P 1 direct 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout direct front rotary handle horizontal 3P 1 direct 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout motor mechanism horizontal 3P 1 direct 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed motor mechanism horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without plug-in motor mechanism horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout toggle horizontal 3P 1 direct 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout direct front rotary handle horizontal 3P 1 direct 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout motor mechanism horizontal 3P 1 direct 6; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed toggle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed toggle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed motor mechanism horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in motor mechanism horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout toggle horizontal 3P 1 direct 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout direct front rotary handle horizontal 3P 1 direct 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout motor mechanism horizontal 3P 1 direct 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed motor mechanism horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in motor mechanism horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout toggle horizontal 3P 1 direct 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout direct front rotary handle horizontal 3P 1 direct 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout motor mechanism horizontal 3P 1 direct 6
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 45
- Warranty (in months)
- 18
- Depth
- 400 mm
- With cover
- No
- Max. rated current
- 630 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481867674
- SAP 1200547122
- Code 82879323
