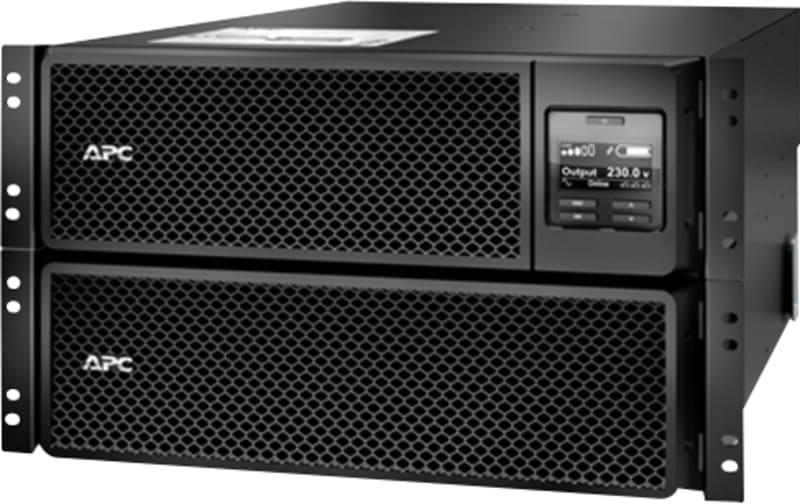

APC UPS SRT 10KVA 230V RM
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRT10KRMXLI APC -UPS SRT 10kVA, Rack 6U,230V,in/out:1P+N+J out:6x C13 4x C19,nettverkskort,expandable,rail kit.
Technical Specifications
- Manufacturer part number (MPN)
- SRT10KRMXLI
- EAN / GTIN
- 0731304304265
- Sales unit
- pcs
- Voltage
- 230 V
- Presentation
- High density, double-conversion on-line power protection with scalable runtime.
- Main input voltage
- 230 V AC 1 phase; 380 V AC 3 phases; 400 V AC 3 phases
- Other input voltage
- 220 V; 240 V; 380 V; 415 V
- Efficiency at full load
- 100...275 V adjustable (half load); 173...476 V adjustable (half load)
- Input connection
- 1 hard wire 3-wire (1P + N + E); 1 hard wire 5-wire (3P + N + E)
- Input frequency
- 40...70 Hz auto-sensing
- Output voltage
- 230 V 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 10000 W
- Rated power in VA
- 10000 VA
- Output connection
- 6 IEC 60320 C13; 3 IEC Jumpers; 4 IEC 60320 C19
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Harmonic distortion
- Less than 2 %
- Maximum configurable power in VA
- 10000 VA
- Maximum configurable power in W
- 10000 W
- UPS topology
- On-Line
- Waveform type
- Its wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBC140
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery type
- Lead-acid internal included
- Emergency power off
- Yes
- Free slot
- 1
- Preinstalled device
- Network management card 3 with environmental monitoring
- Alarm
- Audible and visible alarms : prioritized by severity
- UPS connectivity
- Serial port; USB port; Embedded network management card 3; Available expansion slot
- Surge energy rating
- 480 J
- Number of rack unit
- 6U
- Color
- Black
- Height
- 263 mm
- Width
- 432 mm
- Depth
- 715 mm
- Product weight
- 111.82 kg
- Mounting location
- Front
- Mounting preference
- No preference
- Mounting mode
- Rack-mounted
- Two post mountable
- 0
- USB compatible
- Yes
- Provided equipment
- CD with software; Documentation CD; Installation guide; Rack mounting hardware; Rack mounting brackets; Rack mounting support rails; Temperature probe; USB cable; Warranty card; Web/SNMP management card
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Additional specification
- High density
- Redundant
- No
- Range of product
- Smart-UPS On-Line
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC; IRAM; RCM; VDE
- Marking
- CE Mark
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 55 dBA
- Heat dissipation
- 1947 Btu/h
- Operating altitude
- 0...10000 ft
- Battery voltage
- +/- 192 V (split battery referenced to neutral)
- Extendable runtime
- 1
- Included battery module
- 0
- Typical recharge time
- 1.5 h
- RBC quantity
- 2
- Battery life
- 3…5 year(s)
- Battery charging power
- 876 W rated
- Number of Units in Package 1
- 1
- Country of origin
- PH
- Warranty (in months)
- 24 Battery|36 UPS
