NG125N/D 100-3 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description

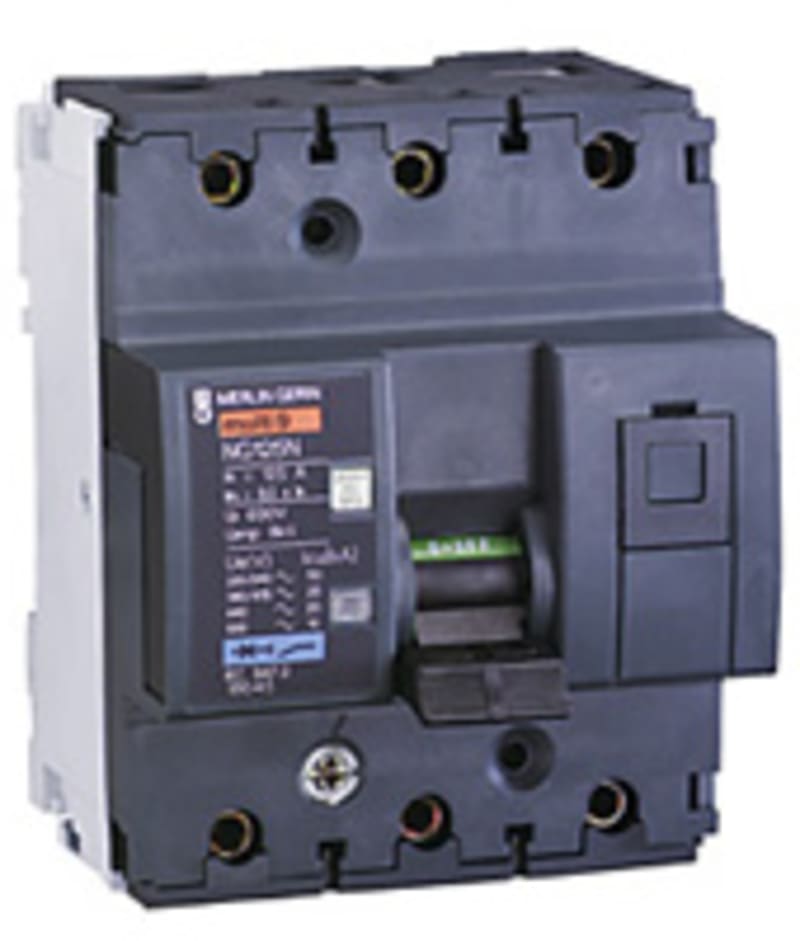

Schneider Electric 18670 NG125N/D 100-3 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18670
- EAN / GTIN
- 3303430186700
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Power loss
- 5.2 W
- Built-in depth
- 47 mm
- Release characteristic
- D
- Number of poles (total)
- 3
- Number of protected poles
- 3
- Rated current
- 100 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 4.5
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 10–50 mm²
- Connectable conductor cross section solid-core
- 16–70 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430186700
- SAP 1000065336
- Code 8735102
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric wall-mounting enclosure polyester monobloc IP66 H847XW636XD300MM glazed door NSYPLM86TG
Schneider Electric
Schneider Electric 19" fixed chassis 21U forPLA enclosure H1250XW750MM NSYBRF21PLAG
Schneider Electric
Connection.Cablef. Horis.universal NSX630 3P
LVS04459
Schneider Electric

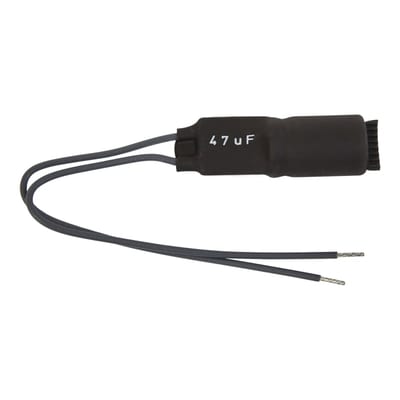

Schneider Electric FFS06717064 In/O Module M200 End-of-Line CZ
Schneider Electric

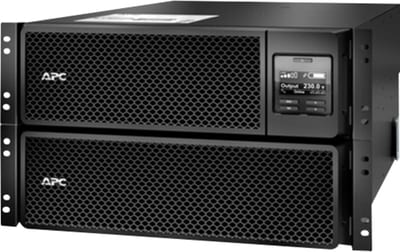

APC UPS SRT 10KVA 230V RM
SRT10KRMXLI
Schneider Electric

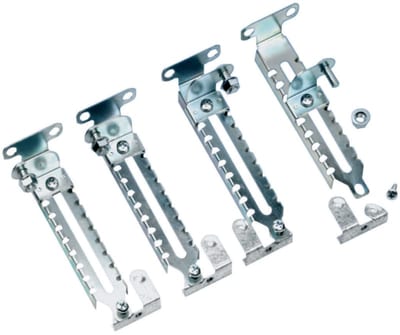

Schneider Electric Set of 4 step slides made of treated steel, D400MM NSYSDCR400
Schneider Electric

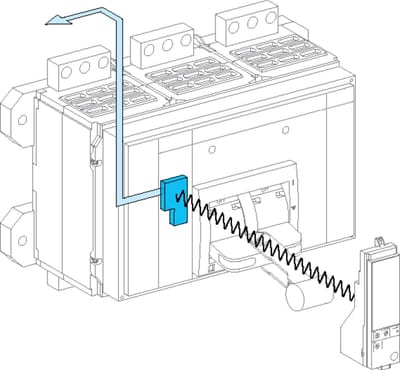

Modbus COM (33986)
Schneider Electric

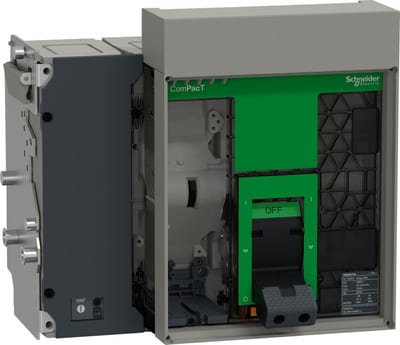

Schneider Electric Switch disconnector basic frame, ComPacT NS800 type NA, 4P, drawout, manually operated, 800A C080S4WM
