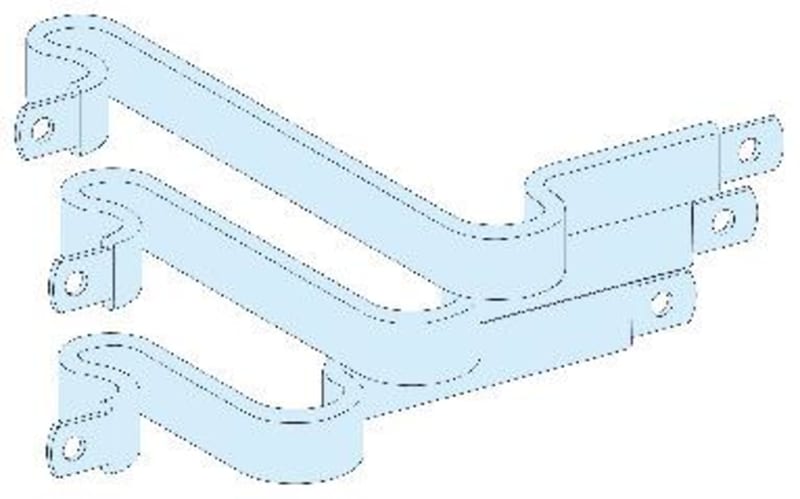

Prefab.Connection Hor/plin/mch NSX250/LGY 3P (LVS04427)
Part numberLVS04427EAN / GTIN3606481867537HS code8544.42
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04427 Prefabricated connection plugin-fast/dreie/motor-horizontal NSX100-250 for Linergy LGY 3P-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04427
- EAN / GTIN
- 3606481867537
- Sales unit
- pcs
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Connection accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy busbar
- Poles description
- 3P
- installation description
- Cubicle - width 650 mm
- Installed device
- ComPact: fixed INS250 - control: direct front rotary handle horizontal installation; ComPact: fixed INS250 - control: direct front rotary handle vertical installation; ComPact: fixed INV250 - control: direct front rotary handle horizontal installation; ComPact: fixed INV250 - control: direct front rotary handle vertical installation; ComPact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: fixed NSX250 without earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: fixed NSX100...160 with earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: fixed NSX250 with earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: fixed NSX100...160 without earth leakage protection - control: motor mechanism horizontal installation; ComPact: fixed NSX250 without earth leakage protection - control: motor mechanism horizontal installation; ComPact: drawout NSX100...160 without earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: drawout NSX250 without earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: drawout NSX100...160 without earth leakage protection - control: motor mechanism horizontal installation; ComPact: drawout NSX250 without earth leakage protection - control: motor mechanism horizontal installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: plug-in NSX250 without earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: motor mechanism horizontal installation; ComPact: plug-in NSX250 without earth leakage protection - control: motor mechanism horizontal installation; ComPact: fixed NSX100...160 with earth leakage protection - control: motor mechanism horizontal installation; ComPact: fixed NSX250 with earth leakage protection - control: motor mechanism horizontal installation; ComPact: drawout NSX100...160 with earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: drawout NSX250 with earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: drawout NSX100...160 with earth leakage protection - control: motor mechanism horizontal installation; ComPact: drawout NSX250 with earth leakage protection - control: motor mechanism horizontal installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: plug-in NSX250 with earth leakage protection - control: direct front rotary handle horizontal installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: motor mechanism horizontal installation; ComPact: plug-in NSX250 with earth leakage protection - control: motor mechanism horizontal installation
- [Ie] rated operational current
- 250 A
- Busbar cross section
- 20 x 3 mm
- Product weight
- 1.24 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 fixed direct front rotary handle vertical 3P 1 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 fixed direct front rotary handle vertical 3P 3 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 fixed direct front rotary handle vertical 3P 1 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 fixed direct front rotary handle vertical 3P 3 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout direct front rotary handle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout motor mechanism horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout direct front rotary handle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout motor mechanism horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout direct front rotary handle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout motor mechanism horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout direct front rotary handle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout motor mechanism horizontal 3P 1 direct 5
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 45
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 650 mm
- Depth
- 400 mm
- With cover
- No
- Max. rated current
- 250 A
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481867537
- SAP 1200547112
- Code 82880470
