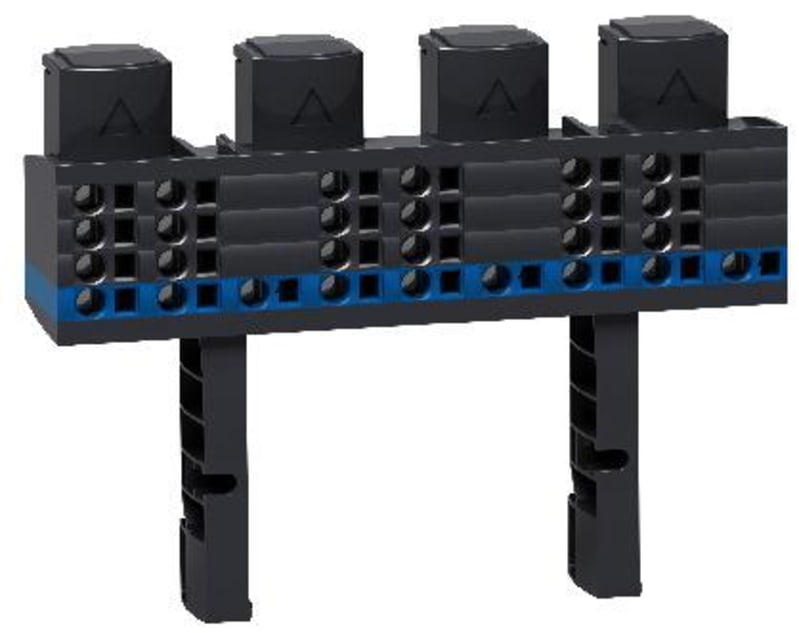

Schneider Electric Distribution block, LINERGY FM, 4P, 160A, 12M, 27HOLES LVS04018
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04018 Fordelingsblokk-Linergy FM(Multiclip)-12 modules-4P-160A-27 hole-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04018
- EAN / GTIN
- 3606481870841
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Rated current
- 160 A
- Number of poles
- 4P
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Device feeder
- Product name
- Linergy FM
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure; PrismaSeT Prisma POLAR WHITE enclosure; PrismaSeT PrismaSeT Pack 250 enclosure
- Product compatibility
- Spacial enclosures
- IP degree of protection
- IPxx B
- Mounting support
- Slotted backplate; DIN rail; Plain backplate
- Installed device
- modular device
- Poles description
- 3P + N
- [Ue] rated operational voltage
- 690 V AC
- [Ui] rated insulation voltage
- 750 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ie] rated operational current
- 160 A
- [In] rated current
- 160 A at 40 °C
- [Ipk] rated peak withstand current
- 20 kA
- Connections - terminals
- Supply: crimped lug70 mm²; Supply: flexible bars, 20 x 3 mm; Distribution: quick-connect terminal strips (phase) , 6 x 4…10 mm² (flexible) ; Distribution: quick-connect terminal strips (phase) , 6 x 4…10 mm² (rigid) ; Distribution: quick-connect terminal strips (neutral) , 6 x 4…10 mm² (flexible) ; Distribution: quick-connect terminal strips (neutral) , 6 x 4…10 mm² (rigid)
- 9 mm pitches
- 24
- Total number of 18 mm modules
- 12
- Product weight
- 0.92 kg
- Colour
- Anthracite grey (RAL 7016)
- Standards
- IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure; IEC 60947-7-1
- Product certifications
- ASTA
- Warranty (in months)
- 18
- Core cross section
- 10 mm²
- With seal head
- No
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481870841
- SAP 1200546784
- Code 82879514
