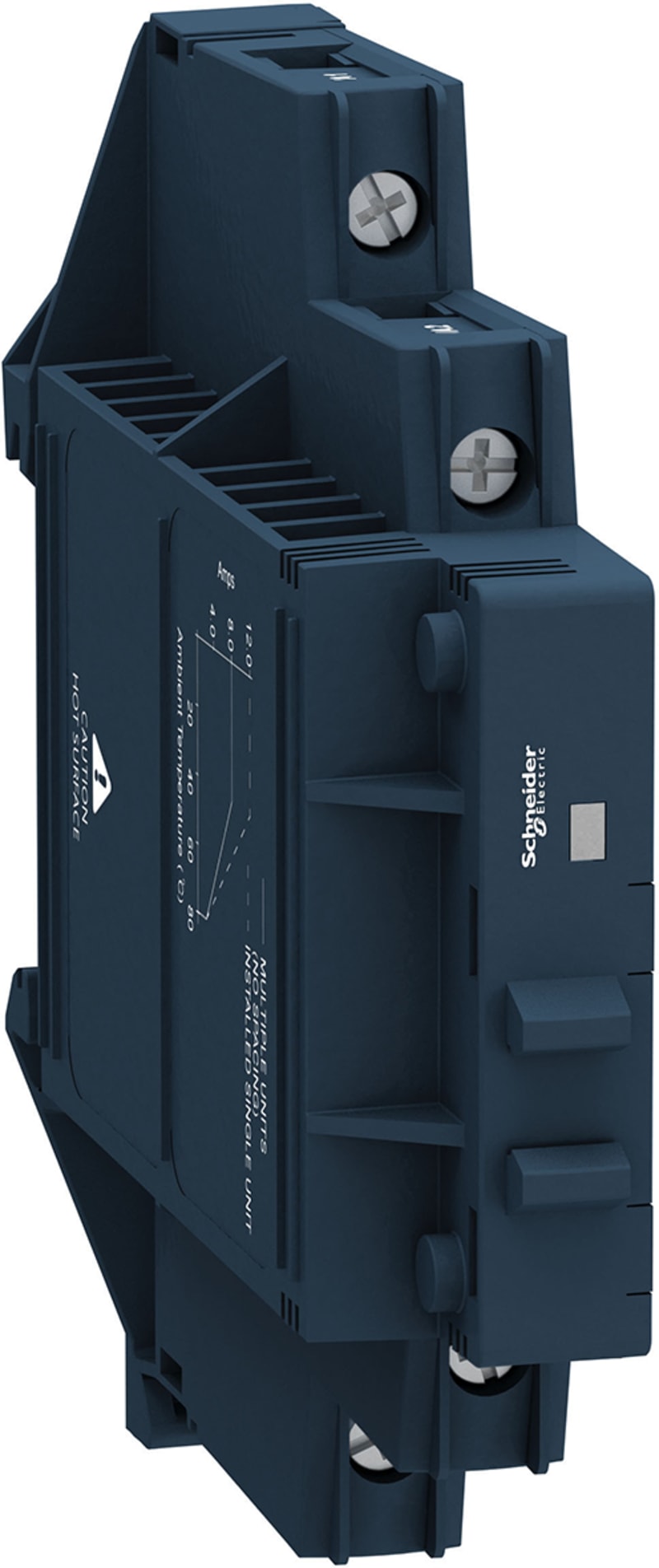

Schneider Electric Solid state modular relay, 12 A, zero voltage switching, input 4...32 V DC, output 24...280 V AC SSM1A112BD

Schneider Electric SSM1A112BD 1 phase SSR 280VAC 12A 24V.

Manufacturer part number (MPN)

SSM1A112BD EAN / GTIN: 3606480579486 Sales unit: pcs Package quantity: 72 pcs Voltage: 24 V Range of product: Harmony Solid State Relays Device short name: SSM Product or component type: Modular DIN rail relay Number of channels: 1 Number of phases: 1 phase Output switching mode: Zero voltage switching Product configuration type: Relay configuration Mounting support: Symmetrical DIN rail [In] rated current: 12 A Output voltage: 24...280 V AC [Uc] control circuit voltage: 4...32 V DC Tightening torque: 0.5...0.8 N.m for input; 0.5...0.8 N.m for output Connections - terminals: Screw terminals: 1 x 0.3...1 x 1.5 mm², (22 AWG...16 AWG) for input; Screw terminals: 1 x 0.3...1 x 2.5 mm², (22 AWG...14 AWG) for output maximum capacitance: 10 pF for input/output Insulation resistance: 1000 MOhm at 500 V DC Local signalling: LED (green) for input status minimum switching voltage: 4 V DC turn-on Maximum switching voltage: 1 V DC turn-off input current: 9…11 mA Solid state output type: Zero voltage switching; SCR output Load current: 0.15…12 A transient overvoltage: 600 V Surge current: 715 A for 16.6 ms; 750 A for 20 ms Maximum voltage drop: <1.3 V on-state Motor power hp: 0.33 hp 40 °C 240 V AC Maximum I²t for fusing: 2560 A².s for 10 ms at 50 Hz; 2330 A².s for 8.33 ms at 60 Hz Maximum leakage current: 0.1 mA off-state DV/dt: 500 V/µs off-state at maximum voltage Response time: 0.5 cycle (turn-on); 0.5 cycle (turn-off) power factor: 0.5 (with maximum load) Overvoltage category: III Width: 18 mm Height: 90.3 mm test button: Without test button Depth: 83.7 mm Product weight: 0.09 kg Device presentation: Complete product Flame retardance: V0 conforming to UL 94 Dielectric strength: 4 kV AC for input/output; 4 kV AC for input or output to case Pollution degree: 2 Standards: IEC 60950-1; IEC 61000; IEC 62314 Product certifications: UL; CSA Marking: CE IP degree of protection: IP20 Ambient air temperature for operation: -30…80 °C Ambient air temperature for storage: -30…100 °C Number of Units in Package 1: 1 Number of Units in Package 2: 72 Country of origin: MX Warranty (in months): 18 Voltage type for actuating: AC/DC Suitable for distribution board: Yes Switching at zero-crossing: No

HS Code

8536.41

• EAN 3606480579486
• SAP 1000665054
• Code 8672789
