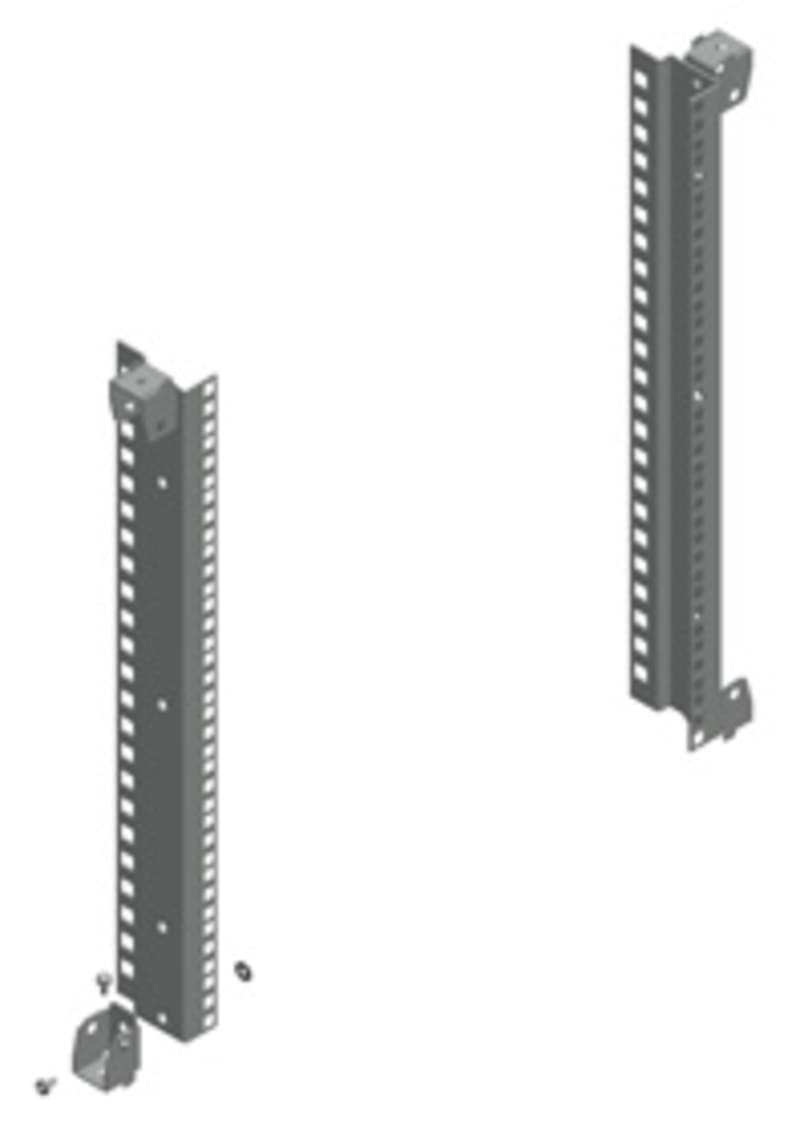

Schneider Electric PanelSeT SF/SM partial 19" fixed rack - 600 mm NSYRCKP12
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYRCKP12 Spacial SF/SM 19" split frame/rack - 12U - 600 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYRCKP12
- EAN / GTIN
- 3606480066948
- Sales unit
- pcs
- Rack units
- 12U
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- 19" rack
- Application
- Electronic application
- For enclosure nominal dimensions
- - H: 600 mm
- Rack type
- Fixed
- Mounting location
- Top front of enclosure
- Mounting support
- Cross rails
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM
- Device composition
- fixing elements; 2 upright
- Quantity per set
- Set of 1
- Number of units 19"
- 12
- Rack coverage
- Partial
- Material
- Steel
- Enclosure/cubicle description
- Floor-standing enclosure
- Surface finish
- Zinc coated
- fixing mode
- By fixing element
- Adjustment
- Adjustable in depth every 25 mm
- Permanent permissible load
- 2 kg per unit
- Height
- 600 mm
- Width
- Nominal: 600 mm; Nominal: 800 mm
- Depth
- 60 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 11.000 cm
- Package 1 Length
- 54.500 cm
- Package 1 Weight
- 1.770 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 20
- Package 2 Height
- 29.000 cm
- Package 2 Width
- 37.500 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 35.400 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building height
- 600 mm
- Max. load capacity
- 2 kg
- Colour
- Stainless steel
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480066948
- SAP 1200496787
- Code 82641085
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric iQuick PRD8R modular surge arrester - 1 pole + N - 350V - with remote transfer A9L16298
Schneider Electric
Schneider Electric Replacement contactor coil, TeSys D, 440 V AC 50/60 Hz, for LC1D09...D38 and LC1DT20...DT40 contactors and CAD relays LXD1R7
Schneider Electric
Jumper link 2 pole for 10mm² - red
NSYTRAL102
Schneider Electric
Schneider Electric Switch disconnector ComPacT NSX250NA DC EP, 4 poles, fixed, 250A rating, 1500V C254250D3S
Schneider Electric
Coupler connector 63A 3P+E 400V IP67
81482
Schneider Electric
Busbar Linergy BW 630A 4P L1400 G/P
LVS04129
Schneider Electric
Door for PrismaSeT G cabinet 33MOD B850-IP30
LVS08254
Schneider Electric
Schneider Electric Miniature circuit-breaker, ACTI9 C120N, 3P, 63 A, C curve, 10000 A (IEC 60898-1), 10 kA (IEC 60947-2) A9N18364
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYRCKP12?
- NSYRCKP12 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYRCKP12.
- What is the HS code for NSYRCKP12?
- The customs tariff (HS) code for NSYRCKP12 is 7326.90.
- Who manufactures NSYRCKP12?
- NSYRCKP12 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYRCKP12?
- Yes — the NSYRCKP12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYRCKP12?
- The minimum order quantity is 1.
- Is NSYRCKP12 available?
- Yes — NSYRCKP12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
