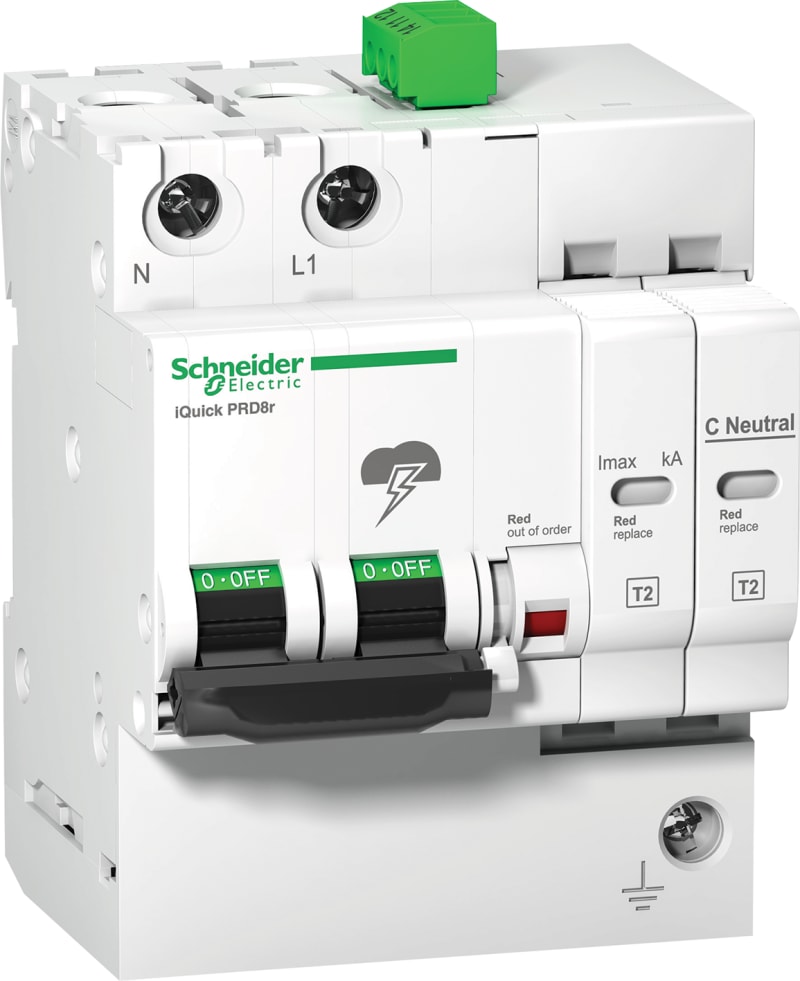

Schneider Electric iQuick PRD8R modular surge arrester - 1 pole + N - 350V - with remote transfer A9L16298

Schneider Electric A9L16298 Surge protection device iQuick PRD 8r 1P+N.

Manufacturer part number (MPN)

A9L16298

EAN / GTIN

3606480387104

Sales unit

pcs

Package quantity

27 pcs

Number of poles

1P+N

Range of product

IQuick PRD

Product name

Acti9 iQuick PRD

Product or component type

Surge arrester with pluggable cartridge

Device short name

iQuick PRD8r

Device application

Distribution

Standards

EN 61643-11:2012; IEC 61643-11:2011

Product certifications

CE

Quality labels

NF; KEMA-KEUR

Poles description

1P + N

Remote signalling

With

Signal contacts composition

1 SD (1 C/O)

Surge arrester type

Electrical distribution network

Earthing system

TN-S; TT

Surge arrester class type

Type 2 + 3

Surge arrester technology

MOV + GDT

[Ue] rated operational voltage

230 V AC (+/- 10 %) at 50/60 Hz

Nominal discharge current

Common mode: 2 kA (L/PE); Common mode: 2 kA (N/PE); Differential mode: 2 kA (L/N)

Maximum discharge current

Common mode: 8 kA L/PE; Common mode: 8 kA N/PE; Differential mode: 8 kA L/N

[Uoc] open circuit voltage

10 kV type 3 common mode L/PE; 10 kV type 3 common mode N/PE; 10 kV type 3 differential mode L/N

[Uc] maximum continuous operating voltage

Common mode: 264 V N/PE; Common mode: 350 V L/PE; Differential mode: 350 V L/N

Maximum [Up] voltage protection level

Common mode 1.5 kV type 2 L/PE; Common mode 1.7 kV type 2 N/PE; Differential mode 1.2 kV type 2 L/N; Common mode 1.4 kV type 3 L/PE; Differential mode 1.4 kV type 3 L/N; Common mode 1.5 kV type 3 N/PE

Disconnector device type

Integrated circuit breaker - Icu 25 kA

Signalling circuit voltage

2 A/250 V AC 50/60 Hz

Mounting mode

Clip-on (DIN rail)

9 mm pitches

8

Height

94 mm

Width

72 mm

Depth

75.9 mm

Product weight

0.43 kg

Colour

White (RAL 9003)

Connections - terminals

Tunnel type terminal (downside) 2.5…25 mm²; Tunnel type terminal (upside) 2.5…25 mm²

Tightening torque

2.5 N.m

Compatibility code

IQuick PRD8r

IP degree of protection

IP20

IK degree of protection

IK05 conforming to IEC 62262

Relative humidity

5…95 %

Operating altitude

2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

27

Warranty (in months)

18

System configuration

TT

System configuration DC

No

System configuration IT

No

System configuration TN

No

System configuration TN-C

No

System configuration TT

Yes

System configuration other

No

Number of conductors (without earthing)

1

Nominal discharge surge current (8/20)

2 kA

Max. discharge surge current (8/20)

8 kA

Short-circuit-proof

Yes

Nominal voltage AC

230 V

Max. continuous voltage AC

350 V

Voltage protection level

2.5 kV

Voltage protection level L-N

1.2 kV

Voltage protection level N-PE

1.5 kV

Short-circuit breaking capacity (Isccr)

25 kA

Integrated short-circuit protection

Yes

Integrated backup fuse

No

Leakage-current free

No

Mounting method

DIN rail (top hat rail) 35 mm

Construction size

2 modular spacing

Max. conductor cross section solid (solid, stranded)

25 mm²

Max. conductor cross section flexible (fine-strand)

25 mm²

With remote signalling contact

Yes

Signalling at the device

Optical

Category type 2

Yes

Degree of protection (IP)

IP20

Country of origin

Hungary

HS Code

8536.30
