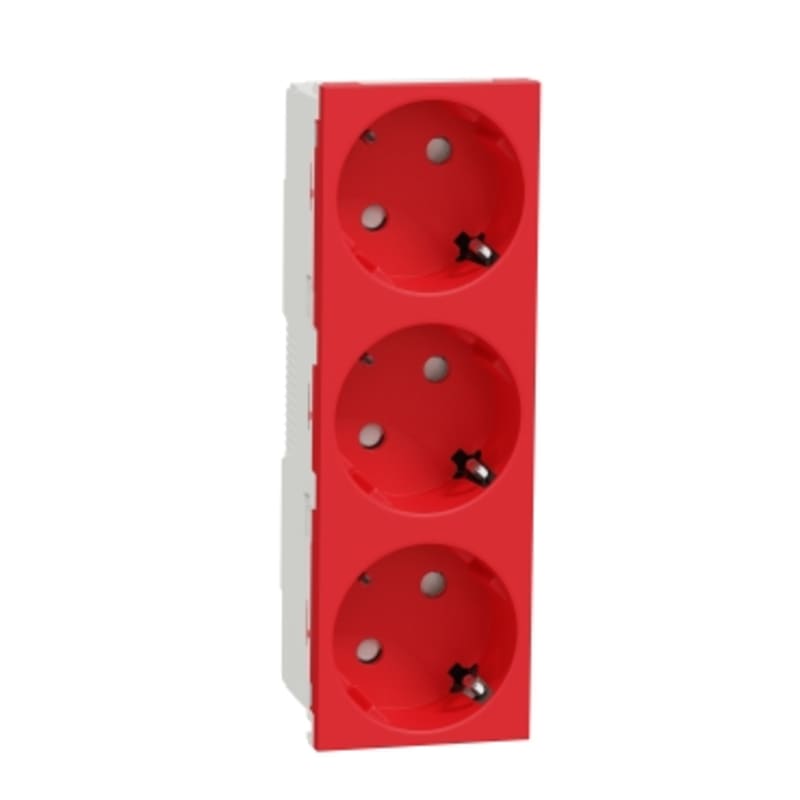

Schneider Electric 3-Way Socket Outlet 2P+E Push-In Clamp Red

Schneider Electric NU307603 is a 3-way flush-mounted socket outlet with 2P+E push-in clamp terminals, finished in red for isolated or clean-power circuit identification. Rated 16 A at 230 V and IP21, it delivers three CEE 7/3 (type F) protective-contact outputs across six modules. Halogen-free thermoplastic housing with IK04 impact strength.

Manufacturer part number (MPN)

NU307603

EAN / GTIN

3606481464149

Sales unit

pcs

Package quantity

10 pcs

Nominal current

16 A

Nominal voltage

230 V

Mounting method

Flush-mounted

Assembly arrangement

Basic element with central cover plate

Colour

Red

Model

Socket outlet with protective contact CEE 7/3 (type F)

Halogen free

Yes

Number of units

3

Lockable

No

With hinged lid

No

Connection type

Push-in clamp

With signal lamp

No

Number of socket outlets

3

Number of phases

1

With enhanced contact protection

Yes

Frequency

50–60 Hz

With on/off switch

No

Protective contact

Yes

Label space/information surface

No

Eject-mechanism

No

Material quality

Thermoplastic

Rotated central insert

No

Overvoltage protection

No

Fault current protection

No

Special power supply

No special power supply

Insulated mounting

No

Material

Plastic

Type of fastening

Snap mounting (engagement)

Imprint/indication

None

Impact strength

IK04

Concurrently switching neutral conductor

No

Transparent

No

Surface finishing

Glossy

With miniature fuse

No

With loop through function

No

Suitable for degree of protection (IP)

IP21

Device width

45 mm

Device height

135 mm

Device depth

39.4 mm

With function lighting

No

With orientation lighting

No

With built-in USB power supply

No

Number of modules (module system)

6

IFTTT support available

No

Number of active contacts (round)

6

Protective earth pin round

No

Min. depth of built-in installation box

40 mm

With Wi-Fi signal repeater

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Metallic colour

No

With built-in bluetooth speaker

No

Socket outlets phase-separated

No

Anti-bacterial treatment

Yes

Country of origin

Spain

HS Code

8536.69
