Shield clamp 5/10MM/LGYE Side-mounted
Pricing
Request a quote
We reply within 24 hours
Product Description

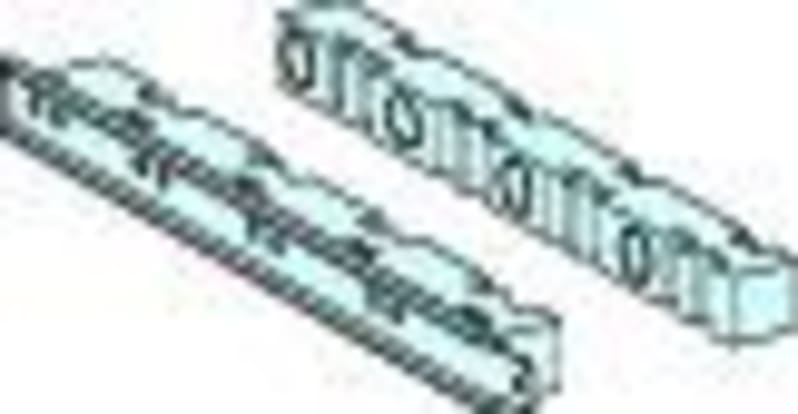

Schneider Electric LVS04661 Shield clamp for vertical side-mounted busbar 5/10mm or Linergy LGYE- PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04661
- EAN / GTIN
- 3606481867117
- Sales unit
- pcs
- Package quantity
- 9 pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Busbar support
- Product name
- Linergy BS
- Range compatibility
- Linergy Linergy LGYE busbar; Linergy Linergy BS busbar; PrismaSeT PrismaSeT P enclosure
- Product compatibility
- Busbar support
- Cubicle-device connection
- Linergy BS lateral busbar - fixed; Linergy LGYE lateral busbar - fixed
- installation description
- Cubicle duct - width 150 mm; Cubicle duct - width 300 mm
- Product weight
- 1.06 kg
- Quantity per set
- Set of 1
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.600 cm
- Package 1 Width
- 6.000 cm
- Package 1 Length
- 37.000 cm
- Package 1 Weight
- 1.032 kg
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 9
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 9.670 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 432
- Package 3 Height
- 100.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 459.824 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of poles
- 4
- Busbar distance
- 75 mm
- Max. rated current
- 4000 A
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481867117
- SAP 1200547014
- Code 82879419
Product Documentation
