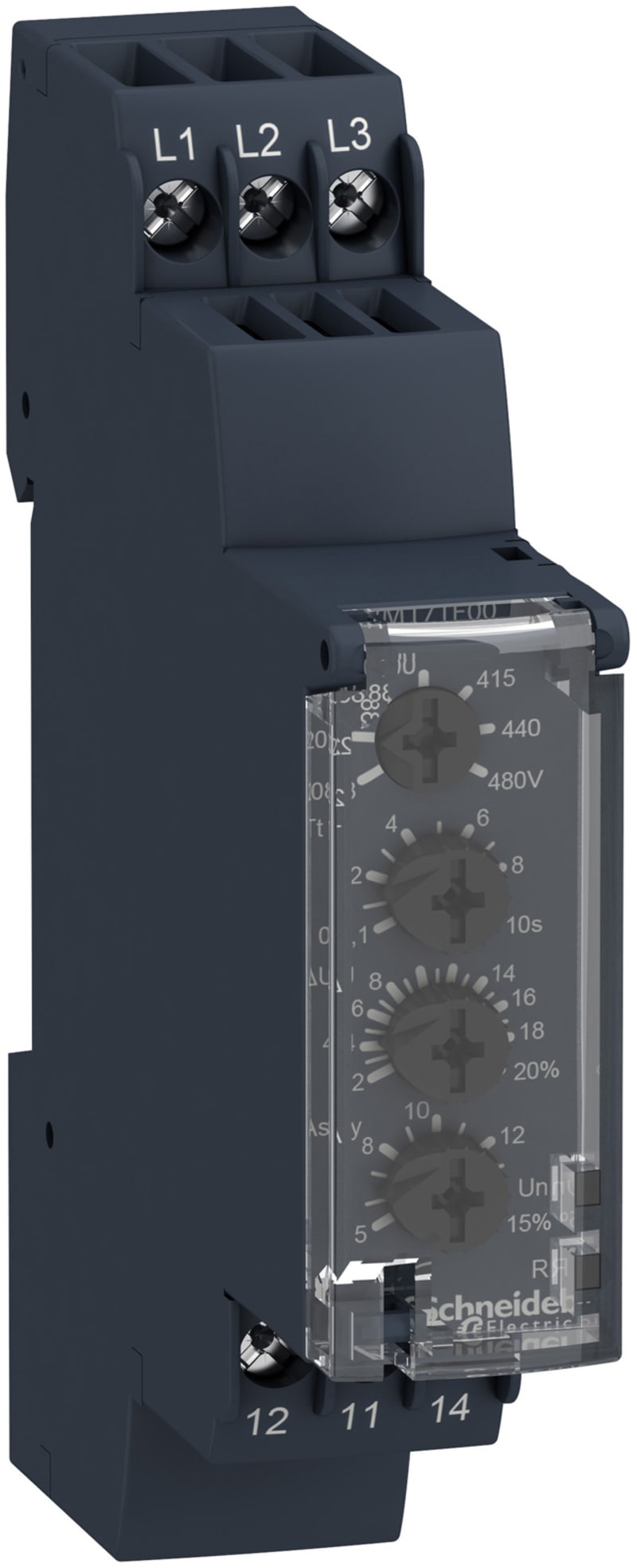

Schneider Electric Modular 3-Phase voltage control relay, 5 A, 1 CO, 208...480 V AC RM17UB310

Schneider Electric RM17UB310 Over- and undervoltage.relay 3-phase 5A.

Manufacturer part number (MPN)

RM17UB310 EAN / GTIN: 3389119405133 HS code: 8536.90 Sales unit: pcs Package quantity: 48 pcs Range of product: Harmony Control Relays Relay type: Voltage control relay Product or component type: 3-phase control relay Relay name: RM17UB3 Product specific application: For 3-phase supply Relay monitored parameters: Overvoltage and undervoltage between phases Control type: Without test button Contacts type and composition: 1 C/O [Us] rated supply voltage: self-powered Supply voltage limits: 183…528 V AC Measurement range: 220...480 V AC Voltage detection threshold: 183 V Threshold adjustment voltage: 2...20 % of Un selected; -2...-17 % in the range 220 V AC; +2...+10 % in the range 480 V AC; -2...-12 % in the range 208 V AC Hysteresis: 2 % Repeat accuracy: +/- 0.5 % for input and measurement circuit; +/- 1 % for time delay Time delay type: Adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault Setting accuracy of time delay: 10 % Reset time: 1500 ms time delay Response time: < 200 ms (in the event of a fault) Power on delay: 650 ms Output contacts: 1 C/O nominal output current: 5 A Maximum switching voltage: 250 V AC/DC Switching capacity in VA: 1250 VA minimum switching current: 10 mA at 5 V DC Maximum switching current: 5 A AC/DC Electrical durability: 100000 cycles Mechanical durability: 30000000 cycles Power consumption in VA: 0…22 VA at 400 V AC 50 Hz Control circuit frequency: 50...60 Hz +/- 10 % Measurement accuracy: +/- 10 % of the full scale value Maximum measuring cycle: 150 ms measurement cycle as true rms value Quality labels: CE Operating rate: <= 360 operations/hour full load Electromagnetic compatibility: Emission standard for industrial environments conforming to IEC 61000-6-4; Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3; Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 Standards: IEC 60255-1 Product certifications: GOST; UL; GL; C-Tick; CSA Directives: 89/336/EEC - electromagnetic compatibility; 73/23/EEC - low voltage directive Ambient air temperature for storage: -40…70 °C; -40…70 °C Ambient air temperature for operation: -20…50 °C Relative humidity: 95 % at 55 °C conforming to IEC 60068-2-30 IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP30 (casing) conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1 Overvoltage category: III conforming to IEC 60664-1 Dielectric test voltage: 2 kV, 1 min AC 50 Hz Insulation resistance: > 500 MOhm at 500 V DC conforming to IEC 60255-5; > 500 MOhm at 500 V DC conforming to IEC 60664-1 [Ui] rated insulation voltage: 400 V conforming to IEC 60664-1 Operating position: Any position without derating Connections - terminals: Screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...11 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...2 x 2.5 mm² (24 AWG...12 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Housing material: Polycarbonate Local signalling: LED (green) for power ON; LED (yellow) for relay ON Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715 Reliability data: B10d = 470000; MTTFd = 502.2 years Width: 17.5 mm; 17.8 mm Height: 90 mm; 88.9 mm Depth: 72 mm; 71.1 mm Product weight: 0.08 kg; 0.08 kg Number of Units in Package 1: 1 Number of Units in Package 2: 48 Country of origin: ID Warranty (in months): 18

HS Code

8536.90

• EAN 3389119405133
• SAP 1000257657
• Code 81144364
