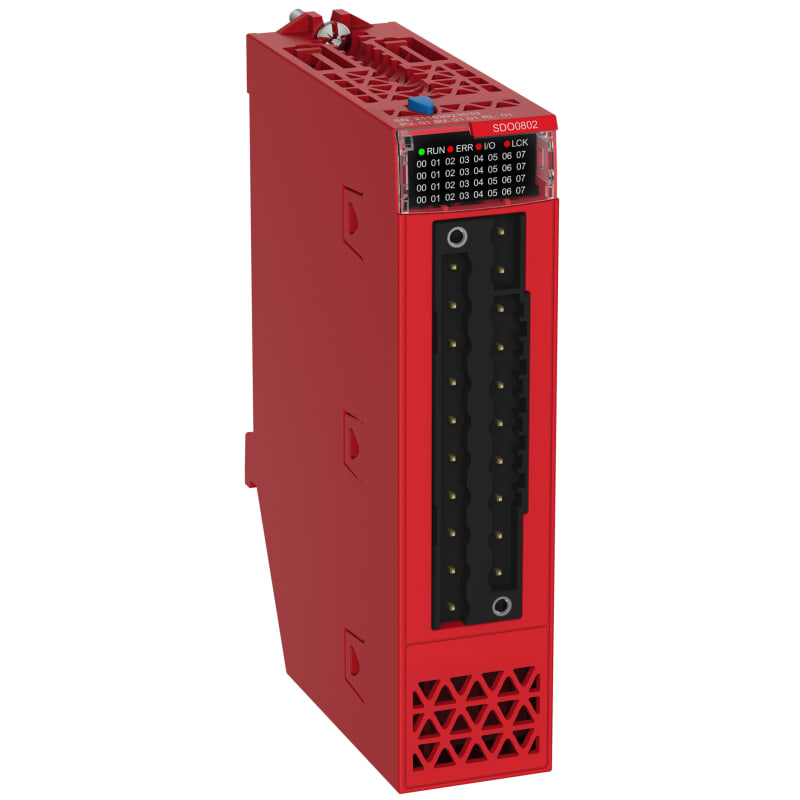

Schneider Electric discrete output module - 8 outputs - solid state - 24 V DC positive - Safety BMXSDO0802

Schneider Electric BMXSDO0802 Modicon X80 - 8 Sorties Transistor Source 24Vdc 500mA, SIL3/Cat 4/Ple.

Manufacturer part number (MPN)

BMXSDO0802

EAN / GTIN

3606481204929

Sales unit

pcs

Package quantity

8 pcs

Range of product

Modicon X80

Product or component type

Discrete output module

Discrete output logic

Positive

Response time on output

1.2 ms

Maximum voltage drop

<1.2 V at state 1

Insulation resistance

> 10 MOhm 500 V DC

Current per channel

0.625 A

Maximum current per module

10 A

Paralleling of outputs

Yes : 2 maximum

Switching frequency

0.5/LI² Hz

Load impedance ohmic

>= 48 Ohm

Reverse polarity protection

Reverse mounted diode

MTBF reliability

383000 H

Protection type

reverse polarity protection; overload protection; overvoltage protection; short-circuit protection

Voltage detection threshold

18 V DC sensor OK

Product weight

0.12 kg

IP degree of protection

IP20

Protective treatment

Conformal coating

Dielectric strength

1500 V AC at 50/60 Hz 1 minute, output/ground; 1500 V AC at 50/60 Hz 1 minute, output/internal logic

Relative humidity

5…95 % at 55 °C without condensation

Environmental characteristic

Gas resistant class Gx; Gas resistant class 3C4; Dust resistant class 3S4; Sand resistant class 3S4; Salt resistant level 2; Mold growth resistant class 3B2; Fungal spore resistant class 3B2

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.500 cm

Package 1 Width

18.000 cm

Package 1 Length

26.000 cm

Package 1 Weight

352.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

8

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.278 kg

Country of origin

FR

Warranty (in months)

18

Power consumption

4.4 W

Voltage type (supply voltage)

DC

Number of digital outputs

8

Digital inputs configurable

No

Digital outputs configurable

Yes

Input current at signal 1

0.65 mA

Type of voltage (input voltage)

DC

Type of digital output

Transistor

Output current

0.5 A

Type of output voltage

DC

Short-circuit protection, outputs available

No

Redundancy

No

Type of electric connection

Plug-in connection

Suitable for safety functions

Yes

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 1G

Explosion safety category for dust

ATEX dust-ex-protection, Cat. 1D

Width

33 mm

Height

100 mm

Depth

150 mm

HS Code

8538.90
