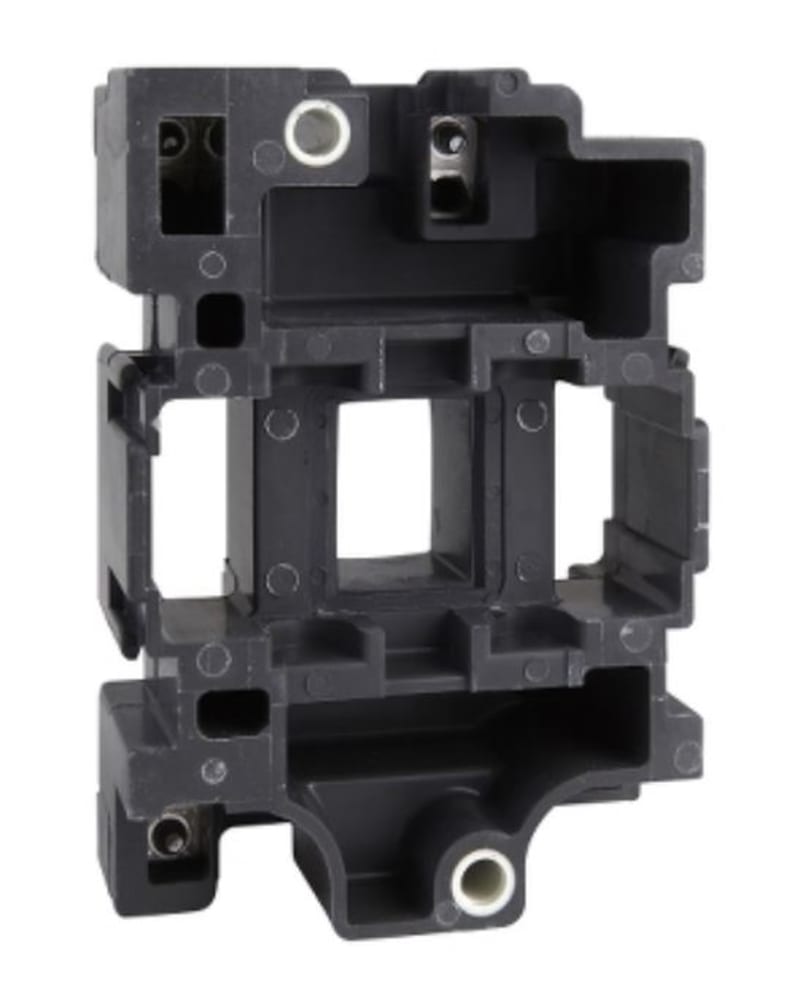

Coil 110V 50/60Hz LC1D40-D95

Schneider Electric LX1D6F7 coil 110V 50/60HZ LC1D40-D95.

Manufacturer part number (MPN)

LX1D6F7

EAN / GTIN

3389110233377

Sales unit

pcs

Package quantity

16 pcs

Voltage

110 V

Frequency

50/60 Hz

Range

TeSys

Product or component type

Contactor coil

Device short name

LX1D6

Control circuit type

AC at 50/60 Hz

[Uc] control circuit voltage

110 V AC 50/60 Hz

Average resistance

26 Ohm at 20 °C

Inductance of closed circuit

1.7 H

Product compatibility

LC1D40; LC1D50; LC1D65...D95

Mechanical durability

4 Mcycles

Maximum operating rate

3600 cyc/h 60 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C); Operational: 0.8...1.1 Uc at 50 Hz (at <55 °C); Operational: 0.85...1.1 Uc at 60 Hz (at <55 °C)

Inrush power in VA

245 VA 60 Hz cos phi 0.75 (at 20 °C); 245 VA 50 Hz cos phi 0.75 (at 20 °C)

Hold-in power consumption in VA

26 VA 60 Hz cos phi 0.3 (at 20 °C); 26 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

6…10 W at 50/60 Hz

Ambient air temperature for operation

-5…60 °C

Product weight

0.28 kg

Warranty (in months)

18

Rated control supply voltage AC 50 Hz

110 V

Rated control supply voltage AC 60 Hz

110 V

Voltage type for actuating

AC

Country of origin

Czechia

HS Code

8505.90
