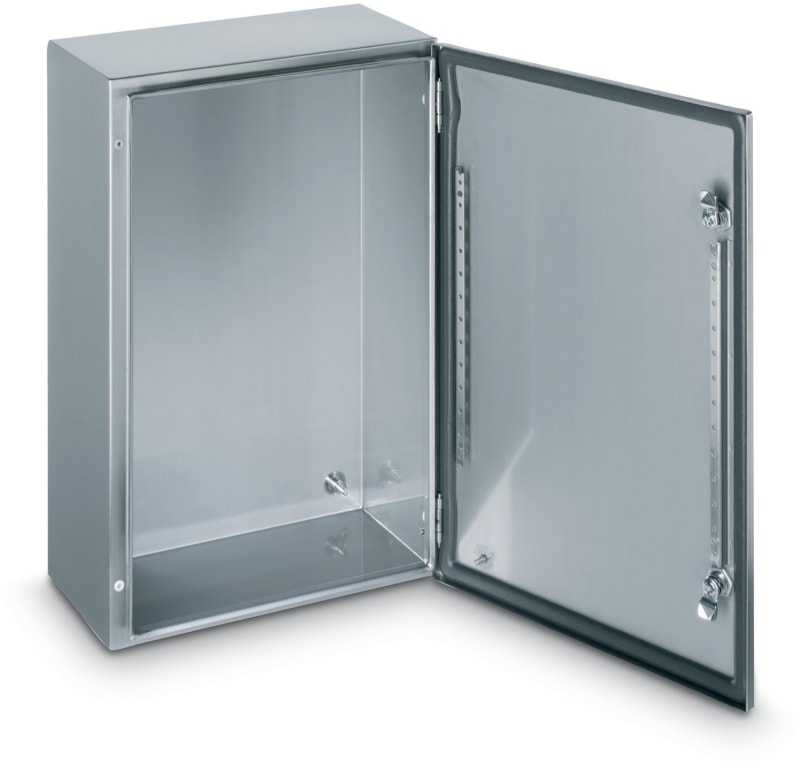

Schneider Electric PanelSet S3X stainless 304L, Scotch Brite® finish, H1200XW800XD300 mm. NSYS3X12830
Part numberNSYS3X12830EAN / GTIN3606480155017HS code9403.20
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3X12830 Cabinet Stainless 304 304 12X8X3.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3X12830
- EAN / GTIN
- 3606480155017
- Sales unit
- pcs
- Range
- Spacial
- Product name
- Spacial S3X
- enclosure type
- Multi-purpose
- category
- Compact enclosure
- nominal height
- 1200 mm
- nominal width
- 800 mm
- nominal depth
- 300 mm
- product installation
- Wall-mounting
- Device composition
- 1 body; 1 reinforcement frame drilled: door; 1 door; 2 lock: door
- Body type
- Single piece body, cross-shaped structure; Gutter shaped front rail
- Door type
- Plain
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 2 points lock, 3 mm double-bar
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- Body and door: stainless steel 304L; Lock: zamak; Hinge: stainless steel
- Surface finish
- Body and door: Scotch-Brite® brushed; Lock: chromium plated
- Product weight
- 43 kg
- Standards
- IEC 62208; UL; CUL
- Product certifications
- UL 508 type A; CAN/CSA 22
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Environmental characteristic
- Corrosive; Specific hygiene
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 32.000 cm
- Package 1 Width
- 81.000 cm
- Package 1 Length
- 123.000 cm
- Package 1 Weight
- 43.000 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 6
- Package 2 Height
- 177.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 269.000 kg
- Country of origin
- BG
- Warranty (in months)
- 18
- Colour
- Stainless steel
- Width
- 800 mm
- Height
- 1200 mm
- Depth
- 300 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Material quality
- Stainless steel 304 (V2A)
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 50 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480155017
- SAP 1000089680
- Code 8840143
Product Documentation
Document preview: Schneider Electric NSYS3X12830 — OEM Product Page
More from Schneider Electric
Schneider Electric

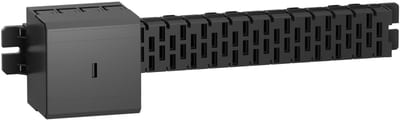

Busbar 4P, 992mm (AK5JB149)
Schneider Electric

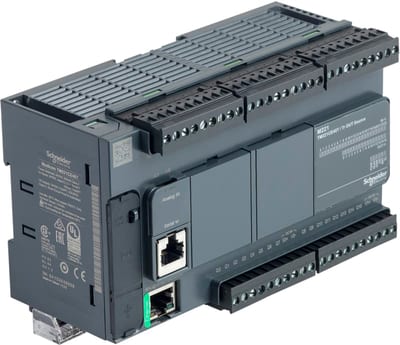

Schneider Electric controller M221 40 IO transistor PNP Ethernet TM221CE40T
Schneider Electric
Schneider Electric Miniature plug-in relay, 12 A, 2 CO, LED, 12 V DC RXM2AB2JD
Schneider Electric

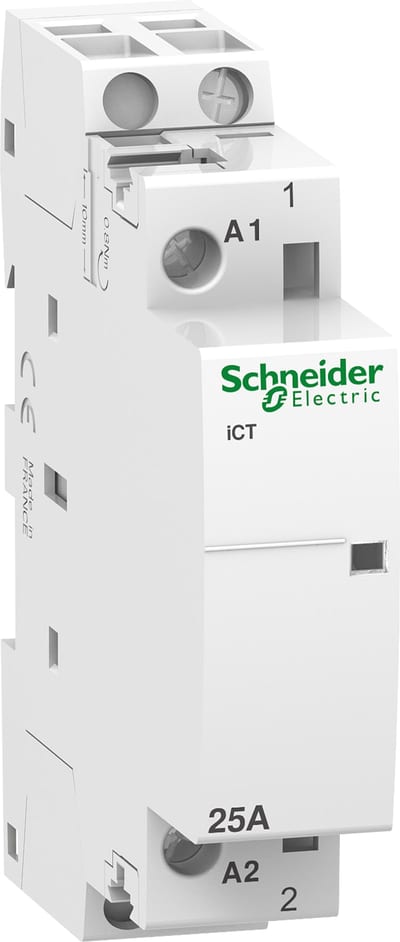

Schneider Electric iCT 25A 1NO 220...240V 60Hz contactor A9C20631
No image
Schneider Electric
USB charger 2 x Type A - Aluminium
NU341830
Schneider Electric

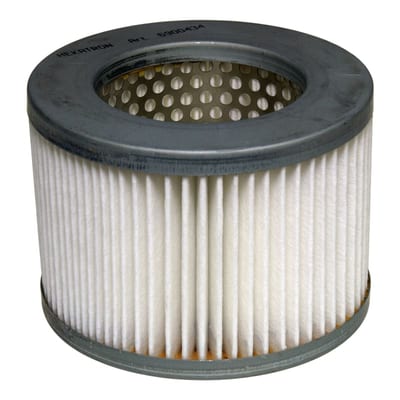

DFU535L aspirasjonsfilter (FFS06432582)
Schneider Electric

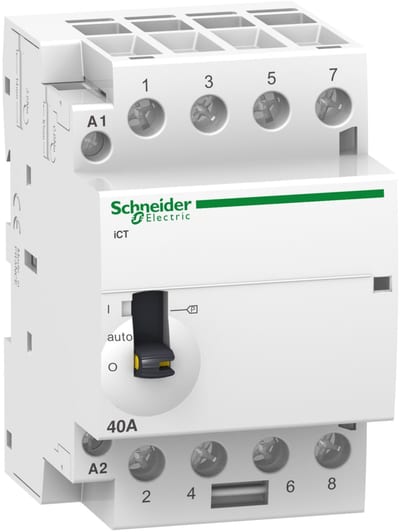

Schneider Electric iCT 40A 4NO 220...240V 50Hz MO contact A9C21844
