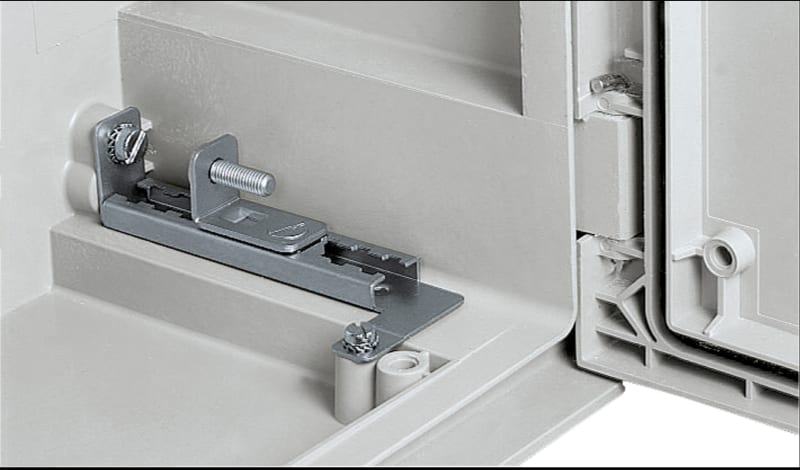

Just.bracket PLM108 (NSYDPLM350)

Schneider Electric NSYDPLM350 Just.bracket PLM108.

Manufacturer part number (MPN)

NSYDPLM350

EAN / GTIN

3606480191862

Sales unit

pcs

category

Mounting accessory

Product or component type

Step slide

Range compatibility

PanelSeT PLM PLM

Application

Multi-purpose

Nominal dimensions of the housing

-

Mounting location

Sides of enclosure

Device composition

4 sliding rails; 4 sliding support; fixing elements

Quantity per set

Set of 1

Material

Galvanised steel

Fixing mode

By fixing element - enclosure boss location

Adjustment

In depth of the plate or other accessories in steps of 12.5 mm

Depth

Maximum depth adjustment : 306 mm; Minimun depth adjustment : 106 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.500 cm

Package 1 Width

9.500 cm

Package 1 Length

32.500 cm

Package 1 Weight

980.000 g

Unit Type of Package 2

PAL

Number of Units in Package 2

5

Package 2 Height

32.500 cm

Package 2 Width

47.500 cm

Package 2 Length

32.500 cm

Package 2 Weight

9.800 kg

Country of origin

ES

Warranty (in months)

18

Model

Mounting bracket

Surface protection

Continuously galvanised

With screw accessories

Yes

HS Code

8538.10

• EAN 3606480191862
• SAP 1000317904
• Code 8823712
