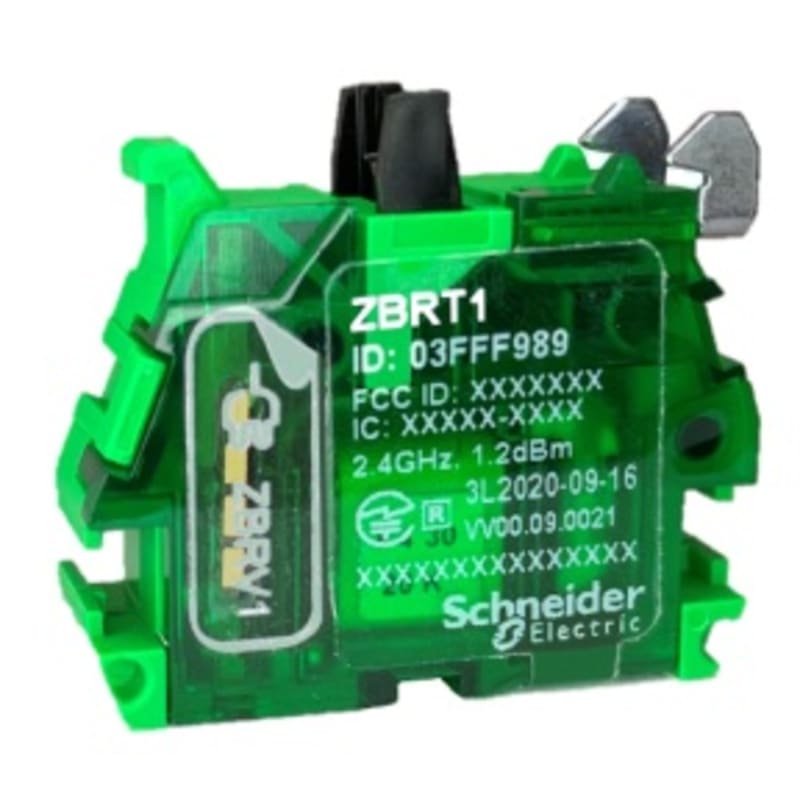

Schneider Electric transmitter wireless batteryless w/o Head ZBRT1

Schneider Electric ZBRT1 Wireless contact element where sender 1 signal at actuation of push.

Manufacturer part number (MPN)

ZBRT1

EAN / GTIN

3606480334726

Sales unit

pcs

Package quantity

21 pcs

Range of product

Harmony XB5

Product or component type

Wireless and batteryless transmitter

Device short name

XB5R

Bezel material

Plastic

Mounting diameter

22 mm

Transmission frequency

2405 MHz

emission class

5M00G7W

Antenna type

Omnidirectional

Max power consumption in W

1 mW

Number of channels

16

Modulation Technique

O-QPSK

Bandwidth

5 MHz

Embedding depth

42 mm

CAD overall height

41.5 mm

CAD overall width

30 mm

CAD overall depth

43 mm

Product weight

0.025 kg

Operating travel

4.3 mm (total travel)

Operating force

10 N C/O changing electrical state

Mechanical robustness

Free fall resistance 1000 mm conforming to IEC 60068-2-32

Standards

CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-1; UL 508

Radio agreement

ANATEL; ARIB T66; FCC; ICASA; RSS

Communication port protocol

Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4

Maximum sensing distance

100 m in free field; 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure; 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna

Acquisition time

2 ms

Response time

< 2 ms

Fixing mode

Fixing nut beneath head: 2…2.4 N.m

Electrical composition code

PW1

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Relative humidity

95 % at -40…70 °C without condensation

IP degree of protection

IP30 (back face) conforming to IEC 60529

IK degree of protection

IK03 conforming to IEC 50102

Mechanical durability

1000000 cycles

Shock resistance

25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27; 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 11…500 Hz) conforming to IEC 60068-2-6; +/- 10 mm (f= 2…11 Hz) conforming to IEC 60068-2-6

Electromagnetic compatibility

Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3

Product certifications

CSA; GOST; CCC; C-Tick; UL; BT 2006/95/EC

Directives

1999/5/EC - R&TTE directive; 2004/108/EC - electromagnetic compatibility

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.2 cm

Package 1 Width

4.5 cm

Package 1 Length

5.3 cm

Package 1 Weight

18 g

Unit Type of Package 2

S01

Number of Units in Package 2

75

Package 2 Height

15 cm

Package 2 Width

15 cm

Package 2 Length

40 cm

Package 2 Weight

1.533 kg

Country of origin

FR

Warranty (in months)

18

Built-in depth

44 mm

Release characteristic

C

Number of poles (total)

3

Number of protected poles

3

Rated current

16 A

Rated voltage

400 V

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

4 kV

Frequency

50–60 Hz

Current limiting class

3

Concurrently switching neutral conductor

No

Pollution degree

2

Additional equipment possible

Yes

Width in number of modular spacings

3

Degree of protection (IP)

IP20

Explosion-proof

No

Flush-mounted installation

Yes

HS Code

8526.92

• EAN 3606480334726
• SAP 1000263851
• Code 8217758
