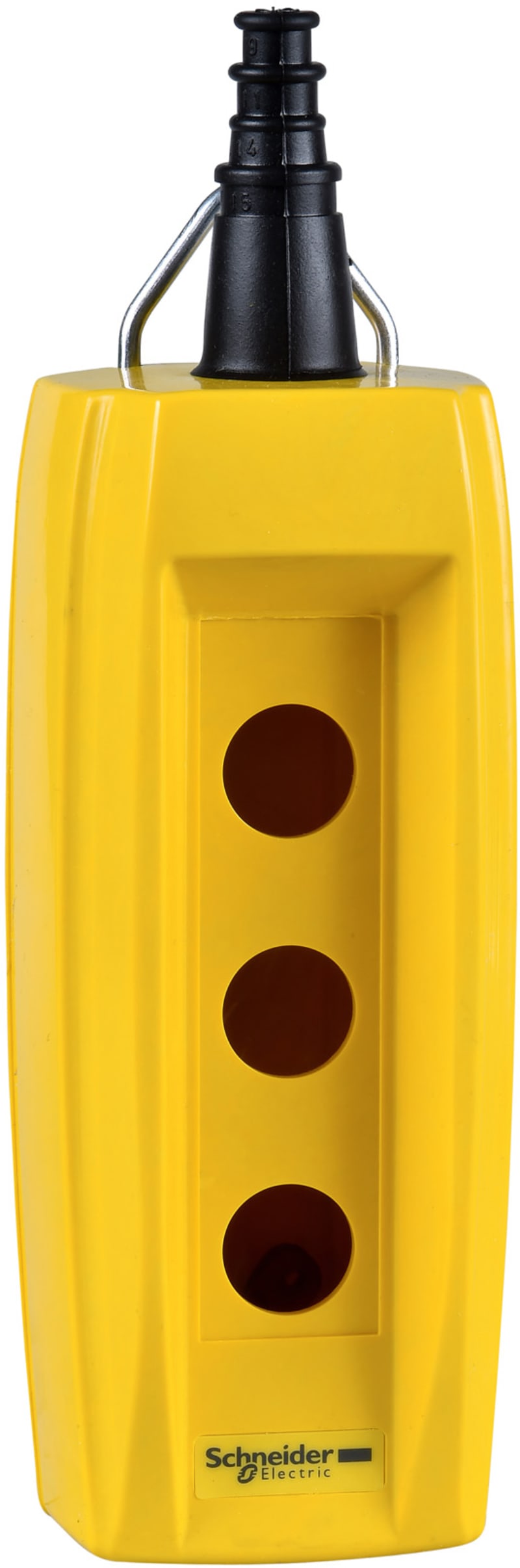

Schneider Electric empty pendant control station XAC-B - 3 vertical openings XACB030

Schneider Electric XACB030 Suspended enclosure empty 3 hole plastic.

Manufacturer part number (MPN)

XACB030

EAN / GTIN

3389110470673

Sales unit

pcs

Package quantity

12 pcs

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACB

Control station type

Double insulated

Enclosure material

Glass reinforced polyester

Electrical circuit type

Control circuit; Power circuit

enclosure type

Empty enclosure

Number of cut-out

3 cut-outs

Control station colour

Yellow

Cable entry

Rubber sleeve with stepped entry 7…13 mm

Guard rail

Without

Vertical operator cut-out centre

40 mm

Standards

CSA C22.2 No 14; IEC 60947-5-1

Product certifications

CSA type 4

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Mechanical durability

1000000 cycles

Product weight

0.76 kg

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

11.500 cm

Package 1 Width

10.700 cm

Package 1 Length

26.500 cm

Package 1 Weight

615.000 g

Unit Type of Package 2

S04

Number of Units in Package 2

12

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

8.158 kg

Country of origin

CZ

Warranty (in months)

18

Suitable for control current circuit

Yes

Suitable for main current circuit

Yes

Number of command positions

3

Colour housing cover

Yellow

Housing material

Plastic

Degree of protection (IP)

IP65

Inner diameter opening

13 mm

HS Code

8538.10

• EAN 3389110470673
• SAP 1000254278
• Code 8221767
